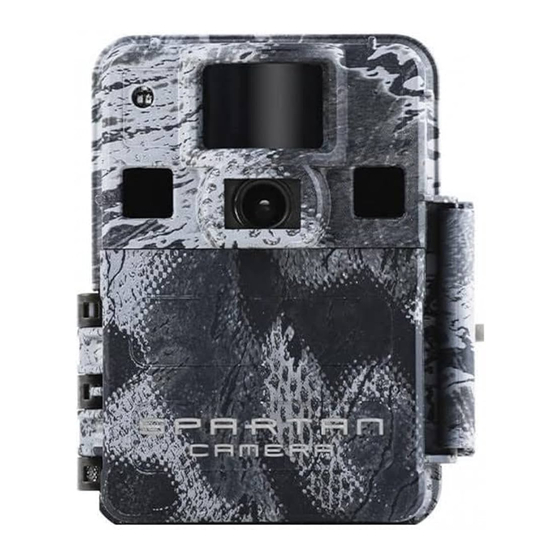

- Page 1 USER MANUAL SPARTAN SR4-BK Eclipse (Black flash) Digital Camera Trap PLEASE READ CAREFULLY BEFORE USING YOUR CAMERA. Product specifications and data are subject to change without notice to improve reliability, function or design.
- Page 2 Package Contents Camera Trap Mounting Strap 1 Adjustable (fixed) Mounting Bracket User Manual Camera Body and Ports...
- Page 4 Buttons and Switch : Menu: Enter the program menu in preview mode, exit from settings : Up / Down: Move among the menu items OK: Confirms a selection On/Off switch Battery tray eject button Display What You Need to Get Started •...
- Page 5 Quick Setup 1. Load batteries. a. Press the Battery Tray Eject button to release the battery tray then pull it out so you can load the batteries. b. Insert each battery and make sure its polarity matches the indicators on the bottom of the battery tray.
- Page 6 Mode Choose *Photo / Video / Photo+Video. Photo mode: choose the image size, Photo Size *5M(original), 8M, or 24M Camera Video Size: 720P, *1080P, 1440P Video Video Length: 5, *10, 15, 30 sec Sound Rec: *On, Off Sensitivity Select High, *Normal, Low, or Off. The sleep time after each trigger.
-
Page 7: Default Information
Set a 6-digit password using this option. (Note: keep a record of this password. If you forget it, you will Password have to return the camera to Spartan Camera with proof of ownership to have the password removed.) Format the microSD card. This will erase all data on the microSD card and cannot be undone. - Page 8 4. Press the (Menu) button to return to the next photo (if you deleted one) or the Home screen (if you deleted all). Note: You can also delete everything on the microSD card by formatting it (System menu). Viewing Videos 1.
-
Page 9: Technical Specifications
Technical Specifications FOV (Field of View) 80° wide angle Flash Type Black Flash (no glow)* Display 2'' IPS Colour LCD (480x360mm) - Front-facing display Memory Card MicroSD, up to 512Gb Image Resolution 5MP / 8MP / 24MP Video Resolution 1440p (2560x1440) / 1080p (1920×1080) / 720p (1280 x 720) Video Length 5s / 10s / 15s / 30s Audio Support... - Page 10 2 years from the original date of purchase under normal use. Spartan Camera will, at its option, repair or replace your camera with the same or comparable model, free of charge (except you must pay for shipping charges set forth below), for a period of (2) two years from the original date of purchase in the event of a defect in materials or workmanship occurring with normal use.
- Page 11 The warranty work will not automatically extend the original warranty period. You have 2 weeks to report any DOA (Dead on Arrival) products so please test product upon receipt. If you have any questions regarding the warranty of Spartan Camera, please email us at support@spartancamera.com.
