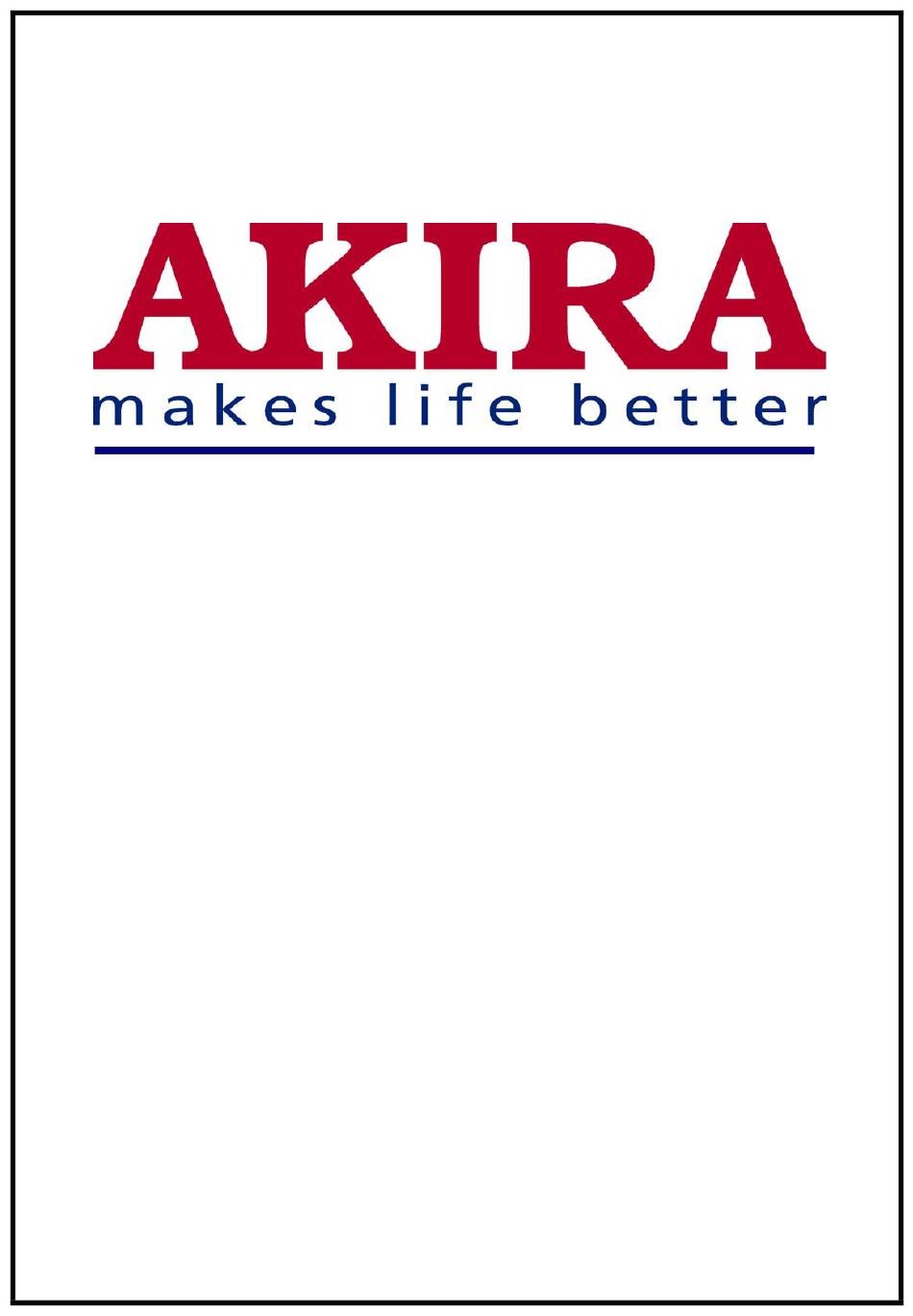

  • Page 1 LCD TV Service Manual...
  • Page 2 -2 - MODEL: LCT-32PBSTP Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 3: Table Of Contents

    APPEARANCE & CONTROL FUNCTION ................10 ALIGNMENT INSTRUCTION ....................14 SOFTWARE UPGRADING.......................26 WORKING PRINCIPAL ANALYSIS ..................27 BLOCK DIAGRAM........................28 IC BLOCK DIAGRAM .......................29 WIRING DIAGRAM........................33 ASSEMBLY LIST ........................34 TROUBLE SHOOTING GUIDE ....................36 APPENDIX ..........................48 CIRCUIT DIAGRAM PARTS LIST Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 4: Safety Precaution

    -4 - IMPORTANT SAFETY PRECAUTION Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 5 -5 - Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 6: Specification

    B/G , D/K , L/L' RF NTSC VIDEO PAL VIDEO SECAM VIDEO NTSC NTSC PLAYBACK 3.58 / 4.43 Brand & Model CMO ,V320B1-L01 Resolution 1366 x 768 Displayable Colour 16.7M Hardness:3H,Haze:40% Anti-reflective coating<2% Surface Treatment Reflection Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 7 8 Watts x 2 NICAM Stereo German A2 Stereo Surround Dual Sound Decoding Audio Mode Option 4 , Live / Pop / Rock / Customer Volume Control 0 to 100 Treble Control -50 to 50 Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 8 Display Aspect Ratio Control Auto / 16:9/14:9/4:3/zoom/ OSD Language OSD with Chinese, English, Russian, Turkish Other Menu Feature OSD background Screensaver Timer On Timer Off Sleep Timer yes 15,30,45,60,90,120 Auto Shutdown When No Signal 5 min Picture Freeze Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 9 Euro 2 Pin Power Plug 3 Pin Power Plug Instruction Manual Warrantee Card Yes , Russian RF Cable S-Video Cable CVBS Cable VGA Cable SCART Cable DVI Cable HDMI Cable Optical Cable Coaxial Cable Wall Mounting Bracket Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 10: Appearance & Control Function

    -10 - & & Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 11 -11 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 12 -12 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 13 -13 - Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 14: Alignment Instruction

    -14 - 1. Test equipment PM5515 (Video signal generator) PM54200(SCART signal generator) VG-848(YUV, VGA and DVI signal generator) K-7253 (VGA signal generator) CA210 (White balancer) 2. The alignment flow chart (see below figure) Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 15 Change SCART signal to RGB signal, check if the image and sound is normal, It sends image format (16:9 and 4:3) to the unit, check the unit auto identify is normal. Select the PIP mode, connect earphone cable, and check if the sound is normal. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 16 Table 1 YUV Signal Format H-frequency(kHz) V-frenquency(Hz) Signal 15.734 59.94 SDTV 480i 31.469 59.94 HDTV 480p 44.955 59.94 HDTV 720p 33.716 59.94 HDTV 1080i 15.625 SDTV 576i 31.25 HDTV 576p 33.75 HDTV 1080i 37.50 HDTV 720p Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 17 56.25 VESA 1024 X 768 48.363 60.004 VESA 1024 X 768 56.476 70.069 VESA 1024 X 768 60.023 75.029 78.75 VESA 1280 X 1024 63.98 60.02 108.00 VESA 1024 X 768 68.667 84.98 94.486 VESA Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 18 Menu Timeout Blank switch enable ShowLogo Auto Program Sort West Europe / East Europe / Cyrillic TT Char Group / Turkish /Greek/Arabic/Hebrew Dynamic Scart Note: the latter 6 items should set according to clients’ require. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 19 HP VOLUME SETTING Volume 1 Volume 25 Volume 50 Volume 75 Volume 100 Scart1 Volume Prescale Scart Prescale FM/AM Prescale Nicam Scart TV Volume Scart AV Volume D/K select HDEV3 Equalizer Bands Spatial Mode Spatial Strength Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 20 CVBS SC-RGB YPBPR D-SUB HDMI Bright Min Bright Middle Bright Max Contrast Min Contrast Middle Contrast Max Sharpness Min Sharpness Middle Sharpness Max Color Min Color Middle Color Max Hue Min Hue Middle Hue Max Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 21 Standard R Offset G Offset B Offset R Gain G Gain B Gain Brightness Contrast Color Temperature Cold R Offset G Offset B Offset R Gain G Gain B Gain Brightness Contrast Color Temperature Warm Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 22 Custom Contrast Brightness Color Sharpness Note: in factory menu states, it can change the factory mode to value of the image and sound, else select the image and sound balanced value in the other states. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 23 6.8.4 edit menu, Color System: Auto, Sound System: DK; 6.8.5 option menu, Default Zoom: Auto, Child Lock: Off, Menu Language: English, Country: UK, WSS: OFF, Blue Screen: On. Note: the 6.8.4 and 6.8.5 items should set according to clients require. Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 24: Software Upgrading

    2. Connection upgrading tools with upgrading port. 3. Dual- click IAPWriter logo, enter the upgrading states (if the PC and the IIC communication trouble, it can prompt. 4. Select the file menu load the software follow as: Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 25 5. Select WRITE DEVICE item of the device menu, till the right screen display “DONE”. 6. T urn off the power , restart the unit. Note: because of the software, it may be no-stabilization, the software can auto download and write. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 26 -26 - NOTE: Do not shut the power off or turn the TV set on during the FLASH write. Otherwise it may lead to no way for flash to rewrite. Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 27: Working Principal Analysis

    (CS4344 audio DA transfer chip), then N581 switched to N801 (MPS3410 sound processing and volume control). 3. TELETEXT function This unit adopt main decode IC N101(SVP-EX52) of Trident company, it has TELETEXT decode function, after decoded, the teletext information in OSD display. Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 28: Block Diagram

    -28 - Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 29: Ic Block Diagram

    2. Sub-channel and SCART video signal decode IC (TVP5147) Sub-tuner TUNER202 decode video, AV, S-VIDEO, SCART1 video, SCART2 video and Y/C signal, after matching impedance, enter decoding IC N601 (TVP5147), so the PIP image of sub-channel can selecting arbitrary video signal. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 30 22: Video input for SCART1 7, 80: Y/C signal input for SCART2 16: video signal input of sub-tuner 8: Y signal input of AV or S-Video 1: C signal input of S-Video 9, 2, 18: YUV signal input of compatible DTV Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 31 3. Reception HDMI signal (SiI9011) After differential signal of HDMI send to N405 (SiI9011), then it transform 24bit for video digital signal, and sent to IC N101 (SVP-EX52) processing. SiI9011 internal block diagram as follow: Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 32 244, 231: EX52_Y and EX52_C input 243: main tuner video signal input 242: video signal input for Scart1 226, 248, 233: Scart1 RGB input 246, 232, 225: EX52_YUV input 236, 237: video output for SCART2 Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 33: Wiring Diagram

    -33 - Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 34: Assembly List

    (353-43440-10) Audio processing board 667-L32W25-15 TUNER201 JS-6B2/122A2-A2 (590-40512-00) TUNER202 JS-6B2/121A2 (590-40511-00) N801 MSP3410G (353-34100-80) N803 TPA3008D2 (353-30080-10) N805 NJW1109M (353-11092-20) Video processing board 667-L27W18-40 IR reception board 667-L32W18-09 (LC-32W18S) Button board 667-L27W18-05 (LC-32W18S) 667-L32W25-05 (LC-32W25S) Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 35 Definition of dark spot: It is identified as a dark spot if it is dark in the state of white field and its dark size remains unchanged Definition of two neighboring points: Defects of a group of picture elements (RB,RG,GB). Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 36 There appear streaks or Check if interfered by other equipment and if interfered light color on the screen possibly by the equipment like transmitting antenna, non-professional radio station and cellular phone. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 37 Check if the TV set can receive input signal. The signal is not There appears an indication – correctly identified and VGA format is beyond the specified “outside the receivable scope) scope. Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 38 “auto” key on the remote control so as to enable the bottom of the picture. liquid crystal TV set to recheck the signal and then to display correct picture signal Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 39: Trouble Shooting Guide

    -39 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 40 -40 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 41 -41 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 42 -42 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 43 -43 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 44 -44 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 45 -45 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 46 -46 - Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 47 -47 - Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 48: Appendix

    -48 - APPENDIX Model No.: LCT-32PBSTP.doc Version: 1.0...

  • Page 64: Parts List

    AV INTERFACE BOARD ( LEFT ） 808-1C860-AF0B 808-10812-AF0 POWER CARD COVER DECORATION COVER ( LEFT RIGHT ） 808-10859-AF0 808-10863-AF0 SPEAKERS CONNECTING BOARD BACK CABINETCOVER ( LEFT ） 808-10864-AF0 BACK CABINET COVER ( RIGHT ） 808-10865-AF0 Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 65 POLY FOAM ( RIGHT TOP EPE) 863-81275-00A POLY FOAM ( LEFT BOTTOM EPE) 863-81276-00A POLY FOAM ( RIGHT BOTTOM EPE) 868-20037-02 FIBREWASHER φ8Xφ3.2X0.8RED 868-20109-00 WASHER 870-10288-00 PANEL CONNECTORS ( LEFT RIGHT ) 870-10289-00 POWER BRACKET 870-10410-00 WALL BRACKET Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 66 SPEAKER INSTALLATION GUIDE 605-L32K53-00 WALL BRACKET I/M 665-D0002-156 RFΦ9.5(m)-Φ9.5(m) 780-G18W0-1C1 FRONT CABINET 880-10813-B1 FRONT LOGO 881-62875-163 BACK PLATE LABEL (LCT-32PBSTP,AKIRA 881-80847-00 WRRANTY CARD 886-31845-050W CARTON BOX (LCT-32PBSTP,SKIRA) 301-IL27W18-02G RC-I02-0GREMOTE CONTROL UNIT ASS'Y (AKIRA) 852-34008-81 SCREW B(+) M4X8-D.Zn 855-B0016-00 EXPANSION BOLT M8X72...
  • Page 67 SCREW SJ2824 ST4X12FT-DZn 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 364-33101-00 3-PINS CONNECTORS TJC3-03A Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 68 SMD RESISTOR FTR0603682JR 455-12268-H0 SMD RESISTOR FTR0603682JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12347-H0 SMD RESISTOR FTR0603473JR 455-12347-H0 SMD RESISTOR FTR0603473JR 455-12347-H0 SMD RESISTOR FTR0603473JR 455-12347-H0 SMD RESISTOR FTR0603473JR 456-2210K-B1 SMD CAPACITOR 06032R102K250BA 456-2210K-B1 SMD CAPACITOR 06032R102K250BA Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 69 467-1C151-H0 CARBON RESISTOR 1/6W-510Ω-J 467-1C230-H0 CARBON RESISTOR 1/6W-3K-J 782-L32U18-0900 IR RECEIVE PCB 329-61805-00 CRYSTAL HC-49U 18.432MHZ 340-00003-00 DIODE IN4001 352-78090-90 IC TA78L09 364-11212-00 EARPHONE JACK ST-112 364-3A205-00 21 CONNECTORS HJ-2105W 十 2-PINS CONNECTORS TJC3-12A 364-3B101-00 Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 70 *TUNER JS-6B2/122A2-A2 TV BOARD SHUTTER ASS'Y (TOP ） 615-10511-00B TV BOARD SHUTTER ASS'Y (BOTTOM ） 615-10512-00A 665-N0120-00 COAXIAL CABLE CSYV-2B-120 665-N0260-00 *COAXIAL CABLE CSYV-2B-260 666-12301-00 FERRITE BEAD TY23X13.5X6 666-13501-0G FERRITE BEAD 3.5X1X6 808-70397-00 INSULATION SPACER Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 71 SMD RESISTOR FTR0603000XR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12082-H0 SMD RESISTOR FTR0603820JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 72 SMD RESISTOR FTR0603682JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR 455-12310-H0 SMD RESISTOR FTR0603103JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 73 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA 456-2410M-C1 SMD CAPACITOR 06032E104M250BA Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 74 SMD CAPACITOR 08052E105Z250BA 456-2510R-C2 SMD CAPACITOR 08052E105Z250BA 456-2510R-C2 SMD CAPACITOR 08052E105Z250BA 456-3018H-11 SMD CAPACITOR 0603CG180J500BA 456-3018H-11 SMD CAPACITOR 0603CG180J500BA 456-3056H-11 SMD CAPACITOR 0603CG560J500BA 456-3056H-11 SMD CAPACITOR 0603CG560J500BA 456-3056H-11 SMD CAPACITOR 0603CG560J500BA 456-3122H-11 SMD CAPACITOR 0603CG221J500BA Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 75 ELECTROLYTIC CAP CD110-16V-10uF-M 464-6D610-M02 ELECTROLYTIC CAP CD110-16V-10uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 76 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 782-L27W18-150A MIXING BOARD PCB 329-61003-00 CRYSTAL HC-49/US 10.000MHZ 329-61402-00 CRYSTAL HC-49/US 14.31818MHZ 329-61402-00 CRYSTAL HC-49/US 14.31818MHZ 329-62806-00 CRYSTAL HC-49uS 28.322MHz Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 77 (3-PINS) LEAD WITH HOUSING 655-61202-144 (6-PINS) LEAD WITH HOUSING 804-20427-00 DIGITAL INTERFACE SPACE PLATE 808-70397-00 ISOLATION SHEET 340-00289-00 SMD DIODE BAV99LT1 340-00289-00 SMD DIODE BAV99LT1 340-00289-00 SMD DIODE BAV99LT1 340-00296-00 SMD DIODE SK34 340-00296-00 SMD DIODE SK34 Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 78 SMD IC AS1117M-3.3 353-11170-20 SMD IC AS1117M-3.3 353-11170-20 SMD IC AS1117M-3.3 353-12130-10 SMD ICCM1213-08MS 353-15010-50 SMD ICAP1501-50K5 353-15010-50 SMD ICAP1501-50K5 353-24020-60 SMD IC 24C02N-10SI27 353-24210-50 SMD IC 24LC21A/SN SMD IC24LC32A/SN 353-24320-50 烧 353-26323-10 SMD IC K4D2632838F-QC50 Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 79 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 80 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 81 SMD RESISTOR NCA4R150JR 455-10015-H9 SMD RESISTOR NCA4R150JR 455-10015-H9 SMD RESISTOR NCA4R150JR 455-10015-H9 SMD RESISTOR NCA4R150JR 455-10015-H9 SMD RESISTOR NCA4R150JR 455-10015-H9 SMD RESISTOR NCA4R150JR 455-10015-H9 SMD RESISTOR NCA4R150JR 455-10033-H9 SMD RESISTOR NCA4R330JR 455-10033-H9 SMD RESISTOR NCA4R330JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 82 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 83 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12000-H0 SMD RESISTOR FTR0603000XR 455-12010-H0 SMD RESISTOR FTR0603100JR 455-12015-H0 SMD RESISTOR FTR0603150JR 455-12022-H0 SMD RESISTOR FTR0603220JR 455-12022-H0 SMD RESISTOR FTR0603220JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 84 SMD RESISTOR FTR0603680JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR 455-12075-H0 SMD RESISTOR FTR0603750JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 85 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR 455-12110-H0 SMD RESISTOR FTR0603101JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 86 SMD RESISTOR FTR0603222JR 455-12222-H0 SMD RESISTOR FTR0603222JR 455-12222-H0 SMD RESISTOR FTR0603222JR 455-12222-H0 SMD RESISTOR FTR0603222JR 455-12233-H0 SMD RESISTOR FTR0603332JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 87 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR 455-12247-H0 SMD RESISTOR FTR0603472JR Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 88 SMD RESISTOR FTR0603154JR 455-12427-H0 SMD RESISTOR FTR0603274JR 455-12427-H0 SMD RESISTOR FTR0603274JR 455-12510-H0 SMD RESISTOR FTR0603105JR 455-12510-H0 SMD RESISTOR FTR0603105JR 455-22000-H0 SMD RESISTOR RC11-1/8W-0-J 455-22000-H0 SMD RESISTOR RC11-1/8W-0-J 455-22000-H0 SMD RESISTOR RC11-1/8W-0-J 455-22000-H0 SMD RESISTOR RC11-1/8W-0-J Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 89 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 90 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 91 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 92 SMD CAPACITOR 06032E474Z250BA 456-2447R-C1 SMD CAPACITOR 06032E474Z250BA 456-2510R-C2 SMD CAPACITOR 08052E105Z250BA 456-2510R-C2 SMD CAPACITOR 08052E105Z250BA 456-3015H-11 SMD CAPACITOR 0603CG150J500BA 456-3015H-11 SMD CAPACITOR 0603CG150J500BA 456-3018H-11 SMD CAPACITOR 0603CG180J500BA 456-3018H-11 SMD CAPACITOR 0603CG180J500BA 456-3020H-11 SMD CAPACITOR C1608CH1H200JT Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 93 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA 456-3210H-11 SMD CAPACITOR 0603CG102J500BA Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 94 SMD INDUCTANCE SLF12575T-470M2R7 477-40212-00 SMD INDUCTANCE SLF12575T-470M2R7 666-12010-00 SMD FERRITE BEAD GB2012D151T 666-12010-00 SMD FERRITE BEAD GB2012D151T 666-12010-00 SMD FERRITE BEAD GB2012D151T 666-12010-00 SMD FERRITE BEAD GB2012D151T 666-12010-00 SMD FERRITE BEAD GB2012D151T 666-12010-00 SMD FERRITE BEAD GB2012D151T Model No.: LCT-32PBSTP.doc Version: 1.0...
  • Page 95 SMD FERRITE BEAD STBL3216-190PT 666-13204-00 SMD FERRITE BEAD STBL3216-190PT 666-13206-00 SMD FERRITE BEAD STPB3216-310PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 666-13207-00 SMD FERRITE BEAD STPB3216-380PT 782-L37W25-6900 DSP BOARD PCB Model No.: LCT-32PBSTP.doc Version: 1.0...
