- Page 1 INSTALLATION AND OPERATION MANUAL WPBT Bluetooth Audio Receiver...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION READ these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 3: Introduction & Contents
Bluetooth control Software well as a 3.5mm auxiliary input for wired devices. WPBT Wiring The WPBT can be programmed using WP-BREAKOUT Accessory free downloadable Bluetooth Control WP-BREAKOUT Wiring software to modify the broadcast name, PIN number and various Dimensions security features. -
Page 4: Block Diagram
• Rear panel • Balanced audio output. Stereo or mono mode • USB-C programming connector • RS485 Comms Port BLOCK DIAGRAM Bluetooth LEFT+ LEFT- 3.5mm MONO Bluetooth Aux Input RIGHT+ RIGHT- RS485-A RS485-B Bluetooth Control Software POWER WPBT INSTALLATION AND OPERATION MANUAL... -

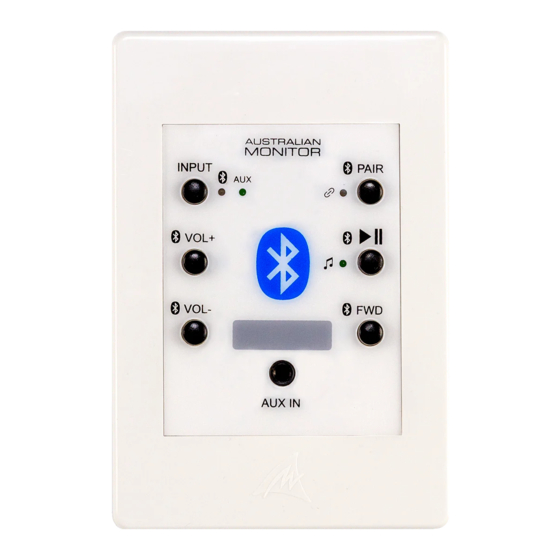

Page 5: Front Panel
USB-C connector. Mono Press until the LED starts flashing which is outputted on both LEFT and RIGHT. indicates pairing mode entered. When the device pairs to the WPBT the RS485 PAIR LED will stay on. Unused in standalone operation. -
Page 6: Default Settings
2. Connect the PC to the WPBT using a USB-C cable (not supplied) Note: 5V power will be supplied via the USB to the WPBT for programming. It does NOT require the +15V to 24VDC input power. 3. Select the WPBT device from the connection window 4. - Page 7 WPBT WIRING STEREO MODE MONO MODE INSTALLATION AND OPERATION MANUAL WPBT...
- Page 8 The WP-BREAKOUT is an optional accessory box to easily provide power and break out the audio from up to two WPBT wall panels. +24V DC is provided to the wall panels and the wall panel balanced audio is converted into unbalanced audio for connection into any audio system.
- Page 9 DIMENSIONS 82mm 2.5mm 10mm 24.7mm 23.6mm INSTALLATION AND OPERATION MANUAL WPBT...
-
Page 10: Specifications
SPECIFICATIONS WPBT Comments AUDIO INPUT CONNECTORS 3.5mm Front Auxiliary Input OUTPUT CONNECTORS 3.81mm Euroblock Balanced OUTPUT SENSITIVITY 1Vrms FREQUENCY RESPONSE 20Hz-20kHz ±0.5db THD + N < 0.1% 20Hz-20kHz, 20Hz BW, Unity Gain Max Output, 1kHz, 20kHz BW, > 80dBA A-Weighted... - Page 11 NOTES INSTALLATION AND OPERATION MANUAL WPBT...
- Page 12 ENGINEERED BY AUSTRALIAN MONITOR Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au ABN 86 003 231 187...
