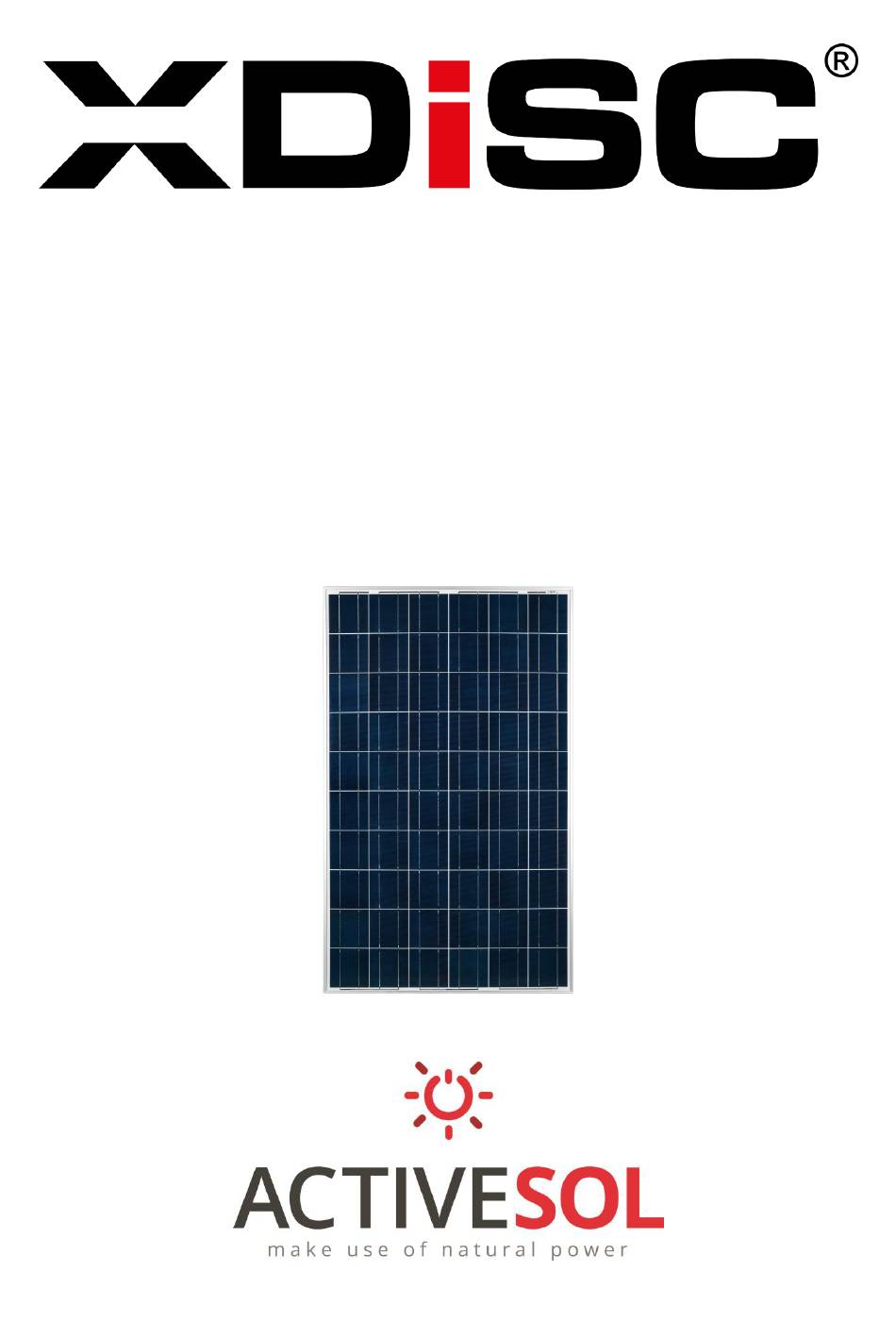

- Page 1 MOUNTING INSTRUCTION PHOTOVOLTAIC MODULES Type: ASOL-250P-WSR...
-
Page 2: Table Of Contents
MODULE TILT ANGLE ......................................6 MOUNTING OF THE MODULES ..................................7 Clips location ......................................7 Mounting with screws .................................... 9 MAINTENANCE OF PHOTOVOLTAIC MODULES ASOL-250P-WSR ..................... 9 Periodic cleaning of the module ............................... 9 Visual inspection ...................................... 9 Connection and wiring controls............................... 10... -
Page 3: Introduction
INTRODUCTION Before installation, operation and maintenance, be sure to read these instructions and use the PV module safely. All applicable local codes and the national electrical code should be followed. Failure to observe the following instructions may result in death or personal injury and property damage. FOR INSTALLATION PERSONNEL Qualified persons familiar with DC and AC circuits should perform the solar module installation. -
Page 4: Application
APPLICATION ASOL-250P-WSR modules are designed to provide high-power output for roof mounted/building integrated photovoltaic systems as well as in-grid systems. The modules are assigned to the Application class A (in accordance with IEC 61730). The modules thus fulfil the requirements of Protection class II. -
Page 5: Instructions On Cabling
Install the maximum number of series for the ASOL-250P-WSR series modules so that the system voltage is less than 1000 V. XDISC S.A. recommends to connect less than twenty modules in series to keep safe voltage rate in the system. -
Page 6: Instructions For Grounding
INSTRUCTIONS FOR GROUNDING The modules have to be grounded. Please observe the corresponding national regulations and standards. Due to ASOL-250P-WSR modules are framed and do not have specified point of grounding it is necessary to ground all installation system. Use one of the fastening holes in the construction to ground the module. -
Page 7: Mounting Of The Modules
MOUNTING OF THE MODULES CLIPS LOCATION XDISC S.A. recommends using typical aluminium clips designed for framed modules. ASOL-250P-WSR module mounting configurations must meet the following requirements: Clearance of 7mm or more between modules is required to allow for thermal expansion. - Page 8 The mounting system design must provide adequate support for module, to prevent damage from occurring when the module is subjected to site wind loads. All mounting structures must provide a flat plane for modules to be mounted, and must not cause any twist or stress to be placed on the module.
-
Page 9: Mounting With Screws
MOUNTING WITH SCREWS In case of mounting modules directly to the construction XDISC S.A. advises to use M8 screws. MAINTENANCE OF PHOTOVOLTAIC MODULES ASOL-250P-WSR Photovoltaic modules require very little maintenance with respect to their configuration, except for parts and the interior circuits of the cells and the connection welding insulated by layers of protective material. -
Page 10: Connection And Wiring Controls
Use appropriate safety equipment (insulated tools, insulating gloves, etc.), when touching them. Cover the front surface of the Module by an opaque or other material when repairing. The ASOL-250P-WSR modules when exposed to sunlight generate high voltage and are dangerous. MANUFACTURER XDISC S.A.
