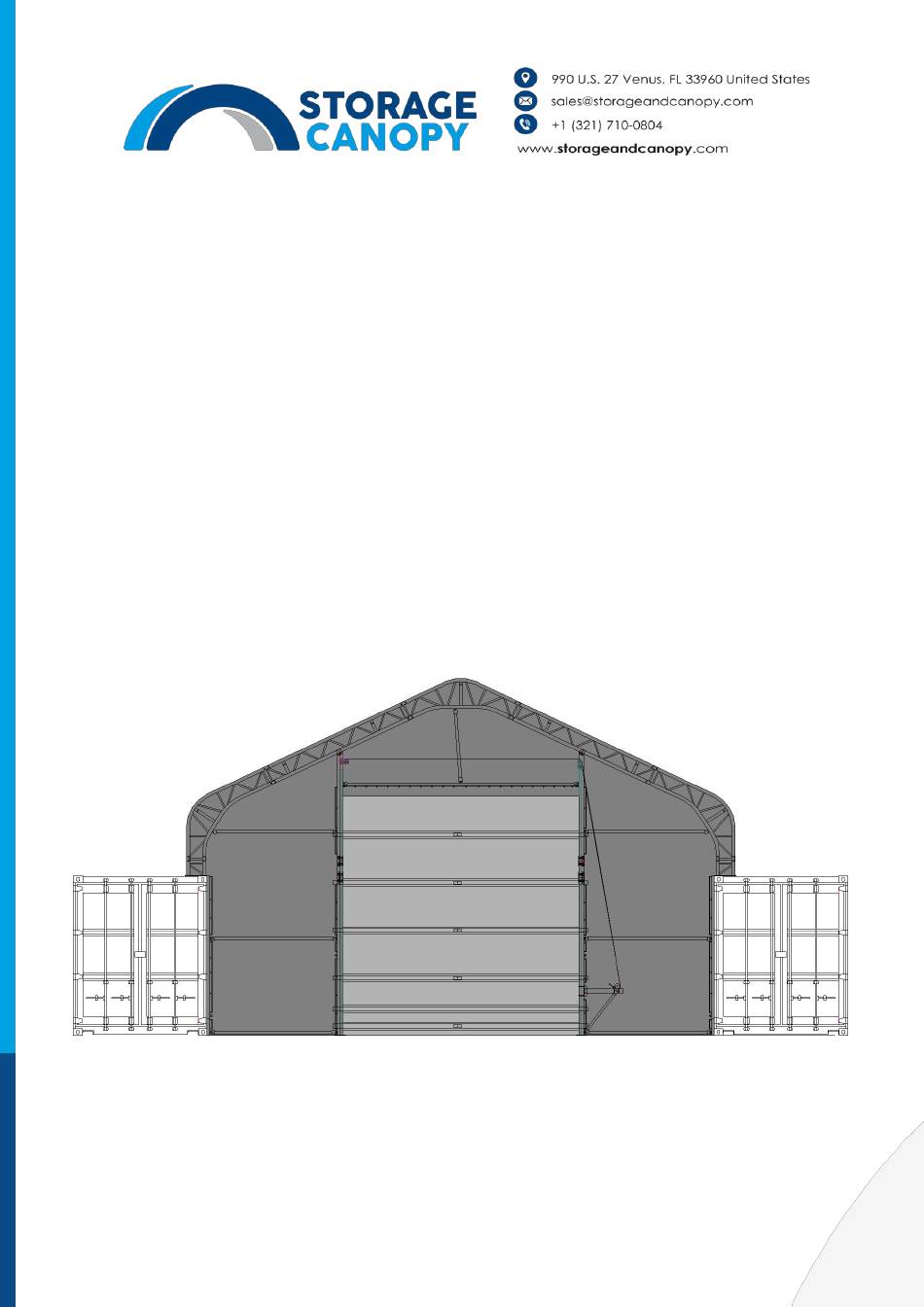

- Page 1 Universal End Wall Model# EWC3340DTPR Assembly Instructions End Wall for Double Truss Shipping Container Roof 33’x40’x12’...
- Page 2 Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment...
- Page 3 YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter.
- Page 4 ANCHORING THE CONTAINER Make sure you have: Welder. Cement. Four 3” x 3” x 6 feet ¼” Square steel angle As shown in the diagram 1, make a 3 ft deep hole right beside one of the front and opposite rear corners of the container, in which the 6ft square steel will be installed.
- Page 5 Highly Recommended 1. All container canopy covers need to be removed during windstorm of 60 mph, leaving frame assembled. Customer responsibility. 2. All container canopy covers need to be removed before a snowstorm of 1-2 inches (for single truss Shipping container roofs) and 3-4 inches (for double truss Shipping container roofs), leaving the frame assembled.
- Page 6 33'x40'x12' End Wall Parts List Part Qty/ Description Code left lower post welded with door track right lower post welded with door track middle post welded with door track (extension for high cube container) left upper post welded with door track and pully right upper post welded with door track and pully...
- Page 7 bolt M10x70 for post bolt M10x30 for connection plate bolt M8x70 for rail bolt M6x40 for door bracing tube No.35, No.36 expansion bolt cable tie rope for front cover, 4 bundles 1 pack steel wire, 1 bundle 1 bundle steel wire clamp door winch front cover...
-
Page 8: Frame Installation
FRAME INSTALLATION Installation for End Wall Basing on 40ft standard container (8’6’’ high) Winch door size: 14’1’’W x 13’3’’H... - Page 9 Installation for End Wall Basing on 40ft high cube container (9’6’’ high) Winch door size: 14’1’’W x 14’3’’H...
- Page 10 WINCH DOOR INSTALLATION...
- Page 11 1. Install the front door frame and door winch bracket 2. Fix the winch to the bracket. Make sure the winch handle faces the outside. Refer to Figure 1.
- Page 12 3. Take out the door curtain cloth and lay it on the ground. Pay attention to the direction. The side with pipe pockets faces inward. 4. Connect the door bracing tube (2pcs/set) with M6x40 bolt. 5. Thread the door bracing tube into the pocket from top to bottom. Pay attention to the bottom bracing tube.
- Page 13 6. Put the steel wire rope through the pulley on the door frame as shown in Figure 3, so that the steel wire rope is located on the inner side of the door frame and on the same plane as the pulley, and then the steel wire rope sags naturally.
- Page 14 9. Adjust the length of the steel wire rope to be equal on both sides.Fix the wire rope fold to the hole in the winch. Refer to Figure 4.
- Page 15 10. Turn the winch clockwise to lift the door curtain cloth and bracing tubes to a position about 40-50cm away from the cross beam. Lace the eyelets on the cloth to cross beam with a rope. Refer to Figure 5.
- Page 16 11. Now the winch door installation is completed.Turn the winch clockwise to raise and counterclockwise to lower the door. The steel wire rope shall be evenly wound on the winch so that the door can rise and fall smoothly.
-
Page 17: Cover Installation
COVER INSTALLATION Installation for End Wall Basing on 40ft standard container (8’6’’ high) Winch door size: 14’1’’W x 13’3’’H Note: Need to put the bottom bracing tube(No.36) into the second last row of pocket. - Page 18 Installation for End Wall Basing on 40ft high cube container (2.9m, 9’6’’ high) Winch door size: 14’1’’W x 14’3’’H Note: Need to put the bottom bracing tube(No.36) into the bottom pocket. Now your assembly is completed.
