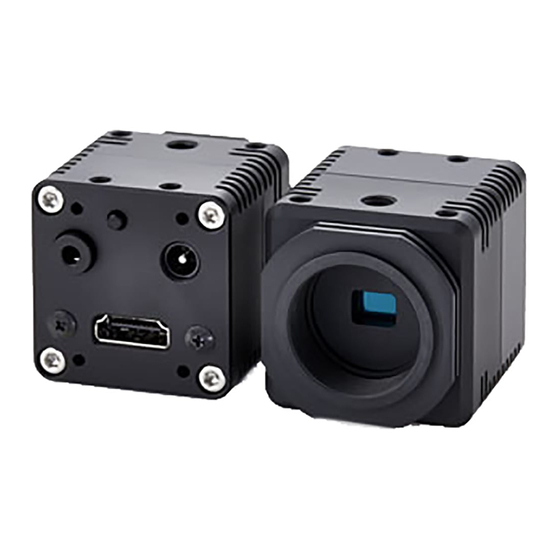

- Page 1 No.16S058-01 16:9 Format 720p Color Camera STC-HD133 Series STC-HD93 Series Users guide STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 1/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 2 No.16S058-01 Note. All specifications are subject to change without prior notice. Revisions Date Changes Note 2016/06/24 New document 2017/07/03 Revised Change the name of company STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 2/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
-
Page 3: Table Of Contents
No.16S058-01 Table of Contents 1. Introduction .................... 4 2. The requirement equipment to use the camera ........4 3. The camera settings setup method ............6 3.1. The camera setting with the push button ......................6 3.2. The camera setting with the remote controller ....................7 3.2.1. -
Page 4: Introduction
No.16S058-01 1. Introduction This document describes for way to use the following cameras. STC-HD133 series [DVI output] STC-HD133DV (C mount Cased type) STC-HD133DV-B (C mount Board type) STC-HD133DV-CS (CS mount Cased type) STC-HD133DV-BCS (CS mount Board type) [SDI output] STC-HD133SDI (C mount Cased type) STC-HD133SDI-B (C mount Board type) - Page 5 No.16S058-01 C. The cable for the image C-1.STC-HD133DV, HD93DV /-B/-CS/-BCS models With HDIM input port on the monitor: HDMI – HDMI cable With DVI input port on the monitor: HDMI – DVI cable C-2.STC-HD133SDI, HD93SDI /-B/-CS/-BCS models With HD-SDI input port on the monitor: BNC cable D.
-
Page 6: The Camera Settings Setup Method
No.16S058-01 3. The camera settings setup method This camera has below three ways to setup the camera settings: A. The camera setting with the push button B. The camera setting with the remote controller (Option, separate accessories) C. The camera setting with the communication (Option, separate accessories) Two different type of the remote controller can use for the board type cameras (STC-HD**DV-B) 3.1. -
Page 7: The Camera Setting With The Remote Controller
No.16S058-01 3.2. The camera setting with the remote controller The remote controller (RC-HD133) is the separate accessary. 3.2.1. The camera setting by the remote controller connects to 3.5mm stereo pin jack A. It is necessary to assign the function for each button by the communication software. Please check the default functions at “E. -
Page 8: The Camera Setting By Sm06B-Srss-Tb (Jst) Connector On The Board Type Camera
No.16S058-01 3.2.2. The camera setting by SM06B-SRSS-TB (JST) connector on the board type camera A. It is necessary to assign the function for each button by the communication software. Please check the default functions at “E. The remote controller function”. B. -
Page 9: The Menu On The Screen (Osd) With The Remote Controller
No.16S058-01 3.2.3. The menu on the screen (OSD) with the remote controller A. Page 1 PAGE 1 2 3 4 5 6 GAIN AUTO 065 SHUTTER AUTO 065 GAMMA PRESET OFFSET CONTRAST SHARPNESS H04 V06 CORING03 MIRROR 1) ALC Selects enable or disable for the auto light compensation. (Default: ON) a) ON Enables the auto light compensation. - Page 10 No.16S058-01 4) GAMMA Sets the gamma (Default: PRESET(0.70)) The gamma setting selects from PRESET(0.70), 0.30, 0.45, 0.50, 0.60, 0.70, 0.80, 0.90 and 1.00. 5) OFFSET Sets the offset of the image. (Default: 0) 6) CONTRAST Sets the contrast of the image. (Default: 128) 7) SHARPNESS Sets the sharpness (edge enhancement) of the image.
- Page 11 No.16S058-01 B. Page 2 PAGE 1 2 3 4 5 6 AUTO G000 1) WB Selects the white balance mode from below two modes. (Default: AUOT G0000) a) AUTO The auto white balance. The Green gain is adjustable by Gxxx. b) MANUAL (Default: R199, G000 and B215) The manual white balance with “Rxx”...
- Page 12 No.16S058-01 C. Page 3 PAGE 1 2 3 4 5 6 GRAPHICS LINE LINE1 POS 0000 SIZE 0000 COLOR BLACK POS 0000 SIZE 0000 COLOR BLACK LINE2 POS 0000 SIZE 0000 COLOR BLACK POS 0000 SIZE 0000 COLOR BLACK 1) GRAPHICS Selects enable or disable for the line makers and the shadow mask display.
- Page 13 No.16S058-01 D. Page 4 PAGE 1 2 3 4 5 6 GRAPHICS SHADOW GRADE 000 T 0000 B 720 L 0000 R 1280 CIRCLE RADIUS 000 SIZE 000 POS 0960 POS 0540 COLOR BLACK 1) GRAPHICS Selects enable or disable for the line makers and the shadow mask display. (Default: ON) This function in the page3 and in the page4 is the same function.
- Page 14 No.16S058-01 LINE2 V POS LINE1 V POS Vertical line1 Vertical line2 SHADOW H T LINE1 H POS Horizontal line1 SHADOW H B LINE2 H POS Horizontal line2 Shadow mask SHADOW V L SHADOW V R STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 14/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 15 No.16S058-01 4) CIRCLE Selects enable or disable for the circle maker display (Default: ON) a) ON The circle mask can be display. It is necessary to set “ON” at GRAPHICS to display the line makers. b) OFF The circle maker does not display. 5) Circle maker settings Sets the radius, the size (thickness), the center position and the color for the circle maker.
- Page 16 No.16S058-01 E. Page 5 PAGE 1 2 3 4 5 6 59.94 OSD SIZE LARGE PROFILES PRESET00 PATTERNS 1) FPS Sets the frame rate for the video output from below three frame rates. (Default: 59.94) a) 59.94 The image format and the frame rate is 720p 59.94Hz. b) 50 The image format and the frame rate is 720p 50Hz.
- Page 17 No.16S058-01 3) PROFILE Sets the Preset data from below twenty eight preset data. (Default: PROFILE00 (Standard image)) a) PROFILE00 The standard image is output. b) PROFILE01 The high contrast image is output. c) PROFILE02 to PROFILE27 The negative image from below twenty six negative images, is output. PROFILE02 PROFILE03 PROFILE04...
- Page 18 No.16S058-01 4) PATTERNS Selects the output signal from below four output signals. (Default: OFF (Image out)) a) OFF The video is output from the camera. b) GRAY The gray scale test pattern is output from the camera. c) COLOR The color test pattern is output from the camera. d) GRAY+COLOR The color pattern (Top) + the gray scale test pattern (Bottom) is output from the camera.
- Page 19 No.16S058-01 F. Page 6 PAGE 1 2 3 4 5 6 EEPROM SAVE 1) EEPROM The camera settings in the page1 to page5 can be saved into the camera as the camera default settings. a) SAVE When executing the “SAVE”, the confirmation message “ARE YOU OK?” is displayed. When executing again, the settings save into the camera.
-
Page 20: The Control Software Users Guide
No.16S058-01 3.3. The control software users guide 3.3.1. The basic operation for HD133Ctrl software A. Menu function a. File 1) Save As [DSP’s EEPROM] The EEPROM data for the current DSP preset saves to the file in the PC. The settings in “DSP:” started windows are saved to the file. The current DSP preset can check at “uCOM:Other”... - Page 21 No.16S058-01 b. COMM 1) Port Setting Set up the communication port. a) Port Please select the COM port that connects to the communication port of the camera. Please check the COM port number at the device manager. b) Baud rate The baud rate of the PC selects automatically to match to the baud rate of the camera.
- Page 22 No.16S058-01 c. Mode 1) Adjustment This adjustment mode is changeable the camera DSP and uCOM settings and checking the OSD operation. Please refer “3.3.2 The function descriptions for HD133Ctrl software” for the function details. STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 22/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 23 No.16S058-01 2) OneShot The Oneshot mode can copy the camera settings from the camera to another camera. The all DSP settings and some uCOM settings (0x000 to 0x1FF) can copy to another camera. The pixel blemish correction data and the individual adjustment setting cannot copy to another camera.
- Page 24 No.16S058-01 b) Way to load the camera settings from the file Select “Open setting file folder” under “File” in the menu. Then select the camera setting file. Select “Write EEPROM” button to load the camera settings from the file. The below message is appeared when the camera settings load are finished. Then select “OK” button.
- Page 25 No.16S058-01 3) Demo The standard functions are changeable in the demo mode. Please use the adjustment mode if the more details settings are necessary to change. 4) Language HD133Ctrl software display language is changeable from Japanese, English, German, Spanish and Portuguese d.
- Page 26 No.16S058-01 B. Button descriptions 1) Read All The all current DSP settings and uCOM settings read out from the camera. 2) DSP->EEPROM The DSP settings for the current DSP preset save to the EEPROM. The overwrite settings are displayed in the list. Please check then save the settings. 3) EEPROM->DSP The DSP settings for the current DSP preset load from the EEPROM.
-
Page 27: The Function Descriptions For Hd133Ctrl Software
No.16S058-01 3.3.2. The function descriptions for HD133Ctrl software A. DSP: Shutter/Gain The shutter and gain settings are changeable in this window. 1) ALC The ALC (Auto light control) mode is selectable from OFF and ON. a) OFF (Fixed exposure / Fixed gain) The exposure time is adjustable by the exposure time setting. - Page 28 No.16S058-01 5) Exposure control The exposure control method is selectable from the fixed exposure and the auto exposure. This control method is valid when “ON” selecting at ALC only. a) Fixed exposure The exposure time is adjustable by the exposure time setting. b) AEE The exposure time adjusts automatically to meet the ALC target level.
- Page 29 No.16S058-01 12) AGC threshold When the difference between the current brightness and the ALC target level becomes greater than “AGC threshold + AGC tolerance”, the auto gain control starts. 13) AGC speed Please set the maximum amount of the gain change for the AGC gain control. When sets “0”, there is no limit.
- Page 30 No.16S058-01 2) Push to set white balance Please select “Manual white balance mode” before use this function. The white balance mode changes to the auto white balance to adjust the white balance after select this function. a) OFF The white balance mode is selected white balance mode at white balance mode. b) ON The white balance mode changes to the auto white balance to adjust the white balance after select “ON”.
- Page 31 No.16S058-01 C. DSP: Gamma The gamma settings are changeable in this window. The gamma settings are changeable for each DSP preset. 1) Gamma mode The gamma mode is selectable from the preset or the manual. a) Preset The gamma setting is select from the preset gamma. b) Manual Please adjust the manual gamma control potions with checking the visualized gamma curve in the software.
- Page 32 No.16S058-01 D. DSP: Chroma The chroma settings are changeable in this window. The chroma settings are changeable for each DSP preset. 1) Color saturation The color saturation is adjustable by B-Y gain and R-Y gain. 2) Color hue The color hue is adjustable by B-Y hue and R-Y hue. 3) High luminance chroma suppress Sometimes the false color is appeared in the high brightness part of the image.
- Page 33 No.16S058-01 E. DSP: Aperture The aperture (edge enhancement) settings are changeable in this window. The aperture (edge enhancement) settings are changeable for each DSP preset. 1) Front aperture The aperture (edge enhancement) process is done for each Red, Green and Blue of the RGB image before Bayer conversion.
- Page 34 No.16S058-01 F. DSP: Maker The line maker, the shadow mask and the circle maker are adjustable in this window. The line maker, the shadow mask and the circle maker are changeable for each DSP preset. 1) Maker Enable or disable is selectable for the line makers, the shadow mask and the circle maker. a) Disable The line maker, the shadow mask and the circle maker are disabled.
- Page 35 No.16S058-01 5) Horizontal line maker thickness, Horizontal line maker 2 thickness The thickness of two horizontal lines are adjustable individually. 6) Vertical line maker color, Vertical line maker 2 color The color of two vertical lines are selectable individually. 7) Vertical line maker position, Vertical line maker 2 position The position of two vertical lines are adjustable individually.
- Page 36 No.16S058-01 15) Circle maker center position (horizontal), (vertical) The center position of the circle maker is adjustable. 16) Circle maker radius The radius of the circle maker is adjustable. 17) Circle maker thickness The thickness of the circle maker is adjustable. STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 36/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 37 No.16S058-01 G. DSP: Pseudo The picture mode including the pseudo color setting is changeable in this window. The picture mode is selectable for each DSP preset. 1) Picture mode The normal image or the pseudo color image is selectable for the image output from the camera. At the factory default, the DSP preset 02 to 27 have the pseudo color image output.
- Page 38 No.16S058-01 H. DSP: Other The horizontal flip setting, the contrast setting and RGB offset setting are changeable in this window. 1) Horizontal flip The normal image or the horizontal flip image is selectable for the output image. a) OFF The normal image is output from the camera. b) ON The horizontal flip image is output from the camera.
- Page 39 No.16S058-01 I. uCOM: Push Button The push button function is assignable in this window. The push button function is valid for all DSP presets. 1) Push button activation Select enable or disable for the push button on the camera and the remote controller. a) Enable: The push button on the camera and the remote controller are enable.
- Page 40 No.16S058-01 2) The remote controller Please use one of below remote controller. a) The remote controller connects to 3.5mm stereo pin jack The remote controller circuit diagram 1.8K 3.3K 4.7K SW-A SW-B SW-C SW-D SW-E SW-F The example remote controller SW-A SW-B SW-D...
- Page 41 No.16S058-01 b) The remote controller connects to SM06B-SRSS-TB (JST) connector on the board type camera The remote controller circuit diagram SW11 SW12 SW13 ROW1 ROW2 ROW3 SW21 SW22 SW23 COLUMN1 COLUMN2 COLUMN3 SW31 SW32 SW33 The example remote controller SW-11 SW-12 SW-13 SW-21...
- Page 42 No.16S058-01 3) The button function while the menu is displaying Please assign the button function while the menu is displaying, from below function. a) Page (-) operation (change to one previous page) b) Page (+) operation (change to one next page) c) Cursor moves down d) Cursor moves up e) Cursor moves right...
- Page 43 No.16S058-01 J. uCOM: UserColor The user defined color that is selectable for the pseudo color mode, is defined in this window. The user defined color is valid for all DSP presets. Please adjust Red, Green and Blue to define the User defined color. STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 43/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 44 No.16S058-01 K. uCOM: BlemishPixel The pixel blemish correction is usable in this window. The pixel blemish correction function is valid for all DSP presets. The maximum 64 pixel blemish can be correct. It is necessary to select “Auto Detect” button after shading the camera to correct the pixel blemish (mainly white pixel blemish).
- Page 45 No.16S058-01 L. uCOM: Other DSP preset, OSD menu setting, the frame rate of the image selection, the test pattern selection and the UART settings are changeable in this window. 1) DSP preset selection The camera has 28 DPS presets. The settings in “DSP:” started window can be change for each DSP preset. 2) OSD menu OSD menu setting.
- Page 46 No.16S058-01 M. uCOM: ReadOnly The version information for the firmware and FPGA can be check. STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 46/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 47 No.16S058-01 N. OSD: Command Test The OSD function can be check. STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 47/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 48 No.16S058-01 O. Field Table The all settings (EEPROM / Register) can be check by the list. STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 48/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
- Page 49 No.16S058-01 9F, Ebina Prime Tower 9-50, Chuo 2 chome Ebina-city, Kanagawa 243-0432 Japan TEL 81-46-236-6660 FAX 81-46-236-6661 URL http://www.sentech.co.jp/ STC-HD133 Series (STC-HD133DV / STC-HD133SDI) / 49/49 STC-HD93 Series (STC-HD93DV / STC-HD93SDI) Users guide...
