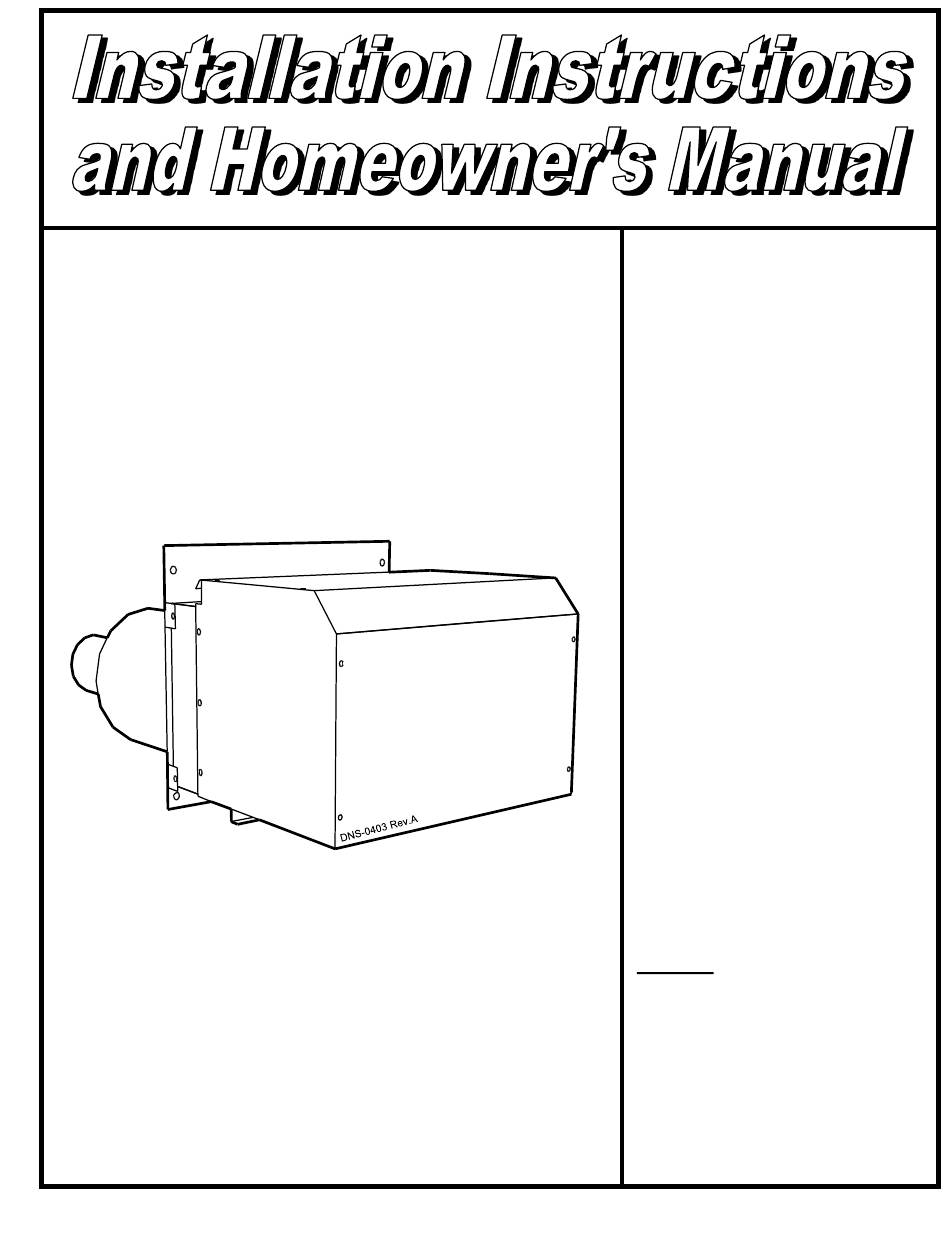

Dettson SMH-1-DE Installation Instructions And Homeowner's Manual

Sidewall venter
Hide thumbs

Advertisement

Quick Links

Download this manual
SIDEWALL VENTER
Save these instructions for future reference.
Printed in Canada
Printed on 100% recycled paper
Models :
SMH-1-DE
SMH-3-DE
SMH-4-DE
SMH-5-DE
SMH-6-DE
SMH-1-BR
SMH-4-BR
Caution: Do not tamper with
the unit or its controls.
Call a qualified service
technician.
Manufactured by:
DETTSON
Industries Dettson Inc.
Sherbrooke, Quebec – Canada
www.dettson.ca
2015-07-29
X40010 Rev. K

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMH-1-DE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dettson SMH-1-DE

Summary of Contents for Dettson SMH-1-DE

  • Page 1 Caution: Do not tamper with the unit or its controls. Call a qualified service technician. Manufactured by: DETTSON Industries Dettson Inc. Sherbrooke, Quebec – Canada Save these instructions for future reference. www.dettson.ca Printed in Canada 2015-07-29 Printed on 100% recycled paper...

  • Page 3: Part 1 Installation

    PART 1 INSTALLATION 1.1) DANGER, WARNING AND CAUTION NOTICE TO THE INSTALLER The words DANGER, WARNING and CAUTION are used to identify levels of seriousness of certain hazards. The minimum measured length of vent pipe is 30 inches It is important that you understand their meaning. You with the draft-regulator located 18 inches from the unit will find those words in the manual as follows: outlet.
  • Page 4 1.2) INSTALLATION  The vent terminal shall not be less than 6 feet from another combustion appliance air intake; This unit must be installed by a qualified, professional  The bottom of the vent termination shall not be installer in accordance with these instructions and CSA installed less than 1 foot above any surface where B139 section 4.3.
  • Page 5 Reducer Package Burner MODEL pipe ( " ) (USGPH) ( " ) number 0.65 to 0.92 SWV-1M-2S SMH-1-DE Beckett or Riello AM(i)-076 to 110 AM(i)-120 to 140 1.00 to1.20 SWV-2M-2S SMH-4-DE Beckett or Riello AME-15 to 25 0.65 to 0.85...
  • Page 6 1.4.1) Preparation & Requirements 1.4.4) Connection to the junction box Find a location on an outside wall that meets all the The only two non-electrical steps to perform, as far as conditions stated in section 1.1. Consult Figure 2 for the installation is concerned, are the installation of the the main dimensions of the system components.
  • Page 7 “Thick wall” (20 inch) installation supplied by the manufacturer must use 16 gauge wire 1.7) approved for 105 C (221 F), enclosed in a certified protective conduit such as B-X, in accordance with the If this venting unit is to be installed on a wall that is colour codes specified in Figures 5A to 5M.

  • Page 8: Part 2 Operation

    PART 2 OPERATION 2.1) START-UP & ADJUSTMENTS 2.2.1) Ignition test For the start-up of your heating unit, please refer to the The installer must verify if the ignition of the burner is instruction manual supplied with it. The start-up of a smooth when the heating unit operation is interrupted system using a power venter is exactly the same as a by means of the thermostat, limit control or the power...

  • Page 9: Part 3 Maintenance

    PART 3 MAINTENANCE 3.1) MAINTENANCE 3.1.3) Pressure switch The pressure switch must operate freely. Ensure that The power venter must be inspected bi-annually by a the thermostat is on and the oil burner is running. qualified technician. The points of inspection are listed Block the outlet of the vent-hood and check if the below.
  • Page 10 FIGURE 1 SMH system - General arrangement DNS-0225 Rev.A FIGURE 2 Main system dimensions DNS-0226 Rev.A...
  • Page 11 FIGURE 3 Location of the SMH system on the wall DNS-0227 Rev.A FIGURE 4A Installation on a COMBUSTIBLE wall DNS-0228 Rev.A FIGURE 4B Installation on a NON-COMBUSTIBLE wall DNS-0229 Rev.A...
  • Page 12 FIGURE 5A AMI, AMT-IM and OLS 2 speeds, Beckett or Riello DNS-0230 Rev.C FIGURE 5B AMT-SM and OLS 2 speeds, Beckett DNS-0397 Rev.C...
  • Page 13 FIGURE 5C AMI and HE 1 speed, Beckett DNS-0231 Rev.C FIGURE 5D AMI and HE 1 speed, Riello DNS-0232 Rev.C...
  • Page 14 FIGURE 5E AMT-SM and OSR 2 speeds, Riello DNS-0407 Rev.C...
  • Page 15 FIGURE 5F AMP and OMB, Riello...
  • Page 16 FIGURE 5G AMP and OMB, Beckett DNS-0622 Rev.A...
  • Page 17 FIGURE 5H LO-1MQH, LO-2M, FBR-1, LO-1M3M, MBP, MBP-F, MBP-2, CCC and MBP-U DNS-0239 Rev.B FIGURE 5I BRF and BFF DNS-0238 Rev. B...
  • Page 18 FIGURE 5J HMT, HML, HMI and HMD with triple aquastat, Beckett or Riello FIGURE 5J DNS-0233 Rev.D FIGURE 5K HMR, HML, HMT, HMI and HMD with double aquastat, Beckett DNS-0234 Rev. D...
  • Page 19 FIGURE 5L Water heater, CMO32, CMO50, 30RB, 32E2, 50E2, IB-30, IB32-R and IB50-O, Beckett DNS-0240 Rev.C FIGURE 5M AME and HME, Beckett DNS-0235 Rev. B...
  • Page 20 PARTS LIST Model : SMH DNS-0385 Rev. D ITEM DESCRIPTION PARTS COMMENTS Blower housing ass'y B01391-01 For SMH-1 and SMH-3 Blower housing ass'y B01391-02 For SMH-4, SMH-5 and SMH-6 Outlet blower insulation B00732-02 Inlet blower insulation B00732-01 Motor ass'y, SMH-1 and SMH-3 B01231-01 Includes motor, blower wheel Motor ass'y, SMH-4, SMH-5 and SMH-6...

This manual is also suitable for:

Smh-3-deSmh-4-deSmh-5-deSmh-6-deSmh-1-brSmh-4-br
