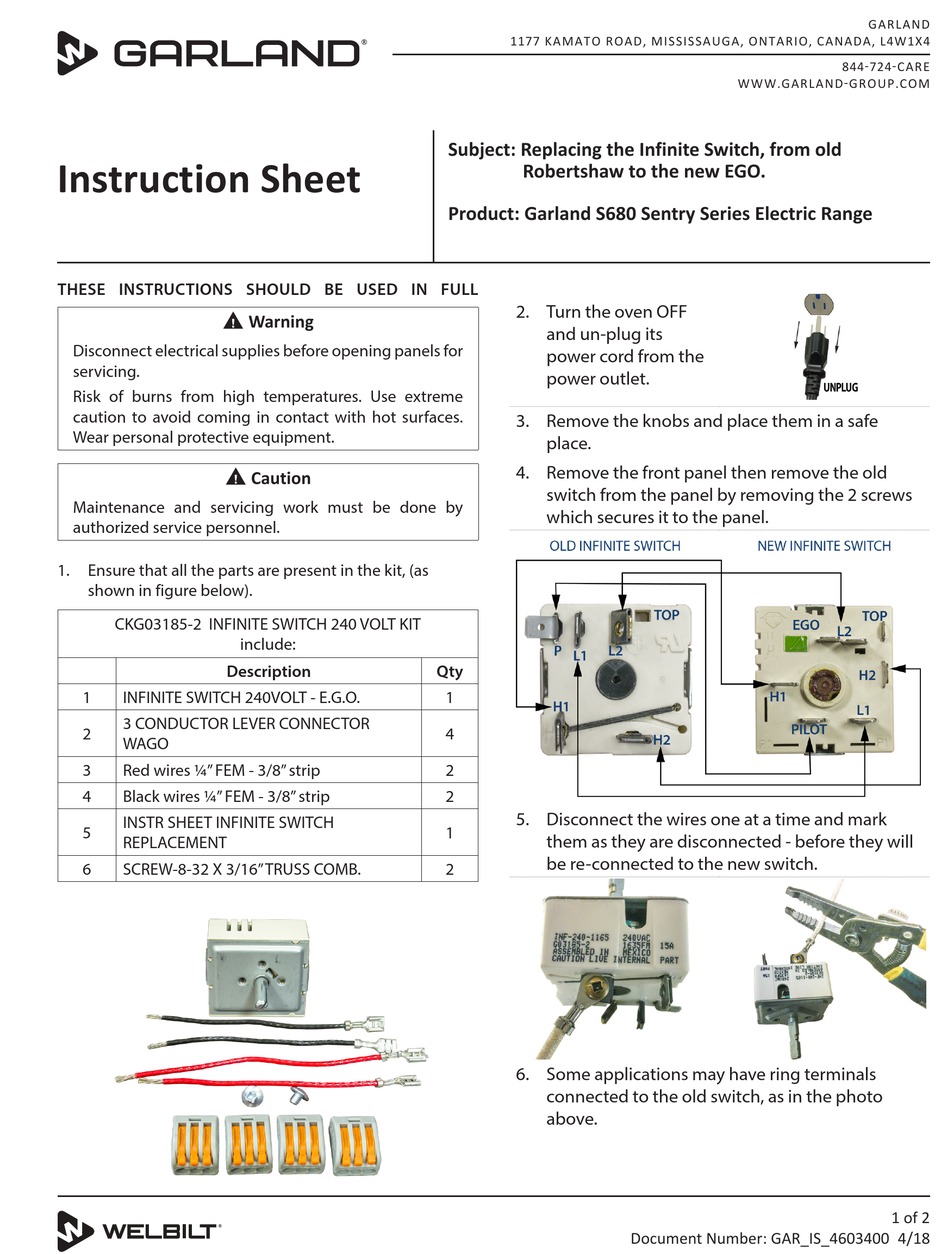

Welbilt Garland S680 Sentry Series Instruction Sheet

Instruction Sheet
THESE INSTRUCTIONS SHOULD BE USED IN FULL
n
Disconnect electrical supplies before opening panels for
servicing.
Risk of burns from high temperatures. Use extreme
caution to avoid coming in contact with hot surfaces.
Wear personal protective equipment.
n
Maintenance and servicing work must be done by
authorized service personnel.
1. Ensure that all the parts are present in the kit, (as
shown in figure below).
CKG03185-2 INFINITE SWITCH 240 VOLT KIT
Description
1 INFINITE SWITCH 240VOLT - E.G.O.
3 CONDUCTOR LEVER CONNECTOR
2
WAGO
3 Red wires ¼" FEM - 3/8" strip
4 Black wires ¼" FEM - 3/8" strip
INSTR SHEET INFINITE SWITCH
5
REPLACEMENT
6 SCREW-8-32 X 3/16" TRUSS COMB.
Warning
Caution
include:
1177 KAMATO ROAD, MISSISSAUGA, ONTARIO, CANADA, L4W1X4
Subject: Replacing the Infinite Switch, from old
Robertshaw to the new EGO.
Product: Garland S680 Sentry Series Electric Range
2. Turn the oven OFF
and un-plug its
power cord from the
power outlet.
3. Remove the knobs and place them in a safe
place.
4. Remove the front panel then remove the old
switch from the panel by removing the 2 screws
which secures it to the panel.
Qty
1
4
2
2
5. Disconnect the wires one at a time and mark
1
them as they are disconnected - before they will
be re-connected to the new switch.
2
6. Some applications may have ring terminals
connected to the old switch, as in the photo
above.
WWW.GARLAND-GROUP.COM
Document Number: GAR_IS_4603400 4/18
GARLAND
844-724-CARE
1 of 2
