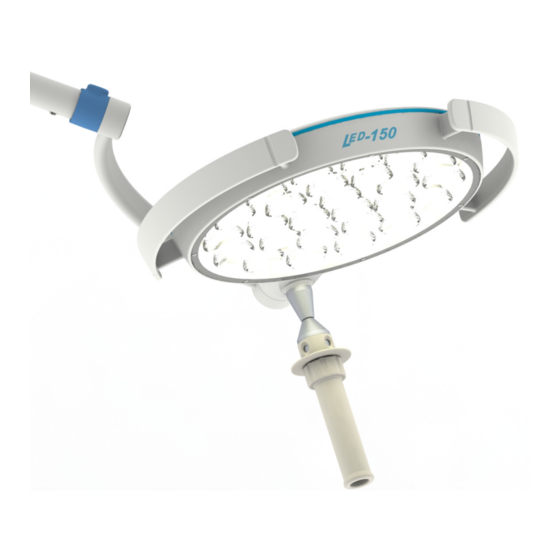

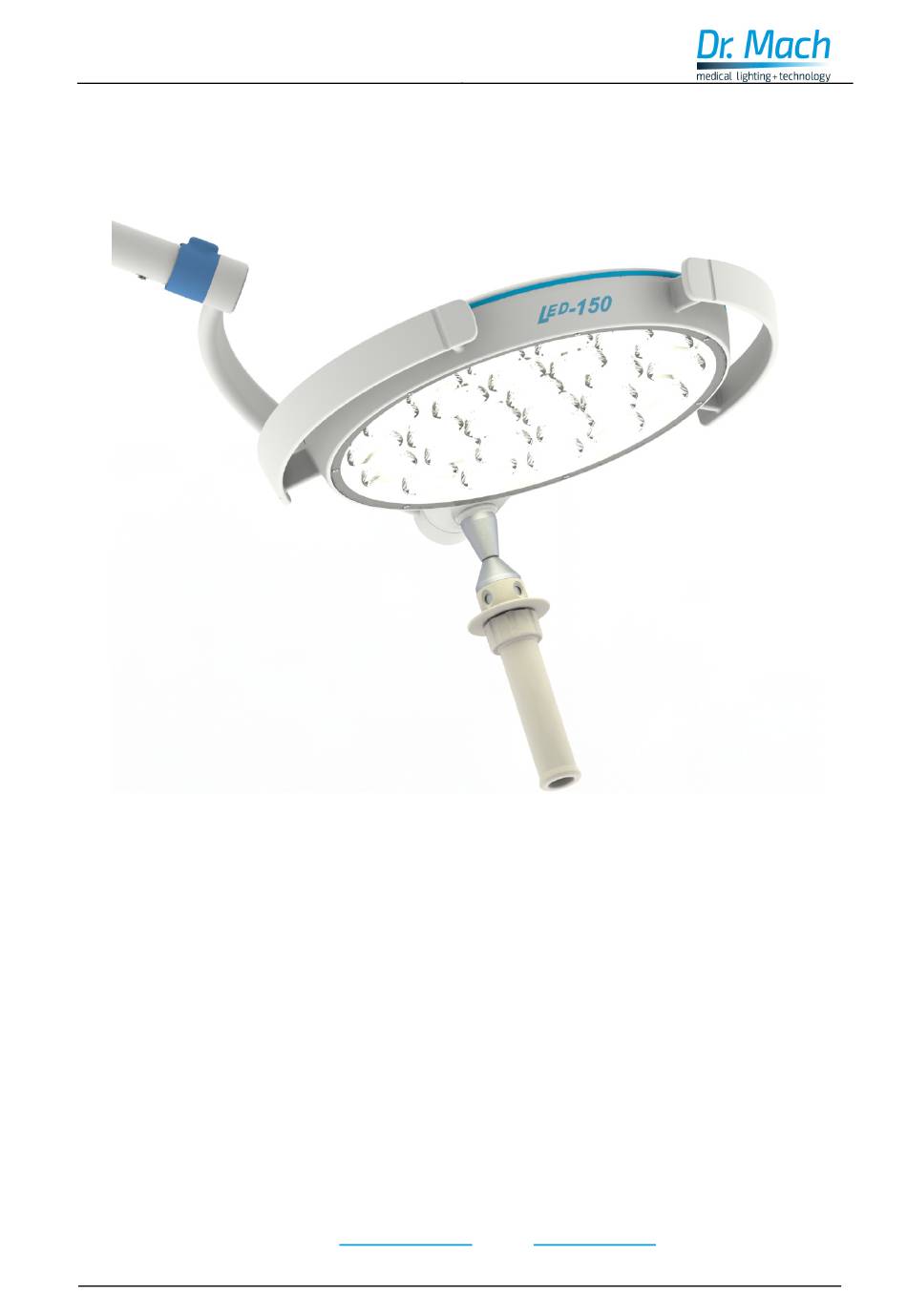

MACH LED 150F / 150 / 150FP
Mach LED 150F / LED
150 / LED 150FP
Service manual
Dr. Mach
GmbH u. Co. KG, Floßmannstrasse 28, D-85560 Ebersberg
Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50
Internet: www.dr-mach.com, E-Mail:
info@dr-mach.de
59593206 Service manual
06.02.2018; Edition 01 / Bar;Bak page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dr. Mach 150F

Summary of Contents for Dr. Mach 150F

  • Page 1 MACH LED 150F / 150 / 150FP Mach LED 150F / LED 150 / LED 150FP Service manual Dr. Mach GmbH u. Co. KG, Floßmannstrasse 28, D-85560 Ebersberg Tel.: +49 (0)8092 2093 0, Fax +49 (0)8092 2093 50 Internet: www.dr-mach.com, E-Mail: info@dr-mach.de...

  • Page 2: Table Of Contents

    MACH LED 150F / 150 / 150FP List of contents 1. Safety instructions ....................Page 3 2. Exchanging the protective glass ................Page 4 3. Exchanging the key pad ..................Page 6 4. Adjusting the mobility of the light ................. Page 7 5.

  • Page 3: Safety Instructions

    MACH LED 150F / 150 / 150FP 1. Safety instructions Pay attention to the instructions for use when handling the lamp. WARNING: This device has not been designed for use in potentially explosive areas. According to the Medical Device Regulation the light is classified under class I.

  • Page 4: Exchanging The Protective Glass

    MACH LED 150F / 150 / 150FP 2. Exchanging the protective glass Failure description: The protective glass of the light can become dull in time or can be scratched. As a result the light efficiency decreases. In such cases we recommend the ex- change of the protection glass.
  • Page 5 MACH LED 150F / 150 / 150FP Attention: The protective glass or the housing can be damaged if the fixation screws are too tightened! We strongly recommend to use a torque wrench (16 Ncm). 59593206 Service manual 06.02.2018; Edition 01 / Bar;Bak page 5...

  • Page 6: Exchanging The Key Pad

    MACH LED 150F / 150 / 150FP 3. Exchanging the key pad Failure description: In case of malfunction the key pad must be replaced.  Disconnect the light from mains.  Loosen and remove the two fixation screws DIN966-HM3x10-4.8-Ni (pos. 3), part num- ber 65112003.

  • Page 7: Adjusting The Mobility Of The Light

    MACH LED 150F / 150 / 150FP 4. Adjusting the mobility of the light Failure description: In case of tight-running or easy movement of the light, the mobility in the light joint can be adjusted.  Turn off the light.
  • Page 8 MACH LED 150F / 150 / 150FP  Remove the upper part of the light (pos. 8).  Use a fork spanner (width 19) to adjust the hexagonal nut M12x1 (pos.9) by loosening or tightening, until the requested mobility of the light has been reached.

  • Page 9: Spare Parts

    MACH LED 150F / 150 / 150FP 5. Spare parts Item Qty. Name Part. no. Remarks Fixation screw for protective glass 65872004 Protective glass 32035201 Fixation screw for key pad 65112003 Key pad LED 150 14117002 Plastic caps for the upper housing part...
