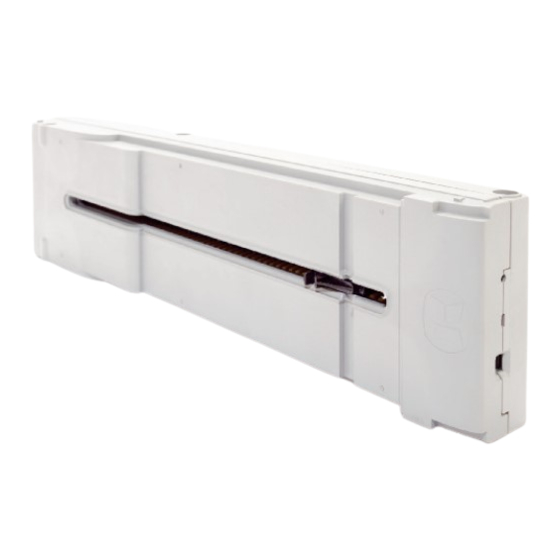

Einleitung Herzlichen Glückwunsch zum Kauf Ihres eTouch-Systems! Dieses eTouch-System ermöglicht Ihnen das elektrisch unterstützte Öffnen und Schließen Ihres CONVOY-Schrankes. Symbolerklärung der Sicherheitshinweise In dieser Bedienungsanleitung werden folgende Symbole als Sicherheitskennzeichnung für den Benutzer verwendet. Dieses Symbol bedeutet eine unmittelbar drohende Gefahr für das Leben und die Gesundheit von Personen.
Sicherheit Das eTouch-System entspricht dem zurzeit geltenden Stand der Sicherheitstechnik. Trotzdem können Restrisiken bei Nichtbeachtung dieser Bedienungsanleitung verbleiben. Bitte haben Sie Verständnis, dass die Kesseböhmer GmbH keinerlei Haftung oder Gewähr- leistung für Folgeschäden übernehmen kann, die durch Nichtbeachtung der Bedienungs- anleitung entstehen.
nicht richtig funktioniert oder wenn es fallen gelassen wurde. Dieses Produkt darf nur mit dem mitgelieferten Netzkabel ver- wendet werden. Ein defektes Netzkabel muss durch ein Original- Ersatzteil ersetzt werden. Trennen Sie das eTouch-System, wenn es längere Zeit nicht ge- nutzt wird oder bei Gewitter, vom Netz.
Nutzungsbeschränkung Kinder können beim Öffnen und/oder Schließen des Schrankes stürzen und/oder verletzt werden. Achten Sie darauf, dass Kinder nicht unbeaufsichtigt mit dem eTouch spielen. Gefahr Dieses Gerät ist nicht dafür bestimmt, durch Personen (einschließlich Kinder unter 8 Jahren) mit einge- schränkten physischen, sensorischen oder mentalen Hinweis Fähigkeiten oder mangels Erfahrung und/oder man-...
ferung eines gleichwertigen oder neuen Ersatzgerätes. Durch Ersatzlieferung oder Reparatur aus Garantiegründen tritt keine generelle Verlängerung der ursprünglichen Garantiezeit ein. Technische Daten Netzanschluss: Netzanschlussleitung: 100-240 V AC / 50/60 Hz Netzanschluss geräteseitig: Stecker (länderspezifische Auslegung) IP-Schutzgrad: Euro8-Stecker (EN 60320/C8) Nennleistung: IP2X Gewicht: 60 W...
Reinigung und Tätigkeiten am Schrank Beim Eindringen von Feuchtigkeit in das eTouch-System besteht Lebensgefahr durch Stromschlag. Schalten Sie vor der Reinigung die Steckdose aus, an der das eTouch-System angeschlossen ist bzw. trennen Sie das eTouch-System durch Ziehen des Ste- Gefahr ckers vom Netz.
Bedingungen Damit eine fehlerfreie Funktion des eTouch-Systems gewährleistet ist, müssen mindestens folgende Bedingungen erfüllt sein: CONVOY Centro • Der Beschlag CONVOY Centro wurde gemäß der Vorgaben aus der Montageanleitung von einer qualifizierten Fachkraft verbaut • Das eTouch-System ist gemäß der Vorgaben aus der Montageanleitung von einer qualifizierten Fachkraft verbaut •...
Batteriewechsel Frontsensor des CONVOY Centro Der Frontsensor ist mit einer handelsüblichen Knopfbatterie (Typ CR2032) ausgestattet. Sollte der Frontsensor nicht auf ein Drücken an der Front reagieren, tauschen Sie bitte die Batterie gegen eine baugleiche aus. Entnehmen Sie den Frontsensor aus der Korpusseitenwand. Entnehmen Sie vorsichtig die alte Batterie und ersetzen Sie diese durch eine Knopfzelle gleicher Größe und Spannung.
Batteriewechsel CONVOY Lavido-Griff Der CONVOY Lavido Griff ist mit einer handelsüblichen Knopfbatterie (Typ CR2032) ausgestat- tet. Sollte der Taster trotz Betätigens den Bewegungsvorgang nicht auslösen, tauschen Sie bitte die Batterie gegen eine baugleiche aus. Lösen Sie dazu die beiden Schrauben auf der Unterseite des Lavido-Griffs. Entnehmen Sie vorsichtig die alte Batterie und ersetzen Sie diese durch eine Knopfzelle gleicher Größe und Spannung.
Konzipierung und Bauart sowie in der von uns in Verkehr gebrachten Ausfü hrungen den Bestimmungen der unten genannten Richtlinien entspricht. Produktbezeichnung: eTouch CONVOY Centro/Lavido 1999/5/EG (R&TTE-Richtlinie) 2006/95/EG (EG Niederspannungsrichtlinie) Angewendete Normen und technische Spezifi kationen: DIN EN ISO 12100...
Page 13

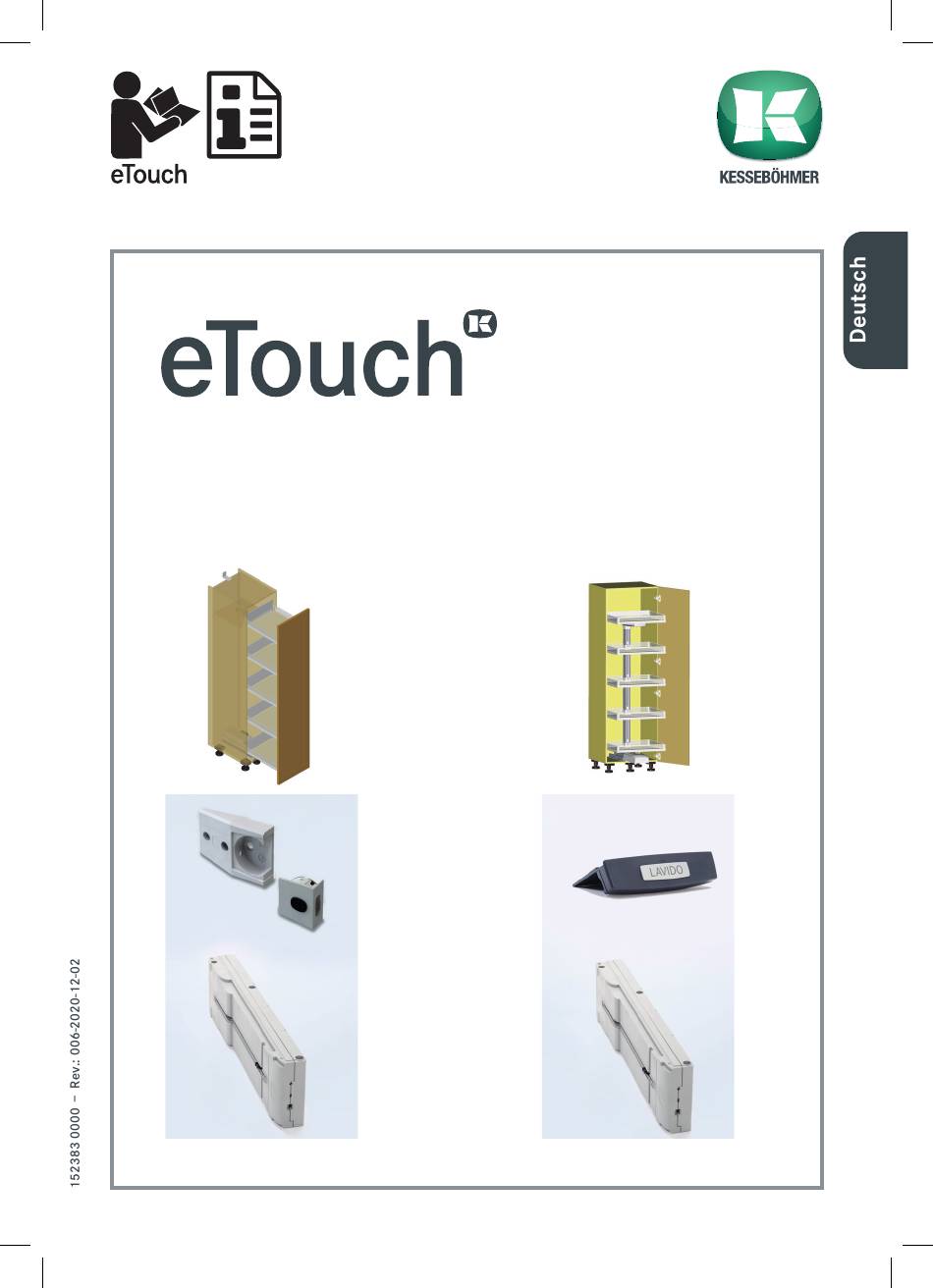

Operating instructions for CONVOY larder units CONVOY Centro CONVOY Lavido...
Page 14
Contents Introduction ......................15 Symbols used in the safety notes ................15 Safety ........................16 Intended use ......................17 Limitations on use ....................18 Technical data ......................19 Storage and transport ..................... 19 Cleaning and handling the cabinet ................20 Changes to the system ...................
Introduction Congratulations on owning an eTouch system! It gives you all the benefits of electrically-assisted opening and closing for your CONVOY larder unit. Symbols used in the safety notes The following symbols are used in these operating instructions to indicate the importance for user safety of the adjacent notes.
Safety Das The eTouch system is fully compliant with all current safety requirements. There is nonet- heless a residual risk if you do not comply with these operating instructions. Please unders- tand that Kesseböhmer GmbH cannot accept any liability or warranty for consequential damage resulting from disregarding these instructions.
A defective or damaged power cable must be replaced by an original spare part. Unplug the eTouch system if it is not going to be used for any length of time and during thunderstorms. To switch off the eTouch system, unplug the power cable. Protect the device from rain or moisture in order to minimise the risk of a fire or short circuit.
Limitations on use Children can fall and/or be injured during opening and/or closing of the larder unit. Do not let children operate the eTouch unsupervised or play with it. Danger This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and know- Note ledge, unless they have been given supervision or ins-...
through repair or replacement of the affected components or by supplying a replacement device of equal value or a new device. Replacement or repair for warranty reasons do not automatically extend the original warranty period. Technical Data Power supply: Power cable: 100-240 V AC / 50/60 Hz Power connection on device side: plug (country-specific)
Cleaning and handling the cabinet Moisture ingress into the eTouch system can result in danger to life through an electric shock. Before cleaning the cabinet, either switch off the socket to which the eTouch system is con- nected, or unplug the eTouch power cable from the socket. Moisture ingress and/or aggres- sive cleaning agents can damage the electronics of the eTouch system.
Conditions The following minimum conditions must be met in order to guarantee perfect functioning of the eTouch system: CONVOY Centro • Der CONVOY Centro fitting was installed by a qualified service technician according to the directions in the assembly instructions. •...
CONVOY Centro – changing the sensor battery The sensor uses a conventional CR2032 ‘button’ battery. If the sensor does not respond to pressure on the front panel, try changing the battery. To change the battery remove the front sensor from the side panel of the cabinet.Take out the old battery and replace it with another button battery the same size and voltage.
Page 23
CONVOY Lavido pressure switch – changing the battery The pressure switch uses a conventional CR2032 ‘button’ battery. If the pressure switch fails to initiate the movement sequence when pressed, try changing the battery. To change the battery, unscrew the two screws on the underside of the Lavido handle. Take out the old battery and replace it with another button battery the same size and voltage.
EC Directives in its design and construction and in the versions distributed by us. Product name: eTouch CONVOY Centro/Lavido 1999/5/EG (R&TTE directive) 2006/95/EC (EC low voltage directive) Applied standards and technical specifi cations: DIN EN ISO 12100...
