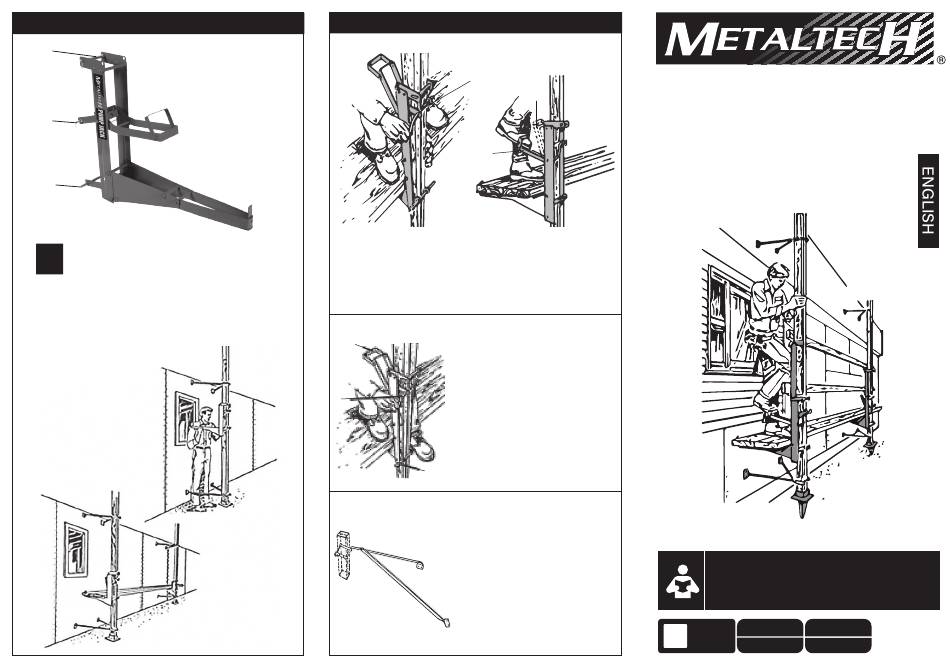

SET UP
D
E
F
3
Attach the pump jack to the pole with the bed facing
the work wall, by removing pin and roller (D) crank
(E) square rod (F). Place the pump jack over the
pole and reconnect parts.
Open pump jack bed to full extended length and place
planks on bed, thus completing staging. Be sure that the
platform is fully decked and the planking secured against
movement. Install guard rails in accordance with OSHA
regulations. The Guard Rail Holder should be used to assist
in this installation.
TO OPERATE
TO RAISE PUMP JACK
A
B
Stand on walk plank with the jack and pole in front of you. Lock the
crank (A) by sliding the crank handle to the right or left until square
rod is in square hole. Place right foot in stirrup (B) and pump slowly
until platform is raised approximately 1 foot. Repeat this procedure on
the other pump jack.
IMPORTANT – Raise Stirrup to "Up" Position (C) when desired
height is reached.
TO LOWER PUMP JACK
A
Be sure stirrup (A) is in the "Up"
position. Unlock Crank (B) by sliding
handle to the right or left until it turns
freely. (If crank seems jammed, depress
stirrup about 3" and return to "Up"
B
position. This will free crank for easy
unlocking.) Place left foot on the square
key (C) of lower lock. Press foot down
and hold lock open. Turn Crank (B) in
a clockwise direction to lower staging
approximately 1 foot and lock crank.
Repeat this procedure on the other
E
Pump Jack.
TO PASS A PUMP POLE BRACE
An extra Pole Brace is to be installed
approximately 4 feet above the Pole
Brace to be passed. Remove nails
from clamp of Pump Pole Brace.
Remove the wing nut and carriage
bolt. Separate plates and let the
brace swing down against the work
wall. Do not remove Pump Jack
Brace from wall. After the Pole Brace
has been passed, reconnect it to
the Pole and remove the extra Pole
Brace.
PUMP JACK SYSTEM
C
OPERATIONAL SAFETY
Pictures may differ from actual product
1
YEAR
WARRANTY
AND ASSEMBLY
INSTRUCTIONS
READ THESE INSTRUCTIONS CAREFULLY
BEFORE USING THIS PRODUCT. KEEP THIS
MANUAL HANDY FOR FUTURE REFERENCE.
OSHA
ANSI
MEETS 1926.451
MEETS 10.8-2019
& 1926.452(J)
