Summary of Contents for SD SAF-3000

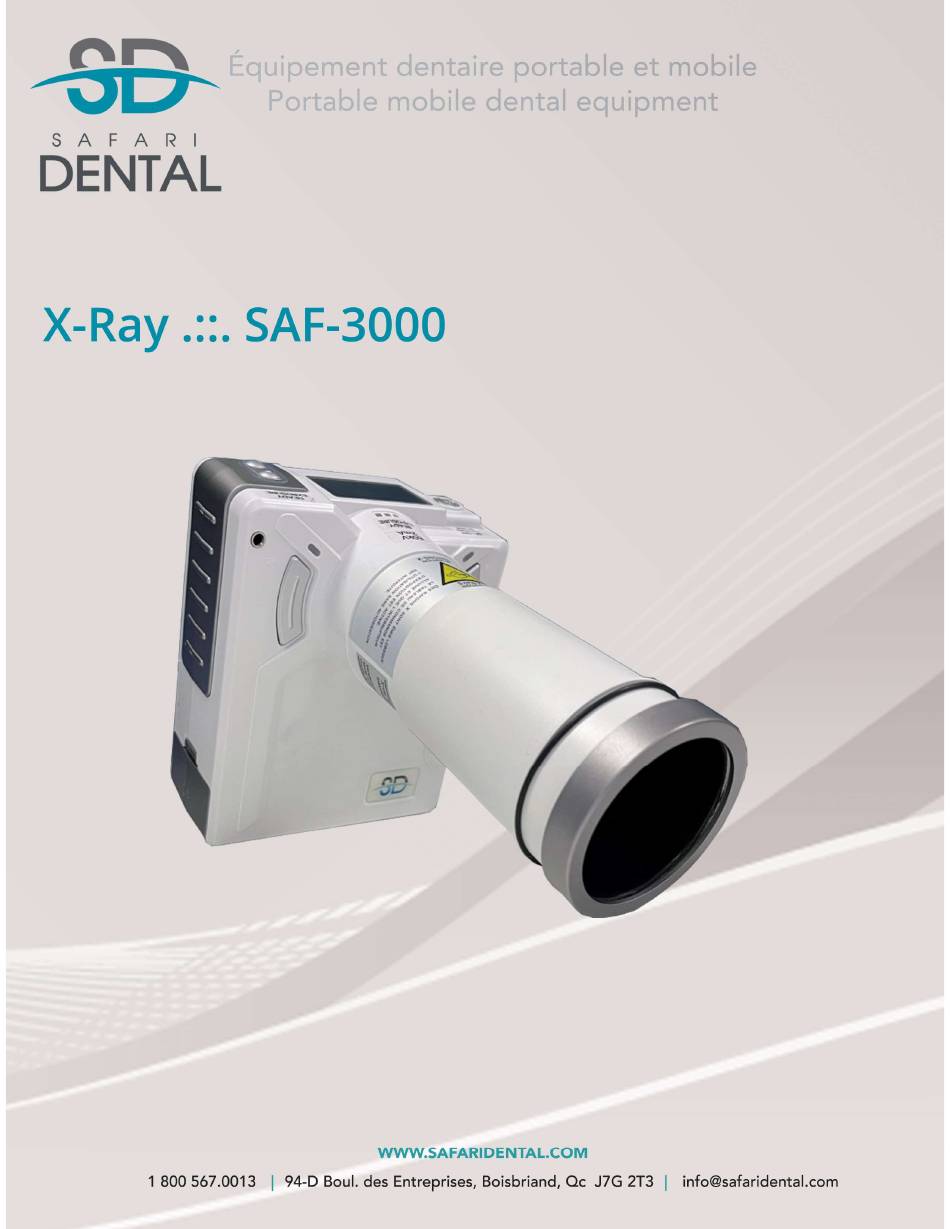

  • Page 2 Version 1.2 User Manual (13-04-2022) Super Small! Super Light! ☞ Convenience of cordless. - Use the charging battery-pack take-off type. ☞ Great reduction of X-ray exposure. - Up to 1/7 of existing X-ray systems. ☞ Adopting high-frequency circuit of inverter type. ☞...

  • Page 3: Table Of Contents

    Version 1.2 User Manual (13-04-2022) Contents 1. Contents P. 02 2. Preface P. 03 3. Safety marks P. 04 3.1 Warning P. 05-06 3.2 Caution P. 06 3.3 Checking for confirmation P. 07 4. Features of product P. 08 5. Product consist P.

  • Page 4: Preface

    Version 1.2 User Manual (13-04-2022) 2. Preface Thank you for purchasing the dental X-ray unit of Safari Dental Inc. This unit has been so developed as to not only take radiographs in analog way using conventional film, but also be used in Dental Digital Radiograph, DDR using digital sensor as well.

  • Page 5: Safety Marks

    Version 1.2 User Manual (13-04-2022) 3. Safety marks Warning, caution, and acknowledgement indication in this manual are provided for assuring of proper use of the product to protect the user’s safety and to prevent the loss of the property. Therefore the users have to observe these safety requirements.

  • Page 6: Warning

    Version 1.2 User Manual (13-04-2022) 3.1 Warning 1. In use Not to exceed the dose of X-ray that is necessary for image diagnosis. • Be handled or operated only by qualified personnel. • Something wrong with the patient during using of the product. Proper actions have to be •...

  • Page 7: Caution

    Version 1.2 User Manual (13-04-2022) 2. Safekeeping not in use Do not keep the unit where it is damp, salty, and dusty, which might cause the bad • effects for operating of the unit. Do not place the unit long at the place where the temperature changes steeply or in •...

  • Page 8: Checking For Confirmation

    Version 1.2 User Manual (13-04-2022) 3.3 Confirmation check Check the condition of the battery-pack and the unit before using, make sure the proper • operation state of the unit. Check again the parts of the unit that is touching directly the patient. •...

  • Page 9: Features Of Product

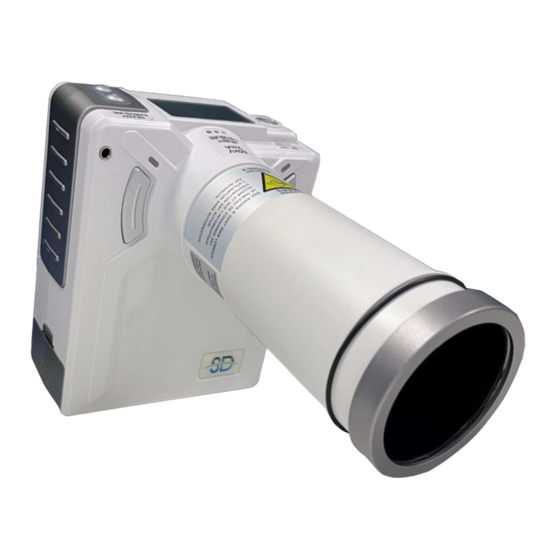

    (13-04-2022) 4. Features of product Name of product : Portable mobile dental X-ray unit • Model : SAF-3000 • No need to clutter up with useless power cords thanks to the battery powered pack. • Graphic LCD window and user-friendly interface by simple button-touch.

  • Page 10: Product Consist

    Version 1.2 User Manual (13-04-2022) 5. Product consist...

  • Page 11: Product Description

    Version 1.2 User Manual (13-04-2022) 6. Product description 6.1 Features Front...
  • Page 12 Version 1.2 User Manual (13-04-2022) Back Product Label Caution, consult accompanying documents Date of manufacture Serial number...

  • Page 13: Lcd Window And Functions

    Version 1.2 User Manual (13-04-2022) 6.2 LCD window and functions ① ② ⑤ ⑥ ⑦ ⑧ ③ ④ ⑨ ① Adult mode: Adult mode indicates. ② Teeth part of adult: Adult teeth part indicates. ③ Child mode: Child mode indicates. ④...

  • Page 14: Description Of The Button And Functions

    Version 1.2 User Manual (13-04-2022) 6.3. Description of the buttons and functions On/off button Time control button Button : Turn on/off the unit • Time (Mode) control button: Time setup by each teeth mode (24 steps in each mode). • button Time increase button : Time decrease 6.4 Description of the light and functions...

  • Page 15: Installation Of The Remote Control

    Version 1.2 User Manual (13-04-2022) 6.5 Installation of the remote control Remote control connector Remote control jack Allows the professional not to be exposed by using the remote control. Use only approved remote control.

  • Page 16: Replacement And Charge Of The Battery Pack

    Version 1.2 User Manual (13-04-2022) 6.6 Replacement and charge of the battery-pack The battery pack replacement. • If LOW battery direction ramp is blinking or LOW battery sign appears on battery pack residual quantity expression. ( Turn off the power when the LOW battery sign appears. Please open the battery pack cover and change with extra battery pack.

  • Page 17: Battery-Pack Charge

    Version 1.2 User Manual (13-04-2022) 6.7 Battery-pack charge Battery pack insert direction Battery holder exercise direction Slot Lock Please power plug of AC code to concert after connect device for charger and charger. • Please thread battery pack when battery pack is inserted to battery pack holder to direction t •...

  • Page 18: Use Of Mobile Stand (K3)

    Version 1.2 User Manual (13-04-2022) 6.8 Use of mobile stand (K3) 5 axes arms for a 360° flexibility Epad support (Tablet not included) X-ray unit support Accessories plate Always lock the wheels during use Base with 6 lock double wheel 27 inch...

  • Page 19: Use Of Mobile Stand (K2)

    Version 1.2 User Manual (13-04-2022) 6.9 Use of mobile stand (K2) X-ray unit support with ball joint Arms on pivot for a 360° flexibility Accessoires plate Counterweight Always keep the wheels locked when in use Base with 5 lock double wheel 27 inch...

  • Page 20: Operation

    Version 1.2 User Manual (13-04-2022) 7. Operation 7.1 Starting and ending of the unit Press the power button during “1 second” then logo will appear and become initial stage. • Press the power button during “1 second” in active state, power turns off. •...

  • Page 21: X-Ray Exposure

    Version 1.2 User Manual (13-04-2022) 7.4 X-ray exposure Using Remote Control. • After choosing your settings, press the button on the remote control to take a radiograph • The alarm sound is not audible and lights visible only during the activation of the •...

  • Page 22: User Set-Up Mode

    Version 1.2 User Manual (13-04-2022) 7.5 User set up mode At the status of power on, pressing the together and then releasing, you will • enter into User Set-up Mode ① ② ③ ④ ⑥ ⑤ Move between menu : button •...
  • Page 23 Version 1.2 User Manual (13-04-2022) ① Film/Digital mode Using button, locate the menu in “Set up Mode" position, and by pressing • button, film mode or digital mode can be selected. When digital mode is selected, the digital mode icon is displayed as followings •...

  • Page 24: Battery-Pack

    Version 1.2 User Manual (13-04-2022) 7.6 Battery pack Change with the extra battery pack when the LOW battery direction lamp starts flicking. Turn off. • Please open battery pack cover (side of product) by • pulling forward after pressing lever down and change with extra battery pack.

  • Page 25: Maintenance And Keeping

    Version 1.2 User Manual (13-04-2022) 8. Maintenance and Keeping Keep the unit and the battery-pack where only authorized personnel can access. • Please clean often the product by using piece of cloth and to keep radiation apertures clean because • patients are contacted directly.
  • Page 26 Version 1.2 User Manual (13-04-2022) Safe keeping • Keep the unit avoiding the place where it is damp or under direct ray of light. Do not keep the unit where it is dusty, dirty, and sloping. When the unit is not in use for long, remove the battery-pack and keep it separately. Safe-keeping of the charger and the table-top device for charging •...

  • Page 27: Instruction And Troubleshooting Guidelines

    Version 1.2 User Manual (13-04-2022) 9. Instruction & Troubleshooting guidelines User should check below symptoms list before asking repair. Symptoms Management Battery indication Check the remaining battery, and replace with charged battery. lamp is flicking Ensure if the battery-pack cover is properly closed, and if the cover open, close the cover completely to the end.

  • Page 28: Quality Guaranteed

    Version 1.2 User Manual (13-04-2022) 10. Quality Guaranteed This product is warranted its quality from the date of purchase to one-year. • It is hard to recognize the warranty period; the warranty is applicable three months after • it was manufactured. Products defects by itself or improper workmanship, the product will be either •...

  • Page 29: Specifications

    (13-04-2022) 11. Specifications Manufacturer: Safari Dental Inc. • Name of medical equipment: Portable mobile dental X-ray unit • Product number: SAF-3000 • Classification: Class II • Type of protection against electric shock: Internal powered equipment • Degree of protection against electric shock: TYPE B Applied part •...
  • Page 30 Version 1.2 User Manual (13-04-2022) Battery pack Material : Polymer & Lithium Charge condition Current : 1.0 A  Voltage : 16.8 VDC  ◦ ◦ Temperature : 0 C– 40  Use condition Max. current : 20A  Voltage range : 12 (min) – 16.8Vdc (Max) ...
  • Page 31 Version 1.2 User Manual (13-04-2022) Maximum Rating Charts (Absolute Maximum Rating Charts). • Emission & Filament Characteristics •...
  • Page 32 Version 1.2 User Manual (13-04-2022) Anode Thermal Characteristics • Distance from focal spot to radiation aperture and the diameter of X-ray field. •...

  • Page 33: Electro-Magnetic Compatibility

    Version 1.2 User Manual (13-04-2022) 12. Electro-Magnetic Compatibility (EMC) As this product is used without connection of a cable, there is no EMC risk.  This product has EMI characteristics, less than 4.9dB at 1000MHz, which may make an  interference with another device having similar characteristics.
  • Page 34 Version 1.2 User Manual (13-04-2022) Electro-magnetic susceptibility Table 2 Frequency range Field strength Modulation Frequency step Radiated Field 80-2500 MHz 3 V/m 10 V/m AM 80% 1% / 3s 1KHz sine wave Axis of Test frequency Field level (EMF) Duration orientation Magnetic Field 60 seconds par...

  • Page 35: Radiation Safety

    Version 1.2 User Manual (13-04-2022) 13. Radiation safety Concerned about safety? • This portable mobile dental X-ray unit have a generator tube securely sealed in multiple layers of radiation-shielding Lead (Pb). These layers prevent radiation from leaking out the sides of the machine, . CANADA YOU MUST USE STAND &...
  • Page 36 Version 1.2 User Manual (13-04-2022) Leakage radiation • It meets radiation emitting devices act. The following is leakage radiation at 1cm from the casing. Unit: [mR/h, (mGy/h)] 3.93(0.0393) 1.43(0.0143) 7.8(0.078) 0.02 (0.0002) 3.08 2.79 (0.0308) (0.0279) 5.85(0.0585) 5.23(0.0523) 7.19(0.0719) 0.04(0.0004) Leakage radiation at 1cm from case surface is less than 8mR/h(0.08mGy/h) Strayed radiation •...
  • Page 37 Version 1.2 User Manual (13-04-2022) Tel: 450 433-5754 / Fax: 450 433-5987 94-D boul. des Entreprises, Boisbriand, Québec, Canada J7G2T3...
