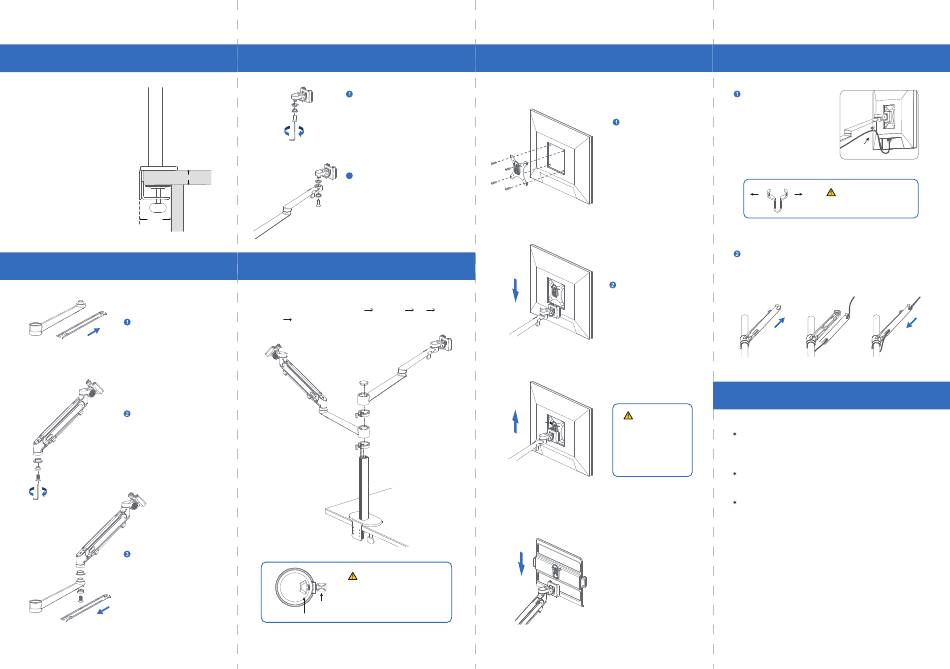

Viozon 3L Pro Installation Instructions

STEP1. ATTACH MOUNT TO WORK SURFACE

INSTALL ON OPEN EDGE
OF WORK SURFACE:
Slide the Base Stem against
work surface edge and fully
tighten clamp Screw(A).
≥0.6" - ≤2.36"
A
3.15"

STEP2. INSTALL THE GAS SPRING ARM

Remove the plastic cover
from rear arm.
Remove the screw from the
Forearm by the hex wrench.
6MM
As the picture shows, install
screw in order, then put
plastic cover back.

STEP3. INSTALL THE NORMAL ARM

Remove the screw from the
adapter by the hex wrench.
5MM
2 As the picture shows, put the
accessories at the arm,tighten
the screw.

STEP4. ATTACH ARM TO THE POLE

As the picture shows, install clip spring arm clip
arm post cap in order.
Note: Please fix the inside nut of
post(B) in position before tighten
A
Screw(A) on the clip.
B

STEP5. ATTACH MONITOR/LAPTOP PLATE TO ARM

INSTALLING MONITOR

As the picture shows,
install VESA mount on
monitor. Be careful to
leave the slide clip
upwards.
VESA standard:
75*75mm ; 100*100mm
Insert the VESA
connector into the
groove, when heard a
click sound means done.
A
Note: If you want to
remove the device,
please press shrapnel
(A) to remove the
device Up to extract.

INSTALLING LAPTOP PLATE

Insert the Laptop Plate into
the groove, when heard a
click sound means done.

STEP6. CABLE MANAGEMENT

Remove cable clip (A) from
the arm, thread cables, install
cable clip on the arm again.
A
Note: Open cable clip two sides.
Slide the plastic cover on the rear arm upwards until it
disengages. Put cables onto the plastic cover inside. Slide
the cover downwards until it click into place.
WARNING
Make sure to read the manual before installation and fully
understand how to install, if you have any questions, please
visit our website or contact our service email for the help.
Please make sure the desktop could bear the weight of
mount and monitor before installation.
This product contains small parts, keep these away from
children.
