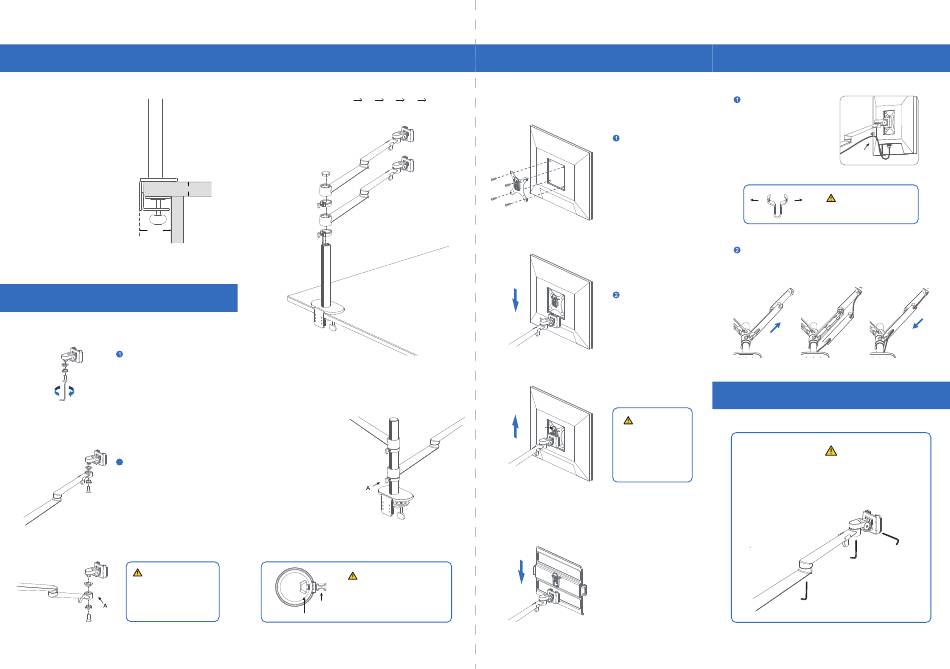

Viozon OL-3L Installation Instructions

STEP1. ATTACH MOUNT TO WORK SURFACE

INSTALL ON OPEN EDGE
OF WORK SURFACE:
Slide the Base Stem against
work surface edge and fully
tighten clamp Screw(A).
≥0.6" - ≤2.36"
A
3.15"

STEP2. INSTALL THE ADAPTOR

Remove the screw from the
adapter by the hex wrench.
5MM
As the picture shows, put the
2
accessories at the arm,tighten
the screw.
Note: If you would like to lower
the height, Please detach
the arm bracket firstly(A), Then
insert arm as picture.

STEP3. ATTACH ARM TO THE POLE

As the picture shows, install clip arm clip arm post cap
in order.

HEIGHT ADJUSTMENT

The Clip could be adjusted on
your desired position by loosing
the screw(A), fix it.
Note: Please fix the inside nut of
post(B) in position before tighten
A
Screw(A) on the clip.
B

STEP4. ATTACH MONITOR/LAPTOP PLATE TO ARM

INSTALLING MONITOR

As the picture shows,
install VESA mount on
monitor. Be careful to
leave the slide clip
upwards.
VESA standard:
75*75mm ; 100*100mm
Insert the VESA
connector into the
groove, when heard a
click sound means done.
A
Note: If you want to
remove the device,
please press shrapnel
(A) to remove the
device Up to extract.

INSTALLING LAPTOP PLATE

Insert the Laptop Plate into
the groove, when heard a
click sound means done.

STEP5. CABLE MANAGEMENT

Remove cable clip (A) from
the arm, thread cables, install
cable clip on the arm again.
A
Note: Open cable clip two sides.
Slide the plastic cover on the rear arm upwards until it
disengages. Put cables onto the plastic cover inside. Slide
the cover downwards until it click into place.

ARM ADJUSTMENTS

TENSION ADJUSTMENT

If you feel the pitching angle too tight or too loose when
adjusting the mount, please adjust the Screw.
5MM
5MM
6MM
