3. ASSEMBLY INSTRUCTIONS
RP3 MODEL-T

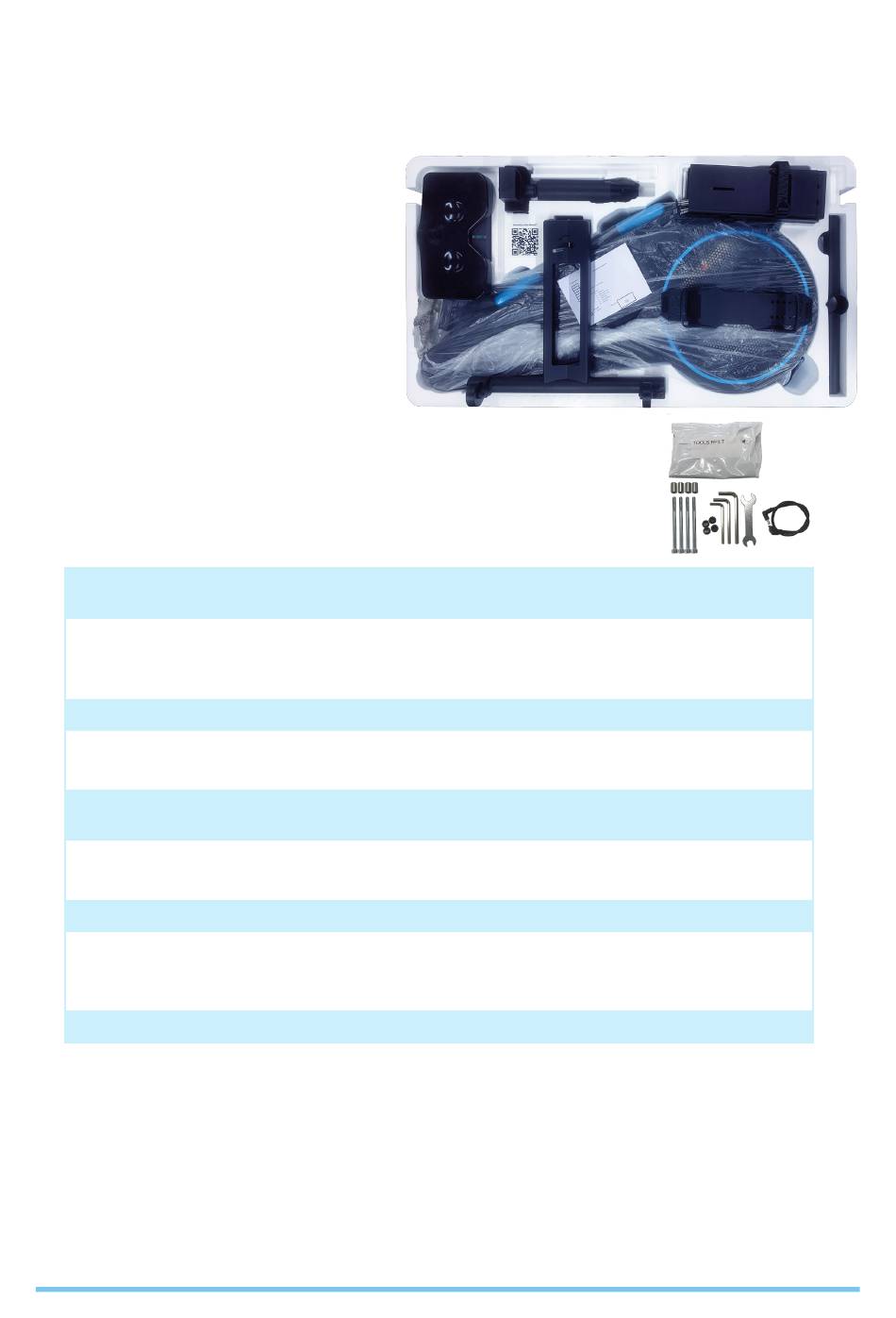

The RP3 rowing simulator comes pre-assembled into separate parts:
• Rear leg
• Front Leg
• Seat
• Foot stretcher with tubes
• Rear leg
• RP3
• Bag with tools and bolts/rings etc.
In the long carton:
• Main bar 2 pieces 40x20x2300 mm

3.1 ASSEMBLY PROCEDURE

Every machine and main bar have a serial number (is on the carton and
on the machine) make sure these are the same before assembly.
1. First assemble the rear leg, the tube to the mcylinder. Make sure the holes are inline
(picture 1A, 1B, 1C)
2. Assemble the rear leg tot the main bars (on the bars is a sticker with "Rear left" and "rear right"
and serial number (picture 2A, 2B, 2C, 2D)
3. Put the Seat on the main bar. Make sure it's in the right direction (picture 3A)
4. First remove transport wooden bars (picture 4A, 4B)
5. Place the PR3 on the ground and stick the bars through the machine. Pleace be careful, it should
go easy. No big force needed (picture 5A)
6. Assemble front leg. Two bolts M6 and nuts. (picture 6A)
7. Put the foot stretcher to the frame. Watch that the loose ends are at the outside picture 7A, 7B, 7C)
8. Level the bar by putting the seat about 30cm and push the pin on the rear leg to activate the
cylinder (picture 8)
9. Attach power bank to USB Cable (picture 9A, 9B, 9C)
RP3 Dynamic is ready for use!
Please contact us if you need help.
