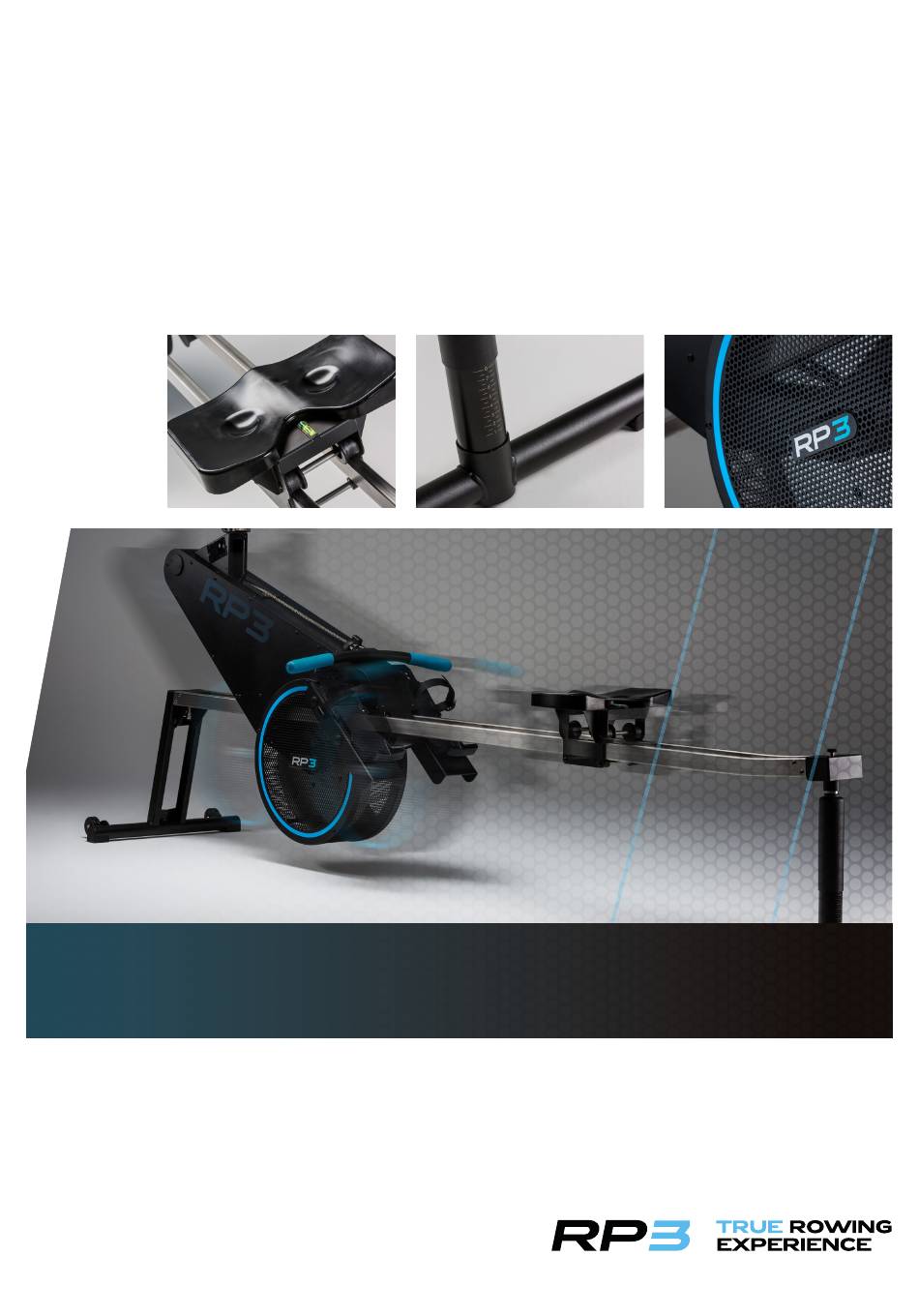

- Page 1 OPERATING MANUAL MODEL-T WWW.RP3ROWING.COM 210927RP3Trev1...
- Page 2 Introduction The RP3 Dynamic rowing simulator is the world’s only rowing machine that truly simulates the dynamics of a light racing shell, freely floating on the water. The main frame with its flywheel, stretcher and seat are the boat simula- ting parts, and the main bar simulates the water.
-
Page 3: Table Of Contents
Table of Contents 1. Safety General 1.1.1 Purpose of use 1.1.2 Danger to children and other groups or persons 1.1.3 Caution – Risk of injury 1.1.4 Caution – Product damage 1.1.5 Notes on handling batteries 1.1.6 Notes on assembly Physical Mechanical 2. -
Page 4: Safety
1.SAFETY GENERAL 1.1.1 PURPOSE OF USE • The product is designed for domestic use and not for medical use or suitable for commercial purposes. • The maximum weight allowed on this product is 200 kg. 1.1.2 DANGER TO CHILDREN AND OTHER GROUPS OF PERSONS •... -
Page 5: Notes On Assembly
• Wear tight clothing and keep clothing free from the seat rollers. • Maintain your machine properly as recommended in section Maintenance. Replace worn or defective parts before using the unit. In general: Treat your RP3 rowing simulator with the same loving care as you would your single scull. -
Page 6: Product Description
2. PRODUCT DESCRIPTION MODEL-T 2.1 DIMENSIONS Length Width Seat Height Total Weight Space recommended for use Stored dimension right up Weight Capacity 230 cm 51 cm 55 cm 41 kg 275 cm x 100 cm 257 cm x 60 cm x 160 cm... -
Page 7: User Identification
2.3 USER IDENTIFICATION Introduce a new user to the system by filling out the first time you run the software. The weight, gender, boat and sprocket data are used to calculate a weight- and gender- corrected time and boat speed. These times are close to the real times made in the chosen type of boat under ideal conditions with technique in the boat near to perfect. -
Page 8: App's For Android Or Ios
2.6 APP’S FOR ANDROID OR IOS Each RP3 rowing machine comes with an interface that has a USB connection and a Bluetooth connectivity. The free RP3 Rowing App provides additional performances statistics, stores and displays your workout results and you can upload these workouts to your personal webpage to keep track of your performance. -
Page 9: Assembly Of The Unit
3. ASSEMBLY INSTRUCTIONS MODEL-T The RP3 rowing simulator comes pre-assembled into separate parts: • Rear leg • Front Leg • Seat • Foot stretcher with tubes • Rear leg • RP3 • Bag with tools and bolts/rings etc. In the long carton: •... -
Page 10: Pictures
PICTURES... - Page 11 PICTURES...
- Page 12 PICTURES...
-
Page 13: Actions Prior To Start
The flywheel assembly of the RP3 rowing simulator weighs 21.8 kgs, which is close to the average weight per person of most racing shells, including the oars. To adjust the level of friction the central part of the fan is covered by a disk and a sliding vane on top of the cage. -
Page 14: Maintenance And Cleaning
5. MAINTENANCE AND CLEANING 5.1 GENERAL: To get the most satisfaction from your RP3 rowing simulator, treat her with the same loving care as you would your single scull. The actual level of maintenance required can vary strongly depending upon the type and frequency of use, and the environment the machine is used in. -
Page 15: Every 200 Hours Of Use Or Every 4 Weeks, Whichever Is The Longest
5.2.3 EVERY 200 HOURS OF USE OR EVERY 4 WEEKS, WHICHEVER IS THE LONGEST: Check that the following bolts and nuts are not loose: • The four knob bolts that hold the stretcher boards. • The bolts holding the front and rear leg to the main bar. 5.3 CHAIN To get the longest life from your chain and sprocket, keep the chain clean and properly lubricated at all times. -
Page 16: Support And Service
Contact details can be found at rp3rowing.com/locations. For further questions, please email info@rp3rowing.com. Your serial number is located on the front frame cover near rail. For more information on RP3 Rowing write or call to one of the following addresses: RP3 Rowing BV Bouwstraat 9B... -
Page 17: Warranty
In the event of a defect, malfunction, or other failure of the product not caused by any misuse or damage to the product while in the possession of the consumer, RP3 Rowing BV. will remedy the failure or defect, without charge to the consumer, within 14 business days of its receipt of the product. The remedy will consist of repair or replacement of the product, or refund of the purchase price, at RP3’s discretion. -
Page 18: Disposal
8 DISPOSAL The disposal of the equipment must be in accordance with the respective national regulations. An appropriate waste disposal company should be contacted. Properly dispose of the device at the end of its service life (e.g. the local collection point for waste separation): •...
