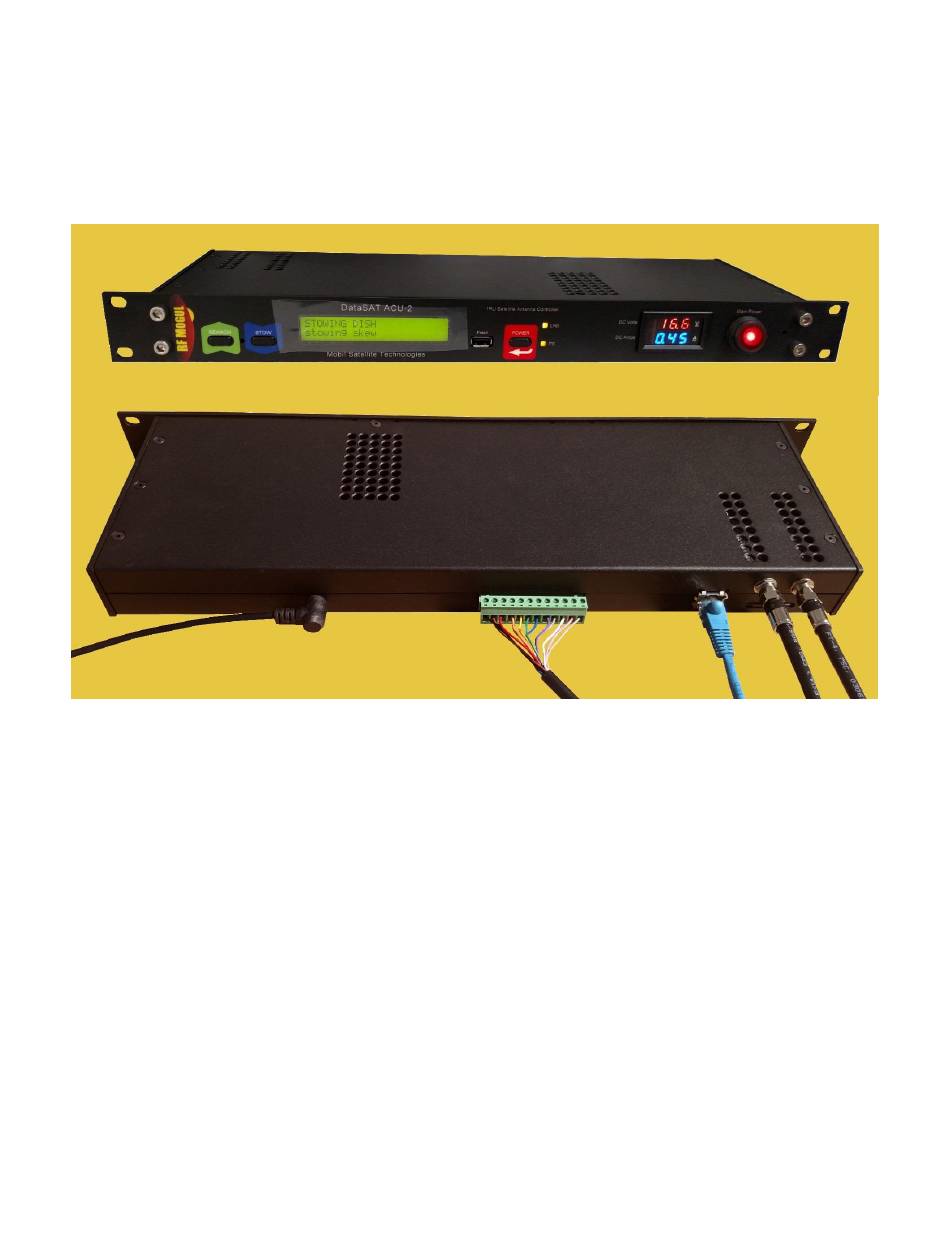

DataSAT ACU-2 Controller
Wiring – Configuration - Operation
This manual covers basic wiring, antenna controller configurations, and typical operation.
For proper operation, wiring and configuration are very important. Please read the
following pages to insure a smooth startup of this Antenna System.
This Antenna System has multiple PINCH and CUT points that during
installation and operation can result in severe injuries. There are hinging and
moving parts that move during installation that can fall due to gravity.
Become familiar with the antenna before installation and insure that everyone
working around this antenna is aware and alert of the dangers associated
303-ACU2-24(16) Operation Manual
!!! Warning !!!
during installation and operation!
1
8 April 2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the DataSAT ACU-2 and is the answer not in the manual?

Questions and answers

Related Manuals for RF Mogul DataSAT ACU-2

Summary of Contents for RF Mogul DataSAT ACU-2

  • Page 1 DataSAT ACU-2 Controller Wiring – Configuration - Operation This manual covers basic wiring, antenna controller configurations, and typical operation. For proper operation, wiring and configuration are very important. Please read the following pages to insure a smooth startup of this Antenna System.
  • Page 2 Ethernet (LAN) RF Out RF In DataSAT ACU-2 1RU Antenna Controller has five connections on the rear panel. External 24 Volt DC Power Supply Antenna Control Cable wiring for the 12 POS Euro Style Connector 12 - Tan – GPS RX Data In 11 - Pink –...
  • Page 3 Bandwidth Service Provider (ISP) and/or find a local IT Technician for assistance. RF Mogul may be able to provide some limited assistance on some systems when basic wiring and network configurations are used. Because many companies require additional securities on their networks our assistance will be limited.
  • Page 4 NOTE: If an Ethernet connection is not possible you could also set up the configurations by removing the SD Card located on the rear of the controller and modify several configuration files. This type of configuration is risky and could corrupt other files used in normal operation. Please contact RF Mogul if this type of setup is necessary.
  • Page 5 System Status – default page when opened thru browser 192.168.1.250 The ACU2 Antenna Controller HTML pages will follow a similar format as shown above. This is the Main Page which will allow you to access a full Satellite Table in both H and V receive fields, manually move the antenna in all 3 axis (Elevation, Azimuth, and Skew (polarity), check certain Modem Status configurations (Hughes and iDirect), and to Configuration files that allow set up of Modem, LNB, and Network settings.
  • Page 6 For typical setup, you might modify IP Address and the Default Gateway and Subnet Mask. If you have several RF Mogul Systems, you can name each system by changing the Device Name. The Device Name will be viewable in the Top Frame of every HTML Page under the Satellite Antenna Controller.
  • Page 7 Move the mouse to highlight Configuration then select RF Settings. The RF Settings page, above, must be configured correctly for the Antenna to find Satellites. Check the LNB specifications on the LNB Label attached to the Feed Assembly of the Antenna. If the LNB is Dual Band see You should find LNB Voltage, LO Frequency, and RF Bandwidth.
  • Page 8 Move the mouse to highlight Configuration then select Search Settings. Typical Search Settings when connected to an iDirect X5 Modem. When using an iDirect X5 Modem your Service Provider (ISP) will be able to provide you with the Modem Address, Username, and Password. You will also need to know the Receive Polarity. Enter this information into the fields above.
  • Page 9 Move the mouse to highlight Configuration then select Dish Calibration. Select Start. A Dish Calibration is required one time to complete installation and configuration. Once completed the System is ready for use. Operation - HTML ➢ Move the mouse to the Search Arrow to begin Search.
  • Page 10 Select Search. A Search for the correct satellite will begin. The following screens will show a typical search progression. Depending on Satellite Location, Search Type, and number of adjacent satellites a typical search will range from 4 to 7 minutes. If there are a lot of adjacent satellites that do not have identifiable carriers search time will increase.

  • Page 11: Operation - Front Panel

    If you are experiencing Search and Lock issues, please call 801-895-3362 during normal business hours (9:00 AM to 6:00 PM MST) or email support@rfmogul.com. You can also Skype test.rfmogul Search Completed (iDirect X5 Modem shown). Once completed the System is ready for use. Operation –...
  • Page 12 The following LCD Display Screens will be typical during a Search for the Target Satellite. To begin a search from the Front Panel, press on the Green Search Button on Left Side of Panel. From the Front Panel the current software does not allow selection of different satellites in the Satellite Belt.
  • Page 13 If the ACU-2 HTML page does not come up you can confirm the controller IP address by using the Front Panel Menu commands. These are the Power/Menu, Search/Up, and Stow/Down buttons. Pressing the Power one time when the Controller is already on will enter the Menu Mode.
