DESCRIPTION
Professional prop builders know a secret: audio is more than half of the experience of a high-quality prop. Until
now, consumer-level audio boards lacked some professional features – things like quality amplification, as well as
the ability to mix a stereo signal (to mono) right on the board. The AP-8 solves this problem, providing quality
audio and amplification in a small format; a format perfect for amateur and professional prop builders alike. Need
more than eight sounds? No problem – the AP-8 is addressable allowing up to four units to be attached to the
same host (serial) connection.
PRODUCT APPLICATIONS
Props and holiday displays
Sophisticated audio annunciation for small-scale industrial control
FEATURES & BENEFITS
Plays up to 60 seconds of audio (8 kHz sample rate)
Audio memory may be divided into one to eight discrete segments
Loop switch for continuous play of selected segment
Onboard two-level amplifier directly drives 8-ohm speaker
Serial control for connection to host microcontroller
User-configured baud rate (2400 or 38.4k) for serial control
User-configured address allows up to four AP-8 boards on one serial connection
Direct control with simple N.O. switch and button input (segment, loop mode, play/record)
Compact size: 2.75" x 3" (76.2 mm x 69.9 mm)

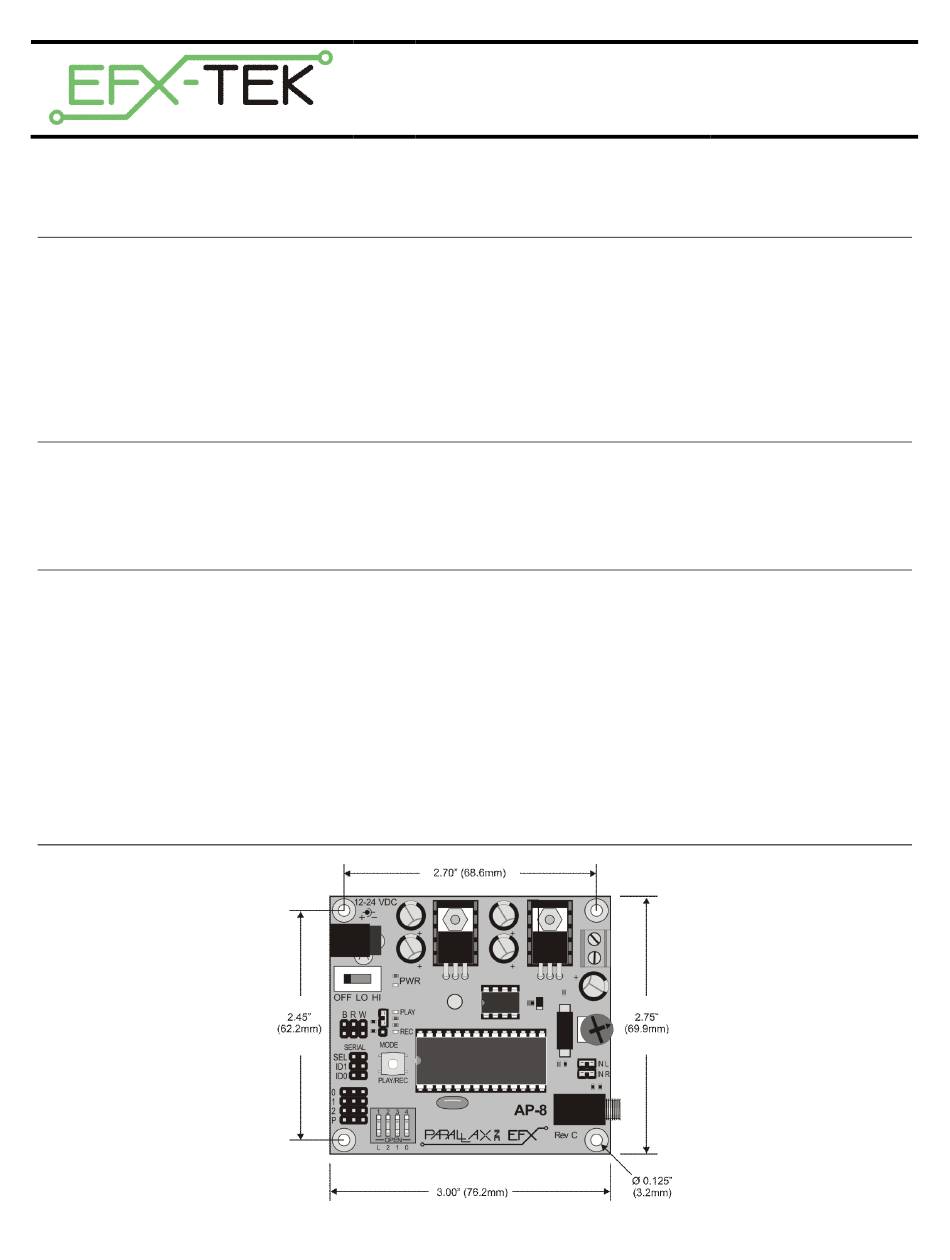

MECHANICAL
EFX-TEK (916) 616-1658 www.efx-tek.com teamefx@efx-tek.com
AP-8 Audio Player
Document Version: 2.0
01 JUN 2006
PN: 31308
Copyright © 2006 EFX-TEK
1 of 8
Advertisement
Table of Contents
Related Manuals for EFX-TEK AP-8
Summary of Contents for EFX-TEK AP-8
- Page 1 Need more than eight sounds? No problem – the AP-8 is addressable allowing up to four units to be attached to the same host (serial) connection.
- Page 2 AP-8 or the host controller. Connections – Power and Speaker Connect a 12-24 volt, 1 amp DC power supply to the AP-8. Power to the AP-8 is input through a 2.1 mm, center- positive barrel connector.
- Page 3 "!AP8", address, command { , data } … where “!AP8” is the preamble that allows the AP-8 to exist on the same communications line as other devices (e.g., DC-16, RC-4), address is the board address set with jumpers on ID0 and ID1, command is a single character command designator, and data is any value that may be required by command.
- Page 4 NOTE: The AP-8 “P” and “X” commands have “all call” capability. When the address byte for these commands is set to 255, any AP-8 on the communications line will respond to the command, but no status byte(s) will be returned.
- Page 5 AP-8 is accomplished through an audio connection between a PC (or similar audio source, e.g., a CD player) and the AP-8. For most applications, the following process is used to record one or more audio segments: 1.
- Page 6 (or more) segments then you reduce the number of sounds you can play with the AP-8. If, for example, you have a sound effect that is 10 seconds long and you want to place it into segment 0, this is no problem.
- Page 7 SEROUT Sio, Baud, ("!AP8", Addr, "V") ' get version SERIN Sio, Baud, id0, id1, id2 ' receive ID string DEBUG "AP-8 Version ", #@id0, #@id1, #@id2 ' display it PAUSE 2000 DEBUG CLS FOR segment = 0 TO 7 SEROUT Sio, Baud, ("!AP8", Addr, "P", segment)
- Page 8 14-inch, 3-pin extension cable; used to connect the AP-8 to the Prop-1 controller Additional Applications For additional ideas and application notes for the AP-8, be sure to visit our web site at the following link: www.efx-tek.com ChipCorder is a registered trademark of Windbond Electronics Corporation Amercia EFX-TEK ...
