VS-42 je
Car Communication Computer
E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56
Introduction

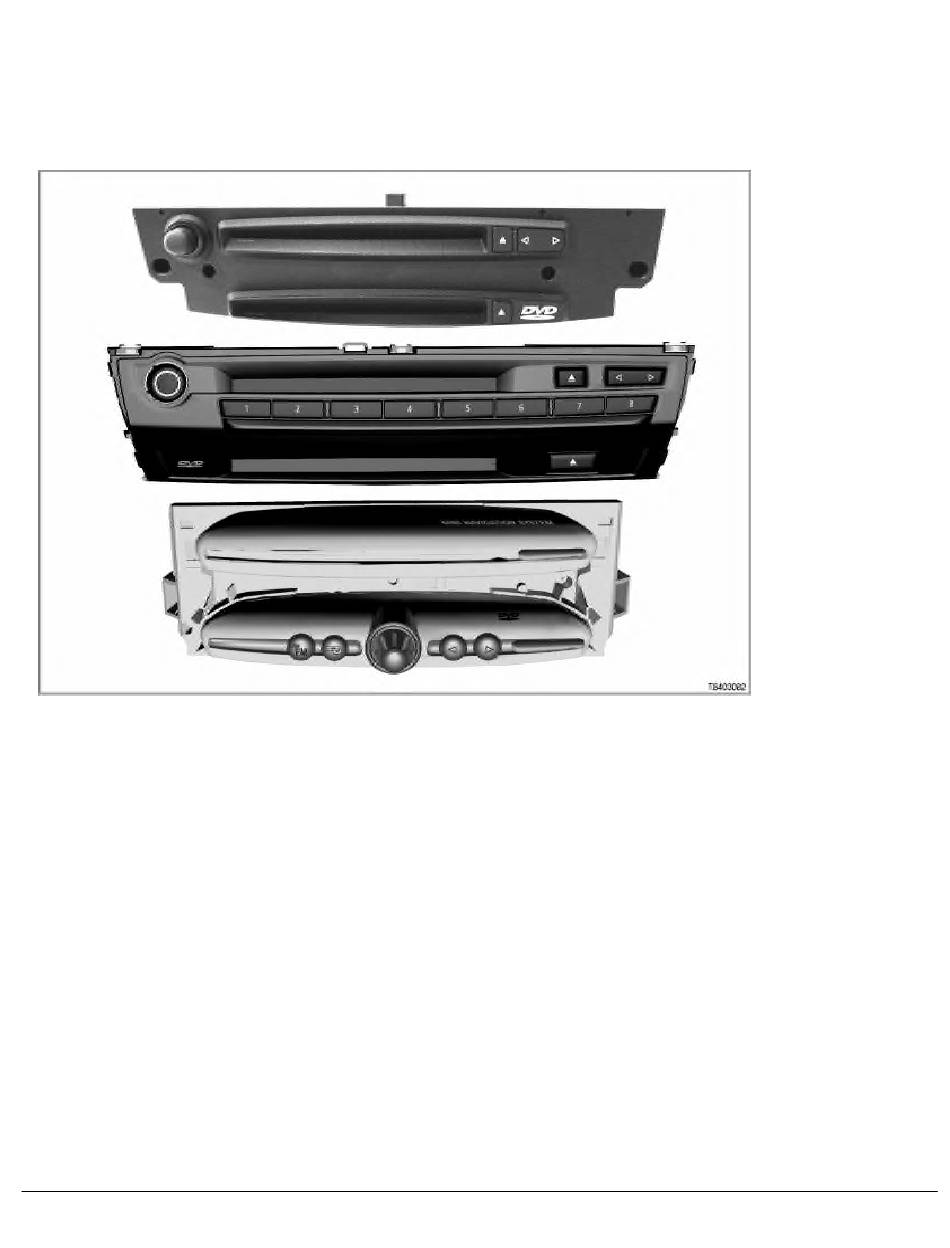

The Car Communication Computer (CCC) is fitted in conjunction with the "Professional" navigation system, voice
recognition system or TV options. Several control units and the CD-ROM/MD/DVD drives are integrated into a single
housing. The CCC controls all information and communication systems.
The Central Information Display (CID) is fitted with the CCC.
-
E60, E61, E63, E64 - [System overview ...]
-
E70: [System overview ...]
-
E87, E90, E91, E92, E93: [System overview ...]
-
R56: [System overview ...]
-
Navigation system "Professional", voice recognition system, TV function, arrangement of boards
[system overview ...]
The CCC has a modular construction. The most important systems in the communications network are integrated as
modules in the CCC. Depending on what is required, the CCC can be configured and extended.
The following functions and interfaces are integrated in the CCC:
-
CCC aerial tuner (CCC-ANT)
Radio reception with the two-tuner radio
-
CCC applications (CCC-A)
"Professional" navigation system with map view
SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56
Issue status (08/2007) Valid only until next DVD is issued
Baugruppe/Group: 84
84 06 03 (053)
weltweit
Datum/Date:
11/2003
Update: 11/2006
BMW AG - TIS
Copyright
31.12.2007 01:05
Page - 1 -
Advertisement
Related Manuals for SBT E60
Summary of Contents for SBT E60
- Page 1 Radio reception with the two-tuner radio CCC applications (CCC-A) "Professional" navigation system with map view SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05 Issue status (08/2007) Valid only until next DVD is issued...
- Page 2 The favourites buttons contain a touch-sensitive capacitive sensor. • Short touch (less than 2 seconds): SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05 Issue status (08/2007) Valid only until next DVD is issued...
- Page 3 Most aerials are integrated in the rod aerial, roof-mounted aerial, side window and in the rear window. The aerials supply signals for radio and TV reception and for the remote control. > E87, E90, E91, E92, R56: [For further information, please refer to SI Technology (SBT) 65 02 05 114] GPS aerial The GPS aerial receives signals from the GPS satellites.
- Page 4 Information (e.g. Park Distance Control (PDC)) can be output at the same time as the voice recognition system is in use. SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05...
- Page 5 System functions The following functions are described by the Car Communication Computer (CCC): CCC aerial tuner (CCC-ANT) SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05 Issue status (08/2007) Valid only until next DVD is issued...
- Page 6 Complete display of Europe and US Several scales 1000 km, 500 km, ... Dynamic route planning SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05 Issue status (08/2007) Valid only until next DVD is issued...
- Page 7 Transportation from the Dingolfing factory. Return transport from abroad in the case of damage. Transporting the vehicle on a train. SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05...
- Page 8 MOST bus. Any operating fault in the network or any deviation from the target configuration is stored in a fault memory for the MOST bus. CCC user interface SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05...
- Page 9 In the Japanese version, the Car Communication Computer does not have a yaw-rate sensor or a HIP module. Subject to change. SBT Car Communication Computer E60, E61, E63, E64, E70, E87, E90, E91, E92, E93, R56 BMW AG - TIS 31.12.2007 01:05...
