SBT US E60 Manual

H.-U. Moebius VS-22
Car phone, US
E60

Introduction

The US version of the E60 is equipped as standard with a TCU (Telematic Control Unit). The transmitter/receiver
module NAD (Network Access Device) installed in the TCU works with the following standards:
- Analogue: AMPS (American Mobile Phone Standard), with frequency 800 MHz
- Digital: CDMA (Code Division Multiplex Algorithm), with frequencies 800/1900 MHz

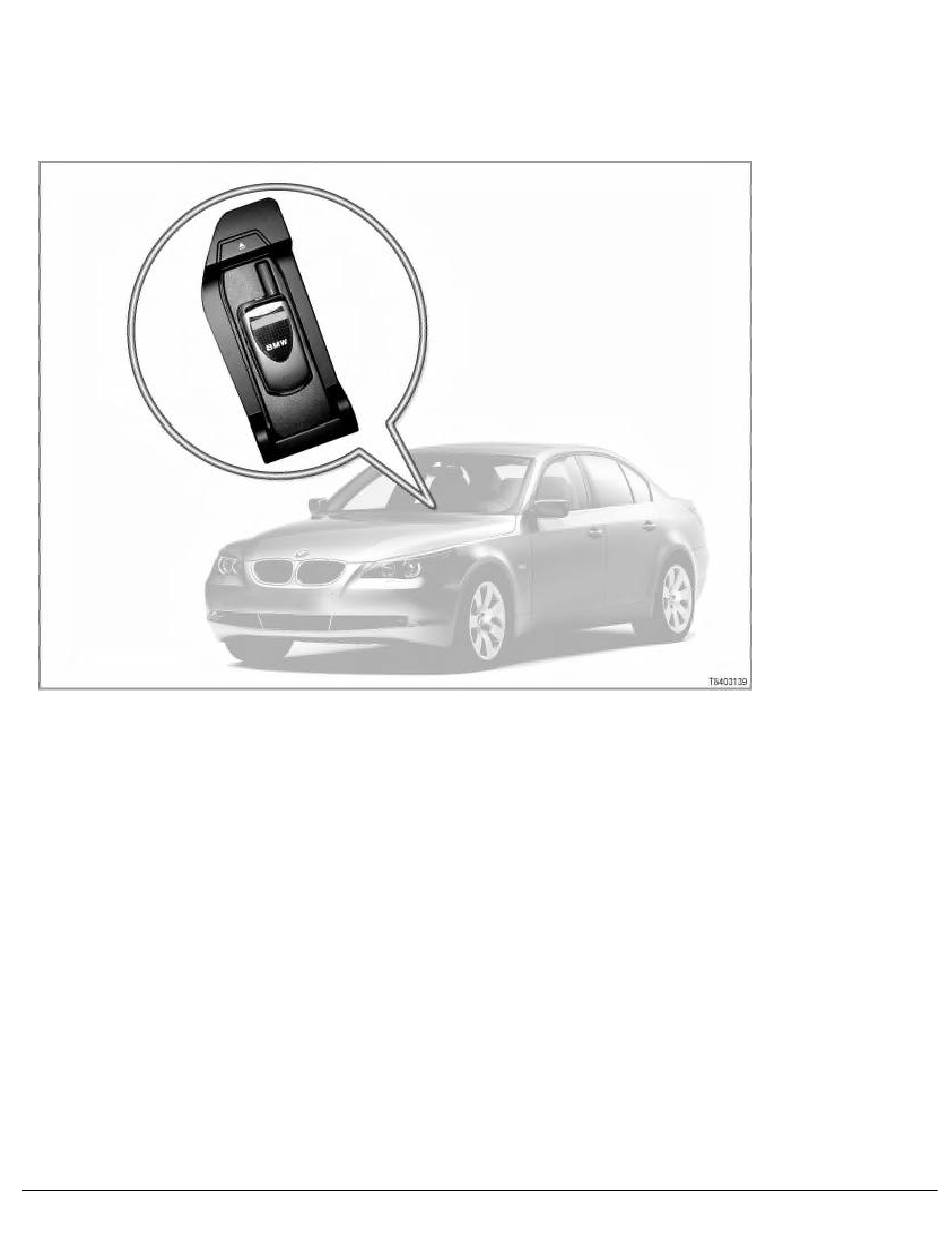

The TCU supports telematics services with option 639 "Complete basic fittings, USA/CDN". With option 639, the
customer also receives the Motorola V60i mobile phone and the eject box as accessories.
[System overview ... ]

Brief description of components

Controller

-
The Controller is used to call up the menus and submenus shown on the CID (Central Information Display).
The menus and submenus are selected by turning and/or pushing the Controller.
Note: to call up the start menu, press the MENU button under the Controller.
From any menu or submenu: pressing the MENU button will always call up the start menu. Exception: 5th i
menu! Here, it may be necessary to press the MENU button repeatedly a number of times.

Microphones for hands-free mode and voice commands

-
The hands-free microphone is installed in the middle-left of the front headlining and is used to input voice
