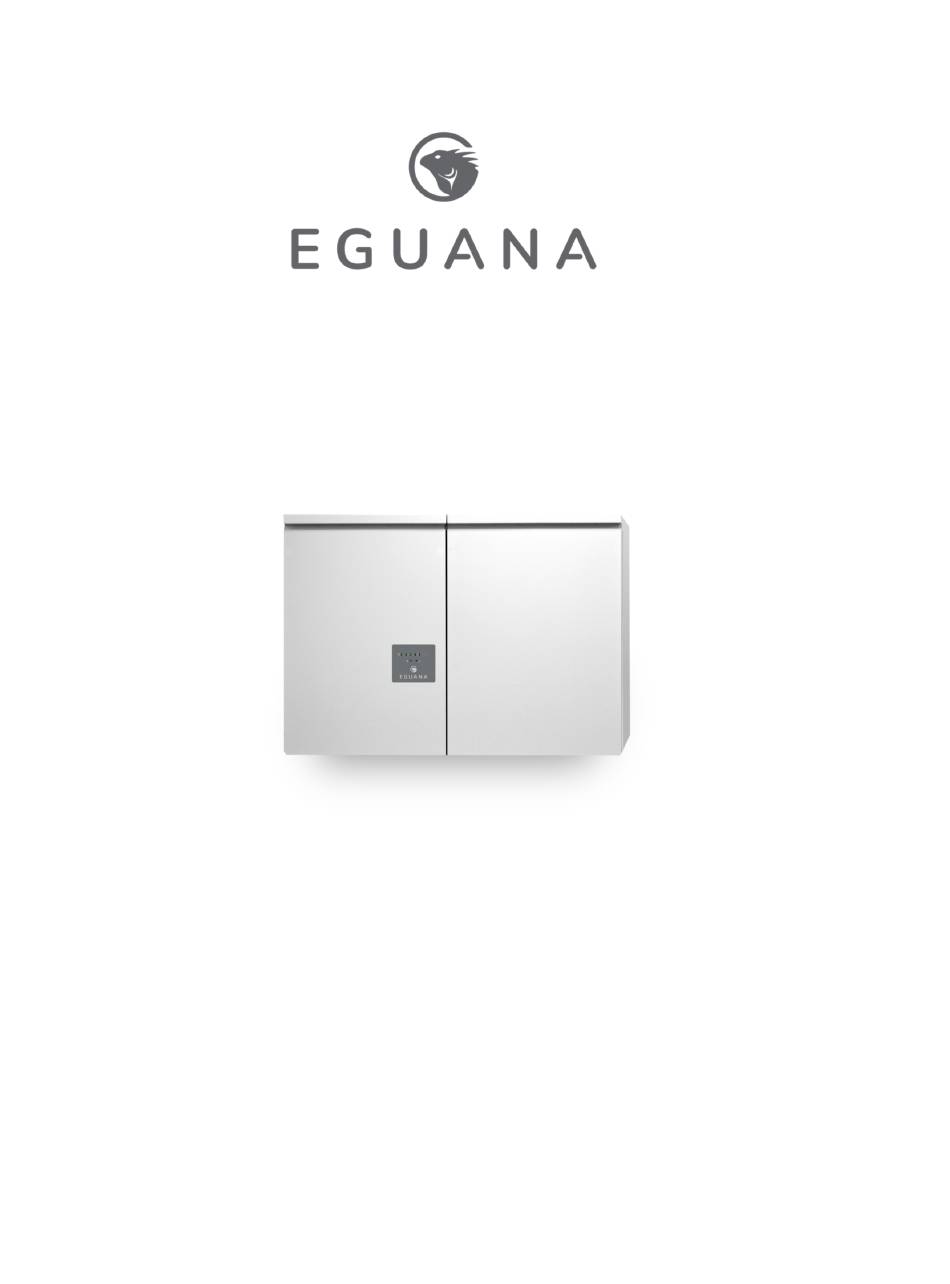

- Page 1 Models Evolve ESS AUS Evolve 0513 Owner’s Manual...
- Page 2 This manual contains important product information for your Evolve home energy storage system. This document is accurate at the time of publishing. Eguana reserves the right to make updates to the product without notice. For the latest Evolve documents, please visit our website at www.eguanatech.com WARNING! Read this document in its entirety before using this product.
-
Page 3: Table Of Contents
Table of Contents Contents 1 SAFETY ....................................1 1.1 I ............................1 N CASE OF EMERGENCY 1.2 G .......................... 2 ENERAL SAFETY PRECAUTIONS 1.3 E ..........................2 NVIRONMENTAL PROTECTION 2 INTRODUCTION ................................... 3 2.1 O ................................3 VERVIEW 2.2 S –... -
Page 4: Safety
1 Safety Throughout this manual, the following symbols will be used to highlight important information and procedures: Symbol Definition WARNING! A dangerous voltage or other condition exists. Use extreme caution when performing these tasks. CAUTION! This information is critical to the safe installation and or operation of the system. Follow these instructions closely. -
Page 5: General Safety Precautions
1.2 General safety precautions Important! Never operate the system in a manner not described by this manual. Only qualified personnel should service this product. Risks of Fire Do not expose the system to temperatures exceeding 45 degrees Celsius. Avoid installation in direct sunlight. Do not store objects on top of the cabinet. -
Page 6: Introduction
2 INTRODUCTION 2.1 Overview This manual contains instructions for the operation of the Eguana Evolve™ home energy storage system. This product, when installed, is permanently wired to the home electrical panel. There are two main components as shown below, including the energy storage system (1), and the energy meters installed in the main electrical panel (2). -
Page 7: System Monitoring - Account Setup
2.2 System Monitoring – Account Setup To view your system online, download the SwitchDin Smart Energy app (available in IOS & Android) and enter the login credentials provided in the account invitation email issued by your installer. Alternatively, access the monitoring system via web-browser @ https://pwa.switchdin.com/account/login 3 Operation The Evolve home energy storage system is fully automated. -
Page 8: Service Button
3.2 Service Button The service button can be used to wake the LED display, and either put the system into or out of service mode, as well as cycle through various operating modes. IMPORTANT! In the event that the system has gone out of service, please consult your installer for guidance. -
Page 9: Restarting The Battery System After Low Battery Shutdown
5.2 Restarting the battery system after low battery shutdown The system will shutdown when the battery reaches a critically low level during backup operation. To restart the system: IMPORTANT! Direct sunlight is required to charge the battery. If the battery system is installed without PV connected to the backup panel, do not attempt the restart. -
Page 10: Troubleshooting
6 Troubleshooting System faults are reported and logged in the monitoring system. All fault logs are also accessible remotely by your installer. Contact your system installer as recommended below if any of the following conditions are present on the front display of the inverter panel. PCS indicator status Definition Service light ON in grid mode...
