CPG Salamander 351S36SBL36K User Manual

Gas broiler
Hide thumbs Also See for Salamander 351S36SBL36K:

Advertisement

Quick Links

User Manual
351S36SBL36K, 351S36SBL60K, 351S36SBLWK,
351S36SBN36K, 351S36SBN60K, 351S36SBNWK

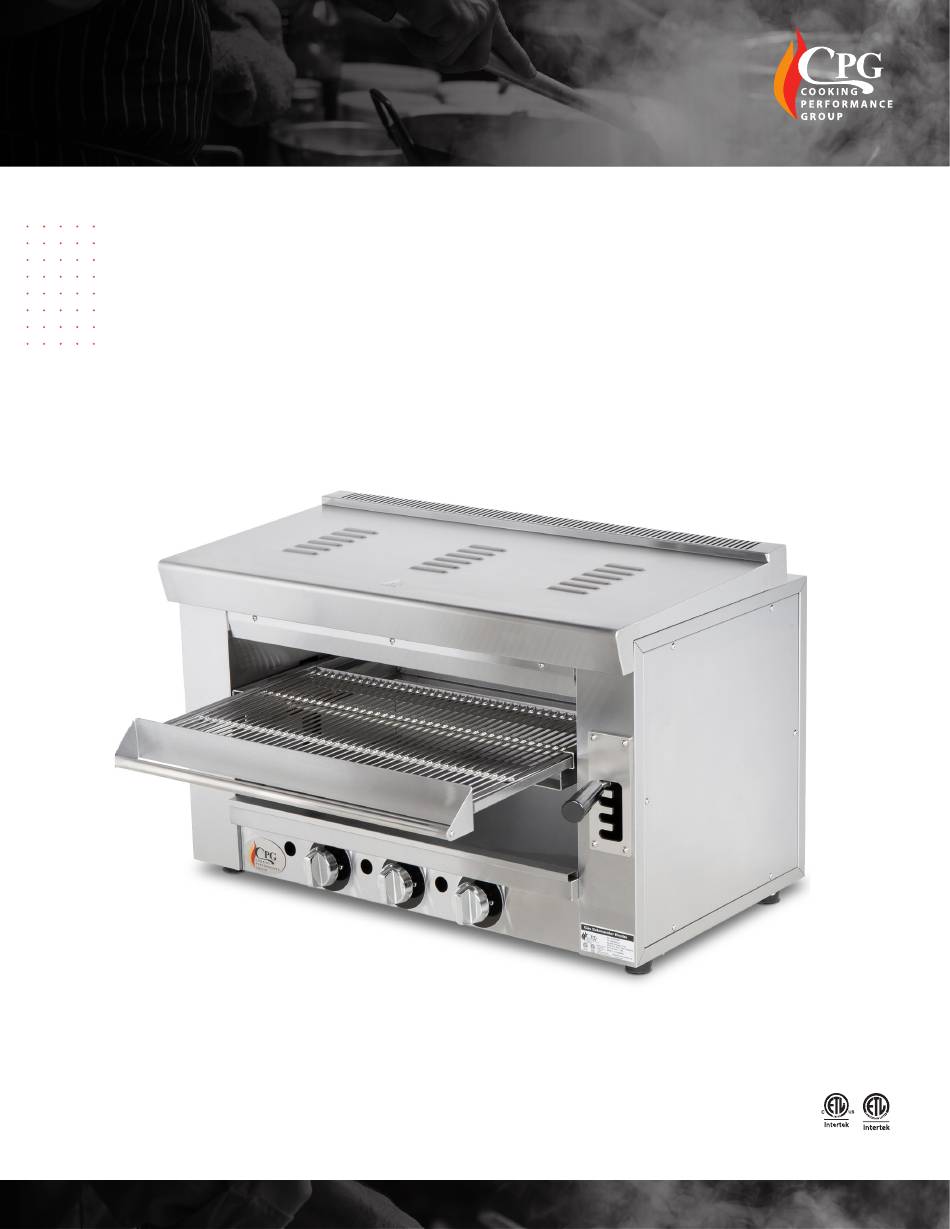

Salamander
Gas Broiler
Cooking Performance Group
https://www.cookingperformancegroup.com/
.
4003027
REVISED 06/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Salamander 351S36SBL36K and is the answer not in the manual?

Questions and answers

Summary of Contents for CPG Salamander 351S36SBL36K

  • Page 1 User Manual 351S36SBL36K, 351S36SBL60K, 351S36SBLWK, 351S36SBN36K, 351S36SBN60K, 351S36SBNWK Salamander Gas Broiler 4003027 REVISED 06/2022 Cooking Performance Group https://www.cookingperformancegroup.com/...
  • Page 2: Table Of Contents

    Troubleshooting ......13 Product Overview The CPG 351S36SB 36” Gas Salamander allows you to quickly and easily brown the top of casseroles, melt cheese, toast sandwiches, or even finish steaks and other meats! It is equipped with a gas-fired 36,000 BTU atmospheric infrared burner with an adjustable gas valve and a continuous pilot for instant ignition.
  • Page 3: Safety Precautions

    Improper installation, adjustment, alteration, service or maintenance could lead to property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing CPG equipment. This manual must be retained for future reference. • A fully licensed installer must handle all maintenance and repair.
  • Page 4: Assembly Instructions

    User Manual Assembly Instructions Item Photo Measurement Bolt A M8 x 24 Bolt B M8 x 60 Bolt C 4-15 Lock Washer Flat Washer STACKING 36" WIDE RANGE Remove A bolts (x4), flat washers (x4), and lock washers (x4) from backside of backsplash. Keep flat washers (x2), and lock washers (x2) for step 15.
  • Page 5 User Manual Remove C bolts (x6) from backside of Remove and discard top Remove original support shelf from backsplash. backsplash and remove C bolts (x4) from brackets (x2) and back plate backside of support brackets. Keep C assembly from range. Discard bolts (x10) for steps 6 and 14.
  • Page 6 User Manual Attach L-shaped brackets Before installation of the salamander, (x2) to back side of salamander remove the outer plastic film. Remove using the A bolts (x4), flat and discard rubber feet from salamander washers (x4), and lock washers (x4). (x4).
  • Page 7 User Manual Secure support brackets and Attach heat shelf to backsplash using B bolts (x2), flat washers (x2), and lock back plate assembly to back of range using C bolts (x6). washers (x2). 60" WIDE RANGE Select a side to mount the salamander to the range. It cannot be mounted in the center. Follow the same procedure as the 36”...
  • Page 8: Specifications

    Please install the included CPG gas regulator. Failture to install this regulator may result in a voided warranty. This unit is only applicable to a low-pressure gas regulating valve. It may cause property loss or safety accidents if a high or medium pressure regulating valve is used.
  • Page 9: Gas Connection & Elevation Guide

    User Manual After connecting the unit to the gas system, check for leaks at joints and pipe fittings using soapy water. This unit should be installed under a vent hood in compliance with all applicable regulations. After installation please keep the appliance stable and level. Do not tilt or sway during operation. Please refer to the spec table on page 8 for the official clearances for this unit.
  • Page 10: Exhaust Sytem & Operating Instructions

    User Manual Exhaust System This unit must be installed in accordance with all applicable hood regulations. This unit is not designed to be direclty connected to an evacuation duct for the discharge of combustible products. The room where the equipment is installed must be fitted with air intakes to guarantee the correct operation of the unit and air exchange.
  • Page 11: Lighting Instructions

    User Manual Lighting Instructions To light the unit, ensure that all the valves of the gas pipeline have been switched on. Arrange the drip pan, baking pan and broiler rack at appropriate places. Turn all knobs to the “OFF” position. Hold an ignition source (match) at the pilot.
  • Page 12: Cleaning & Maintenance

    User Manual Cleaning & Maintenance WARNING: Please provide time for the unit to cool prior to cleaning and maintenance to prevent injury. Pull out the rack assembly and detach the rack from the frame. Clean them separately before re-installing. Care should be taken during cleaning to prevent the enameled grill from being damaged. Remove the drip pan for cleaning.
  • Page 13: Troubleshooting

    User Manual Troubleshooting Symptoms Causes Solutions 1. Plug or plug cord of igniter is 1. Replace relevant fittings. damaged. 2. Regulate the reducing valve or contact 2. Pressure in the gas pipeline is too low. the gas supplier. 3. The pilot nozzle is blocked. 3.
