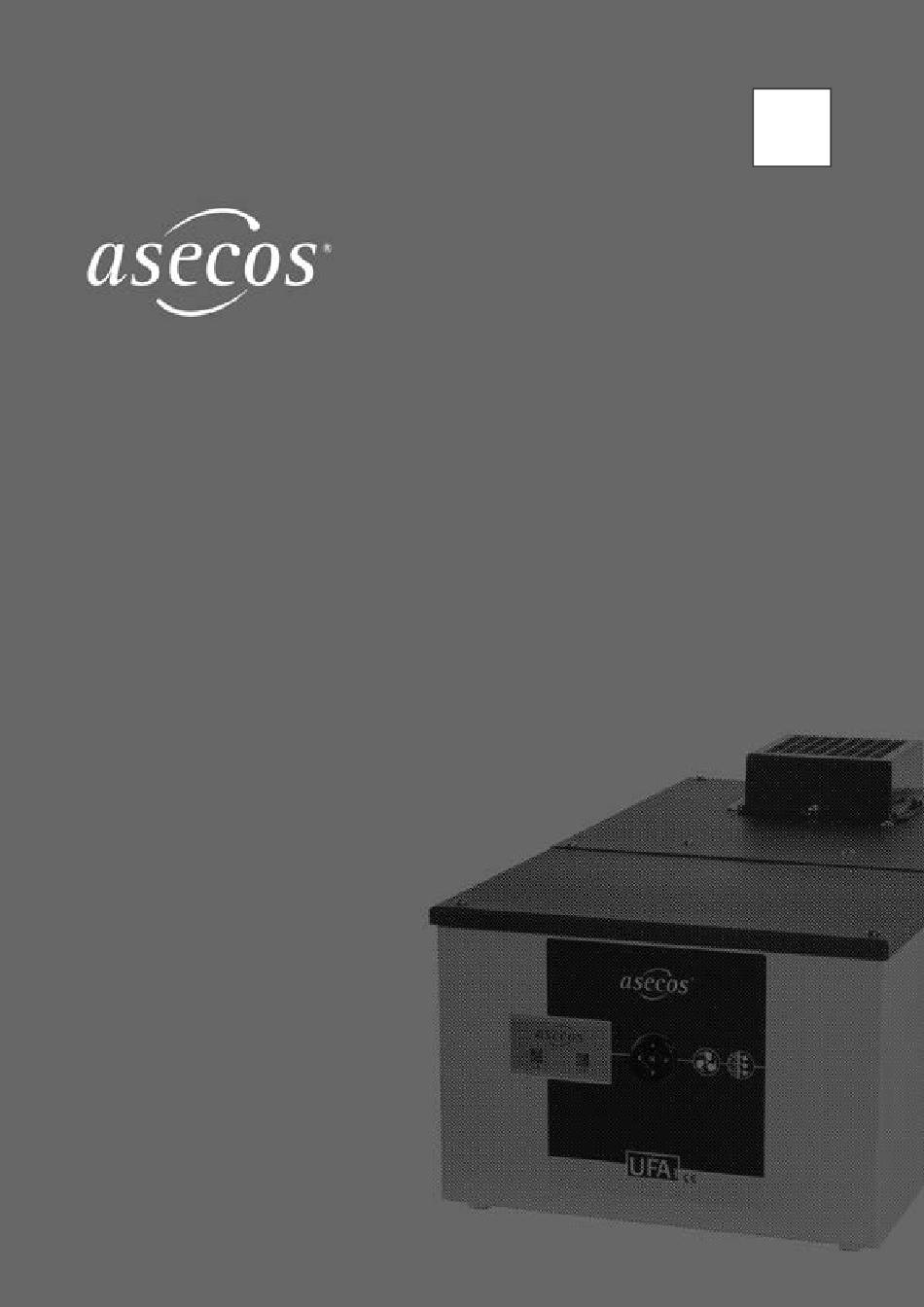

- Page 1 EP.V.34660.01 | 05/2022 USER MANUAL Recirculating air filter unit UFA.025.030(.XL)
-
Page 2: Table Of Contents
1. NOTES • GUIDELINES • GUARANTEE ..........3 1.1. -
Page 3: Notes • Guidelines • Guarantee
The guarantee for this product is agreed between you (the customer) and your dealer (the seller). As the manufacturer, asecos guarantees the products listed in the operating instructions for a period of 24 months from the date of delivery. All model safety equipment are subject to a compulsory annual inspection by spe- cialised staff authorised by the manufacturer. -
Page 4: Construction And Function
2. CONSTRUCTION AND FUNCTION 2.1. MATERIAL 7016 7035 INFO: The housing is made of powder-coated fine sheet steel 2.2. ACCESSORIES • Activated carbon main filter incl. suspended matter pre-filter (order no. 40201), housing ABS/galvanised sheet steel, filling activated carbon (approx. 3500 gr). •... -
Page 5: Potential-Free Alarm Contact
2.5. POTENTIAL-FREE ALARM CONTACT To use the potential-free alarm contact, the three-pole plug supplied must be used. The contact is designed for a maximum direct voltage of DC 30 V or an alternating voltage of AC 230 V. The maximum current carry- ing capacity is 10 A. -
Page 6: Self-Test
3.2. SELF-TEST ATTENTION: The unit is designed for continuous operation! PLEASE NOTE: As soon as the unit is connected to the mains, a self-test begins during which all safety-relevant compo- nents are checked. If there is a fault, the unit will not start. An error F7 is displayed alternating with the relevant faulty safety element F1-F4. -
Page 7: Overview Of The Menu Icons
4.2. OVERVIEW OF THE MENU ICONS Symbols in the active screen Volume flow OK Filter saturation OK Symbols in the main menu Information Settings submenu Exit current display Symbols in the Settings menu and sub-items Set contrast Carry out filter change Set air monitoring Replace sensor Exit current display... -
Page 8: Set Display Contrast
4.4. SET DISPLAY CONTRAST > NOTE The system automatically switches to the normal display when there is no activity or no input. 5. MALFUNCTIONS • ACTIONS Malfunction Problem - Measure Note - be sure to observe! Pressure difference across the filter too low. Please check the air outlet. -
Page 9: Repairs
(red screen) is shown. The filter can only be replaced by one of our trained service technicians and must be requested promptly on the service hotline. Filter replacement by asecos service personnel ensures that the contaminated activated carbon is fed into a defined disposal chain. 7.1. SENSORS AND MONITORING ELECTRONICS The UFA contains sensitive sensors and complex monitoring electronics. -
Page 10: Technical Data
8. TECHNICAL DATA UFA.025.030 UFA.025.030.XL External dimensions W x D x H 308 x 555 x 256 308 x 555 x 256 Nominal voltage 85-265 85-265 Frequency 50/60 50/60 Weight Power consumption in operation Maximum current consumption 0.13 0.13 Max. volume flow m³/h... -
Page 11: Atex Marking
10. ATEX MARKING II 3/- G Ex ic nA IIB T4 Gc Marking of EX-protected units Equipment group according to RL 2014/34/EU II Not underground operation Ignition protection types Ex ic Intrinsic safety with the protection level “ic” - not capable of causing ignition in undisturbed operation nA non-functioning Explosion groups according to EN 60079-0: 2019-09 IIB the group has a limiting gap width (MESG) 0.5-0.9 mm, suitable e.g. - Page 12 +34 902 300385 +34 902 300395 info@asecos.es asecos Ltd. asecos asecos Schweiz AG Safety and Environmental Protection Safety and Environmental Protection Inc. Sicherheit und Umweltschutz 5 Eastgate Business Centre 19109 West Catawba Avenue, Suite 200 Gewerbe Brunnmatt 5...
