– INSTRUCTION MANUAL –
MATIN TABLE LAMP
DESIGN BY INGA SEMPÉ

Advertisement

loading
Need help?

Need help?

Do you have a question about the MATIN and is the answer not in the manual?

Questions and answers

Summary of Contents for Hay MATIN

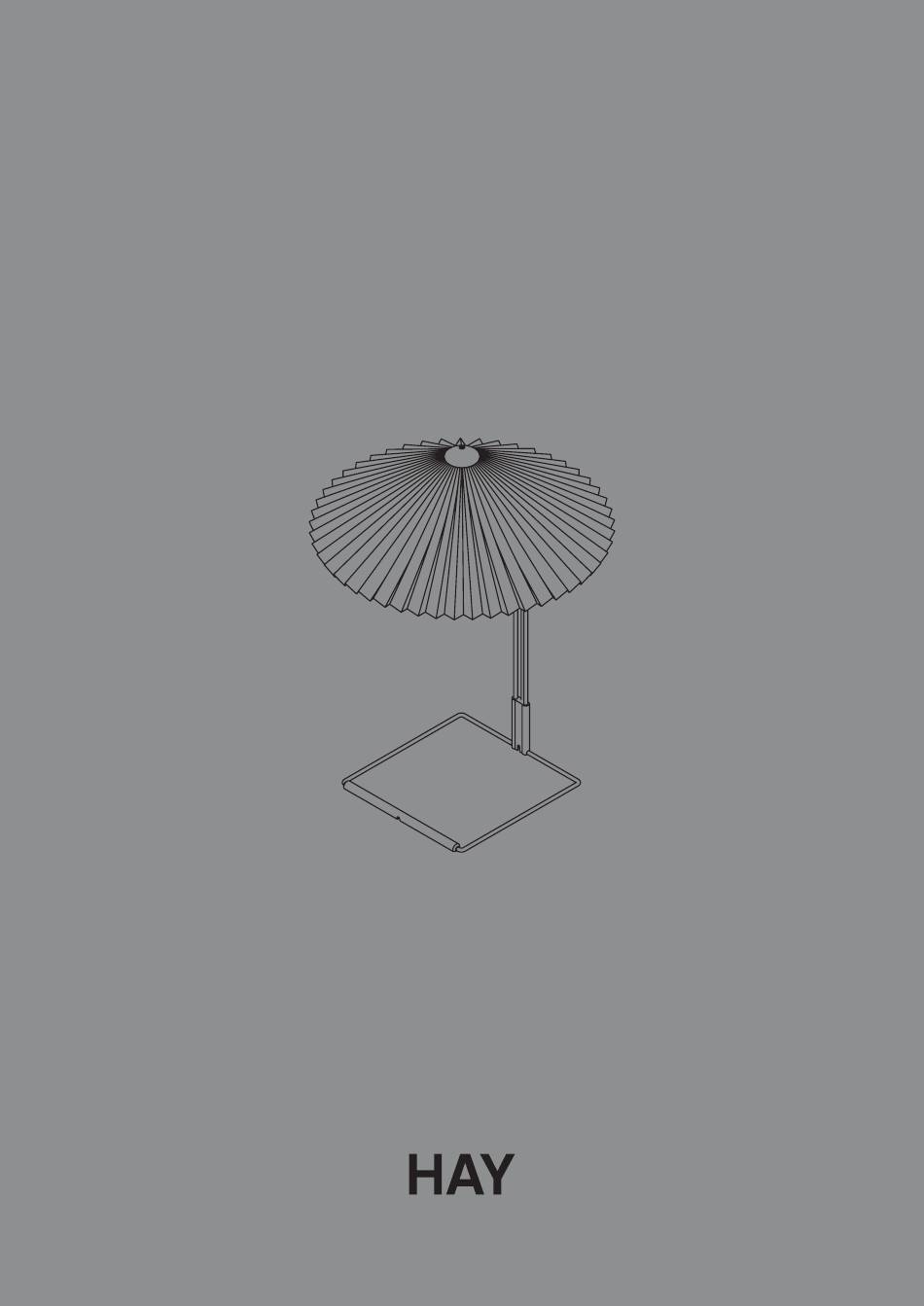

  • Page 1 – INSTRUCTION MANUAL – MATIN TABLE LAMP DESIGN BY INGA SEMPÉ...
  • Page 3: General Information

    The product must not be modified in any way. HAY accepts no responsibility for any products that have been modified or tampered with. The external flexible cable or cord of this luminaire cannot be replaced.
  • Page 4 – PARTS – Body Base Shade Top screw Allen key Adapter Power supply...
  • Page 5 Unpack all the parts and check that you have received all the parts listed. Screw the top screw into the top cap, as shown below. Do not fully screw it in place yet.
  • Page 6 Slide the stem onto the base frame, as shown below.
  • Page 7 Insert the set screw into the back of the connecting piece and screw it firmly in place, using the supplied tool. You will find the set screw and tool in the small bag.
  • Page 8 Clip the cable into the cable clip, which is located on the stem, and in the groove on the back of the connecting piece at the bottom of the stem.
  • Page 9 Remove the shade from its packaging and spread out the bottom while simultaneously pushing it down over the top screw, so that it rests on top of the top cap. Gently push the top of the pleated shade underneath the top screw, so that it is wedged between the top screw and top cap.
  • Page 10 Once the shade is in place, gently adjust the pleats at the top so they are evenly spread out, as shown below. Once the shade is as illustrated, the top screw can be fully tightened.
  • Page 11 The lamp’s inline switch has a three-step dimmable feature. The first push sets the lamp to maximum brightness, the second push to medium brightness and the third push to lowest brightness. The fourth push turns the lamp off. 100%...
  • Page 12 Plug the trailing cable into the power supply. Attach the correct adapter for your region. The lamp is now ready for use.
  • Page 13: Care And Maintenance

    Please find our Care & Maintenance guide by scanning the QR code You can find more relevant information on Matin Table Lamp by scanning the QR code You can also find the same information here hay.dk/downloads...
  • Page 16 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com www.hay.com 03/01/2022...
