Edwards 2010-2-PAK-900 Registration Manual

2010-2-PAK-900 Panel Activation Key
Registration Guide
EN CS DA DE ES FI
EN: Registration Guide

Description

The 2010−2-PAK-900 Panel Activation Key (PAK) enables the
900 Series protocol on compatible addressable control panels
with firmware 3.1 or higher.
Note: A new PAK is required for each control panel that
requires the 900 Series protocol.

Registration

Follow these steps to register or unregister the PAK. Installer
level access is required.

To register the PAK:

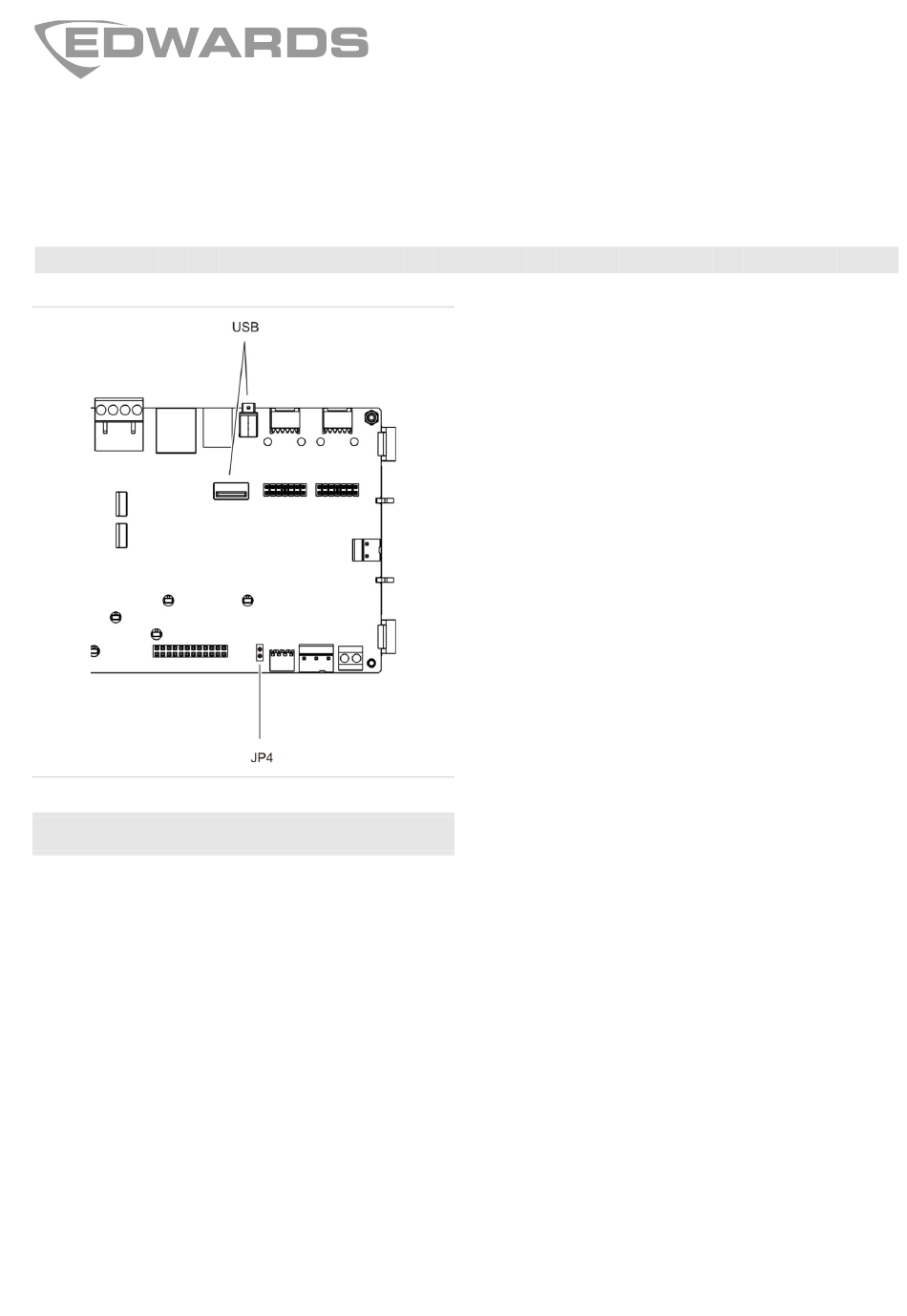

1. Insert the PAK into either of the USB type A slots on the
control panel main board (see figure).
© 2014 UTC Fire & Security. All rights reserved.
FR HU IT NL NO PL PT RO RU SK SV TR
2. On the control panel LCD, select Panel Setup, and then
select Panel Activ. Key.
The LCD displays two options: Register New PAK and
Unregister PAK.
3. Select Register New PAK. The PAK information is
displayed on the LCD. Confirm that the details are correct
and press Continue.
The PAK information includes: The PAK type, the PAK
serial number, and the host control panel serial number
(added when registration is complete).
4. Press Register, and then press Yes to confirm the
registration.
5. Press Apply to apply the registration details to the panel,
or Continue to register more PAKs for the same control
panel.

To apply the 900 Series protocol:

1. Remove the PAK from the USB slot.
2. Insert a jumper onto JP4 on the control panel main board
(see figure), and then restart the control panel.
When the panel restarts, the System Update menu is
displayed. This menu is only available in English.
3. Select Load 900 Series Protocol, and then press the jog
dial to confirm the selection.
4. When the update is complete, press Reboot to restart the
control panel.
The control panel is now configured to use the 900 Series
protocol and devices.

To unregister the PAK:

1. Insert the PAK into either of the USB type A slots on the
control panel main board (see figure).
2. On the control panel LCD, select Panel Setup, and then
select Panel Activ. Key.
3. Select Unregister PAK and follow the on-screen
instructions.

To restore the default protocol:

1. Remove the PAK from the USB slot.
2. Insert a jumper onto JP4 on the control panel main board
(see figure), and then restart the control panel.
When the panel restarts, the System Update menu is
displayed. This menu is only available in English.
1 / 20 P/N 501-324300-1-10 • REV 01 • ISS 26FEB14
