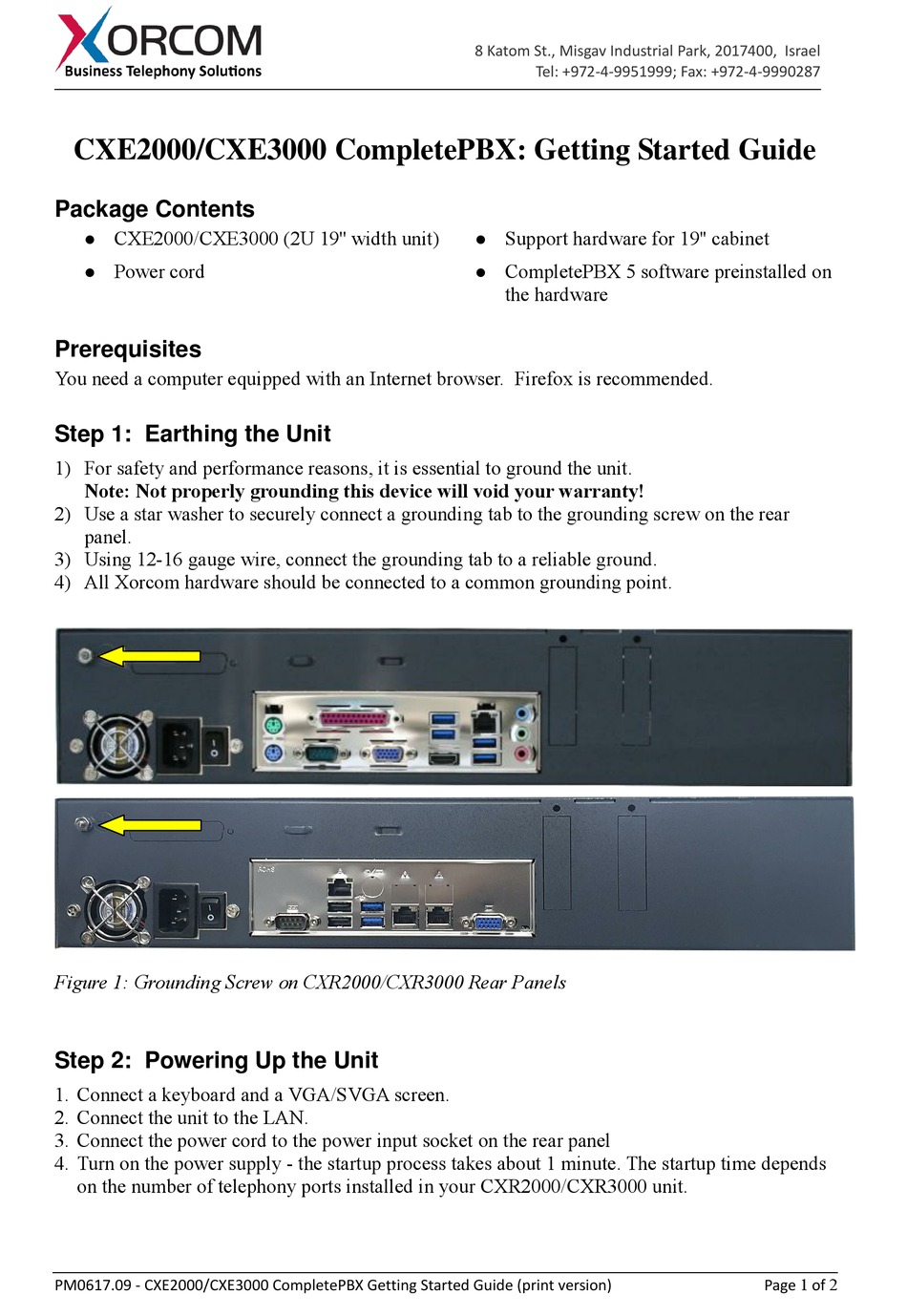

CXE2000/CXE3000 CompletePBX: Getting Started Guide

Package Contents

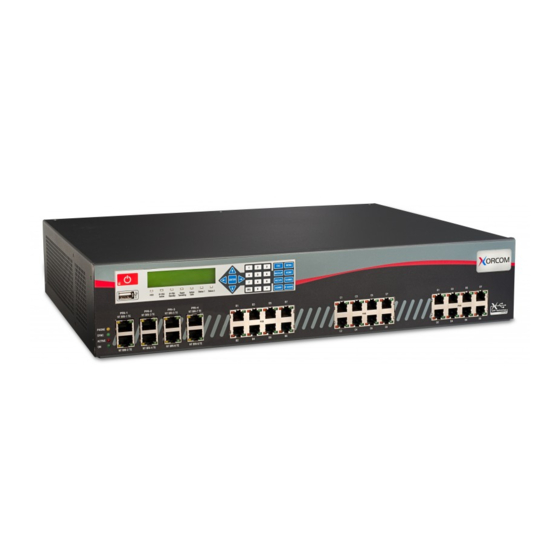

CXE2000/CXE3000 (2U 19'' width unit)

Power cord


Prerequisites

You need a computer equipped with an Internet browser. Firefox is recommended.

Step 1: Earthing the Unit

1) For safety and performance reasons, it is essential to ground the unit.
Note: Not properly grounding this device will void your warranty!
2) Use a star washer to securely connect a grounding tab to the grounding screw on the rear
panel.
3) Using 12-16 gauge wire, connect the grounding tab to a reliable ground.
4) All Xorcom hardware should be connected to a common grounding point.
Figure 1: Grounding Screw on CXR2000/CXR3000 Rear Panels

Step 2: Powering Up the Unit

1. Connect a keyboard and a VGA/SVGA screen.
2. Connect the unit to the LAN.
3. Connect the power cord to the power input socket on the rear panel
4. Turn on the power supply - the startup process takes about 1 minute. The startup time depends
on the number of telephony ports installed in your CXR2000/CXR3000 unit.
