Summary of Contents for Advanced Kiosks Aegic Desk

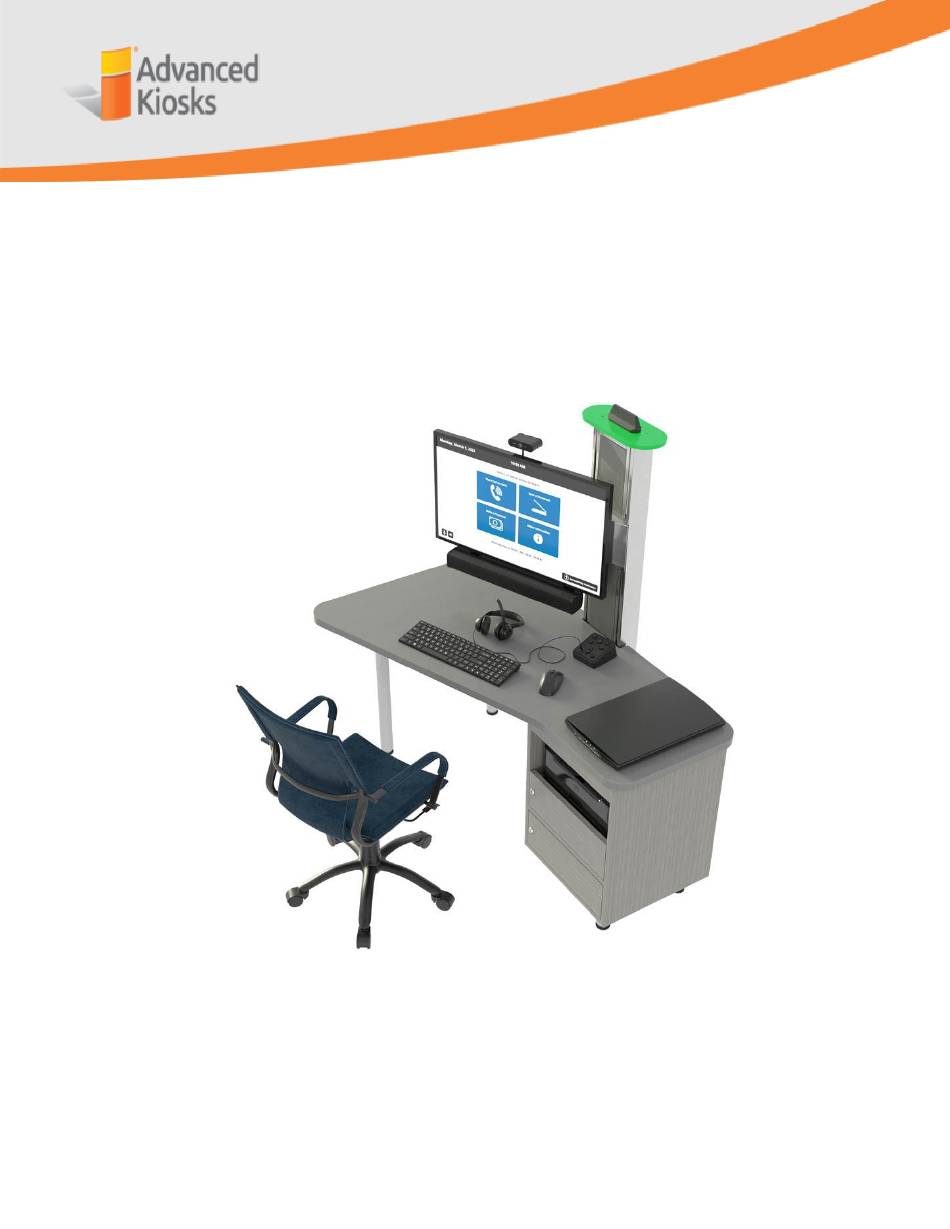

- Page 1 Aegis Desk Owner’s Manual Aegis Desk Owners Manual v1a www.advancedkiosks.com...
-
Page 2: Table Of Contents
Introduction Product Description Features Precautions Installation Prerequisites for Hardware Installation Shipping Considerations Space Requirements Other Location Requirements Installing Optional Hardware Setup and Usage Setting up The Desk Using the Aegis Desk Using the hardware Cabinet Access Specifications Component Overview Power and Operating Environment Power usage Maintenance and Troubleshooting General Maintenance... - Page 3 Aegis Desk Owners Manual v1a www.advancedkiosks.com...
-
Page 4: Introduction
Introduction Product Description The Aegis Desk is a complete workspace computer system. The Aegis is equipped with many features that provide a comfortable, seated self service experience. The Aegis Desk is designed for use cases that require long duration interaction with your end customer. Features The Aegis Desk has many features. -
Page 5: Precautions
Precautions ● The Aegis Desk contains electrical systems that were designed for US electrical infrastructure only, unless stated otherwise. 110-120VAC, 50-60Hz ● Do not plug in the power until all the directions have been read and the Desk is fully assembled ●... -
Page 6: Installation
Installation The Aegis Desk ships to your location mostly assembled. The desk will require two or more strong individuals to remove it from the crate and place it in its location. Once the Desk is in its final location and all foam and packing materials have been removed, it can be plugged into a standard wall socket. -
Page 7: Space Requirements
GFCI circuitry. In addition to power requirements, the desk will require an internet connection to operate. The Aegis Desk features both ethernet and WiFi capabilities. Advanced Kiosks recommends an ethernet connection whenever possible to eliminate weak signals or loss of internet. -
Page 8: Setting Up The Desk
Setting up The Desk The Aegis is shipped to your location assembled. Transit mishaps may damage parts during shipping that would not be immediately apparent. It is necessary to go over each item with your install team BEFORE they leave the location. Verify power on the Desk by plugging both outlets/plugs into a suitable AC outlet. -
Page 9: Using The Aegis Desk
Using the Aegis Desk You now have an installed and configured Aegis Desk. Congratulations! Now how do you use it? The following section describes how to use the Aegis Desk hardware. Using the hardware The Aegis comes equipped with many standard hardware features that enhance the user experience. -
Page 10: Specifications
Specifications The following section contains information about the various pieces that comprise an Aegis Desk as well as environmental and power considerations. For dimensions, request drawings for H32-320-C-desk. Component Overview Part Name Part description Power/data Image of part Desk and cabinet Finished wooden Wooden assembly... - Page 11 Speaker bar Zvox AV102 10” AC adapter, assembly 12V, 1A speaker bar with voice boost and mounting bracket. Webcam and 4K capable USB power, microphone webcam with assembly integrated microphone and mounting hardware. Keyboard and mouse High contrast USB, 5V, <500mA keyboard and generic computer...
- Page 12 Printer Full size AC, 120V, <1A monochrome laser printer Optional integrated paper detection system Document scanner Multi-page AC, 120V, <1A document scanner mounted to table. Aegis Desk Owners Manual v1a www.advancedkiosks.com | 12...
-
Page 13: Power And Operating Environment
Power and Operating Environment The Aegis contains components that are designed to operate in a climate controlled space. As mentioned before, the Aegis is NOT to be used in any outdoor scenario. For maximum longevity of the Desk, the following requirements should be met. Temperature Range Maximum humidity 5-35C(40 - 95F) -
Page 14: Maintenance And Troubleshooting
Maintenance and Troubleshooting This section contains information about maintenance of the Aegis and troubleshooting steps to take if you encounter any issues with operation. General Maintenance Printer Maintenance The included laser printer will need consumables replaced periodically. ● Paper will need to be replaced when it runs out. ●... -
Page 15: Desk And Brackets
Desk and Brackets The desktop surface is made with a scratch resistant laminate surface and can be easily cleaned with mild soap and water. For stains or graffiti, something like isopropyl alcohol and a sponge should help. Don’t use harsh abrasive cleansers or cleaning pads. These will dull the laminate finish. -
Page 16: Key Number
Key number: Additional Notes: Aegis Desk Owners Manual v1a www.advancedkiosks.com | 16...
