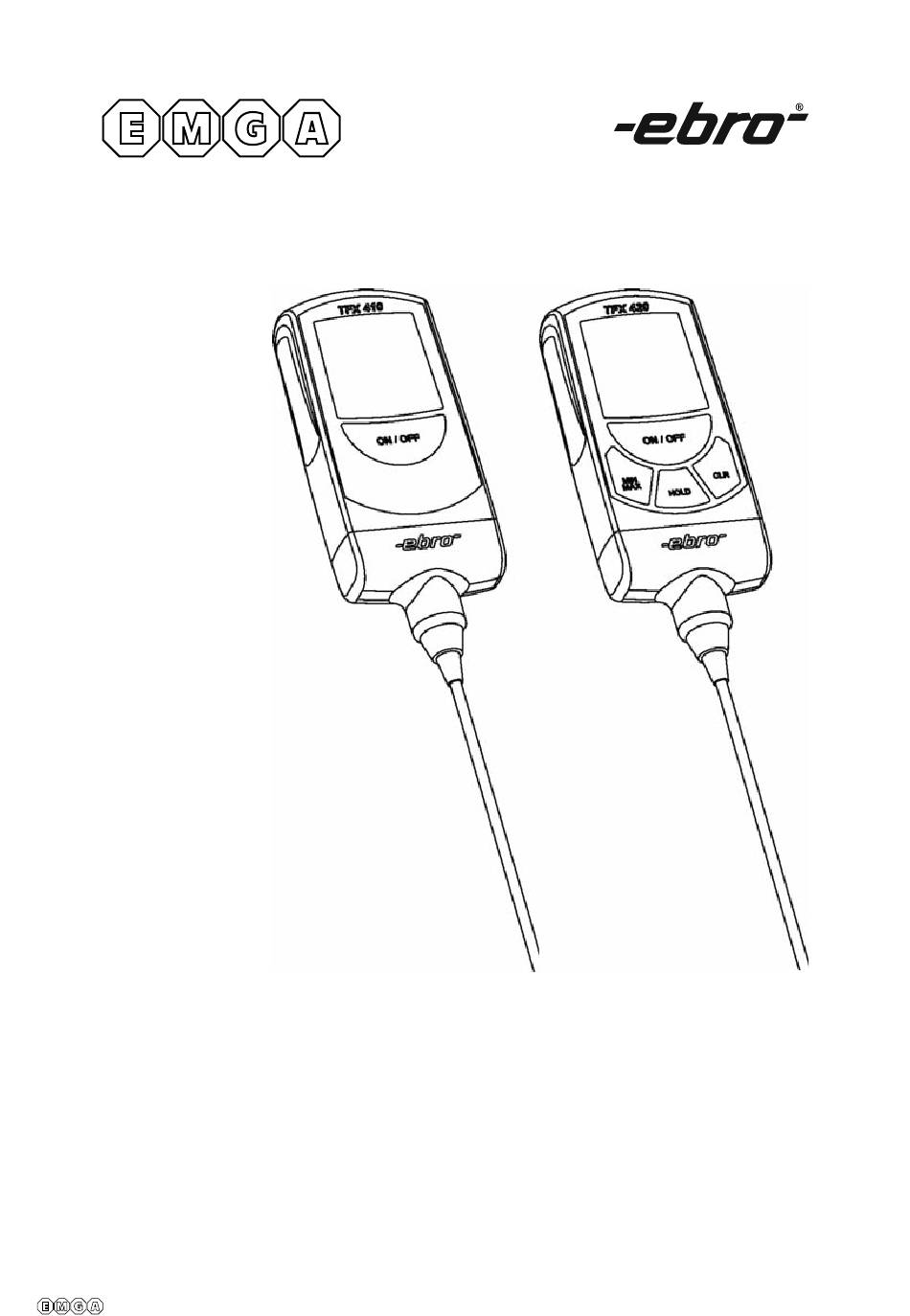

- Page 1 926.001 DIGITAL THERMOMETER - MANUAL Thermometer TFX Serie 926001 en ma 2013...
- Page 2 English TFX Serie Dear customer, Congratulations on the purchase of an ebro product. We hope than you can make use of this pro duct for a long time and that it helps you with your work. Information that are useful and im por- tant for understanding the function are highlighted in the instructions text.
-
Page 3: Table Of Contents
English TFX Serie Table of contents Introduction ..........1.1 General ............. 1.2 Safety instructions ....... 1.3 Precautions ..........Scope of Delivery ........Description ..........3.1 General ............ 3.2 User menu ..........guration options ...... 3.2.2 Menu operation ........Operation ..........4.1 Switching on thermometer ....1 4.2 Display .............1 4.3 Measuring temperature .... -
Page 4: Introduction
English TFX Serie 1 Introduction 1.1 General Please read these operating instructions carefully before using your new precision thermometer. These instructions guide you through working with the thermometer with clear and simple directions. Any information which is useful or relevant in the understanding of the functionality is headlined as such in the instructions. - Page 5 English TFX Serie 1.3 Cautions The thermometer TFX should be protec- ted from the following: Electro Static Discharge “Thermal shock” caused by large or abrupt ambient temperature changes — allow 30 mi- nutes for unit to stabilize before use when exposed to “thermal shock”. Do not leave the unit on or near objects of high temperature.
-
Page 6: Description
English TFX Serie 3 Description Serie 410 3.1 General Powered by a replaceable lithium batte- ry, the precision thermometer is a handy, watertight temperature measurement device for a whole range of measure- ment and control applications in the laboratory and in industry. A micro-processor controls the electro- nics, guaranteeing maximum measu- rement precision and linearity over the... -
Page 7: User Menu
English TFX Serie .2 User menu Follow this procedure to enter configu- ration mode: 2 Pre s s O N / O F F k e y ( 2 ) a n d k e e p depressed. The segment test is dis- played for approx. - Page 8 English TFX Serie RATE: Measurement frequency in seconds, adjustable from 1 s e c o n d u p t o 1 5 s e c o n d s . The value displayed is the pre- set measurement frequency in seconds.
-
Page 9: Menu Operation
English TFX Serie Serie 430 AL HI Upper limit value of desired range °C Press centre key = unblock Press left/right keys = increase/decrease up per limit value Press centre key = store upper limit value and block changes Serie 430 SCAL Activation/Deactivati- on of the special ad-... -
Page 10: Operation
English TFX Serie 4 Operation Serie 410 4.1 Switching on thermome - To switch the thermometer on, keep key »ON/OFF« (2) pressed for approx. 1 second. The device performs a system test rst, displaying all segments used by this thermometer model for approx. 1 second. -
Page 11: Measuring Temperature
English TFX Serie Serie 430 If special adjustment is activated „SCAL“ will be shown in display for a short while. 4.3 Measuring temperature Select the required unit of measurement, °C or °F, from the user menu (chapter 3.2). Position the measuring sensor. Use the measuring sensor only as intended so as to eliminate erroneous measurements. -
Page 12: Retrieving Memory Contents
English TFX Serie Measurement value (only type 420 / 430) The maximum and minimum measu- rement values are stored during a measuring. Delete the content of the measurement value memory before starting a new measuring. 4.4.1 Retr ieving memor y con- tents Press the »MIN/MAX«... - Page 13 English TFX Serie 5 Changing sensor The thermometer has been calibrated 60° gegen den Uhrzeigersinn at the factory. Measurement precision drehen may be impaired erent measu- turn 60° anticlockwise tournez 60° anti horloge sage rement probe is attached 1. Grab the probe cap (with TFX430, go to point 2 directly) at the recessed grip planned for it and turn this 60°...
- Page 14 English TFX Serie 6 Trouble shooting Possible cause Remedy Measuring range Consider exceeded measuring range Probe defective Call service Plugin connection Check jack - plug connection plug has to snap Below Consider measuring range measuring range Short circuit of Call service sensor Disconnected Connect probe...
-
Page 15: Cleaning
English TFX Serie 7 Calibration service In order to guarantee a high measu ring precision, the thermometer must be calibrated every year. Therefore ebro Electronic GmbH & Co. KG offers a calibration service. Fill in the enclosed service card. After one year we will recall your thermometer for calibration. -
Page 16: Replacing The Battery
English TFX Serie 8.3 Replacing the battery The battery symbol on the display (Fi- gure 2 on page 18) indicates that the battery needs to be replaced. Battery operational Battery operational Battery shortly exhausted Battery needs to be re- placed The thermometer must be opened to replace the battery. -
Page 17: Appendix
English TFX Serie Reassemble the thermometer in reverse order, noting the correct tightening tor- que of 0.4 Nm. To ensure device is fully water-tightness, make sure the seal between lower and upper housing is seated correctly in the groove. Finally, do not forget to insert both plastic plugs back into their drill-holes (slightly chamfered surfaces outward). - Page 18 English TFX Serie Technical data Measuring range Series 410............. -50 to +300 °C (-60 to +580 °F) Series 420............. -50 to +400 °C (-60 to +760 °F) Serie 430 ............-100 to +500 °C (-150 to +930 °F) Sensor Series 410/420 ........... Pt 1000 Series 430.............
- Page 19 Konformitätserklärung Conformity declaration Déclaration de conformité ebro Electronic GmbH Peringerstraße 10 D-85055 Ingolstadt erklärt in alleiniger Verantwortung, dass das Produkt declares in sole responsibility that the product déclare sous sa seule responsabilité que le produit Geräteart: T h e r m o m e t e r Typ: Type of device: T h e r m o m e t e r...
