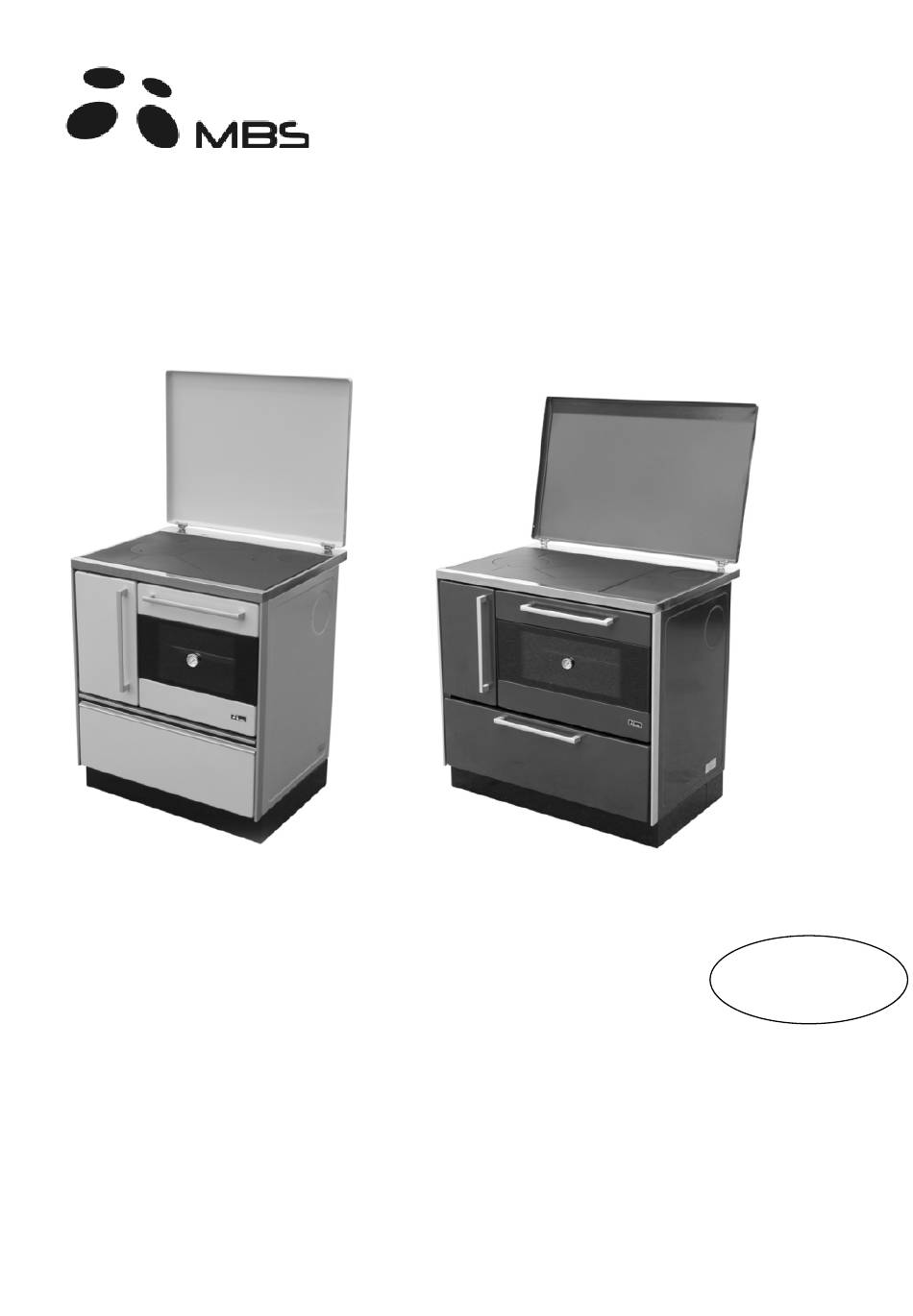

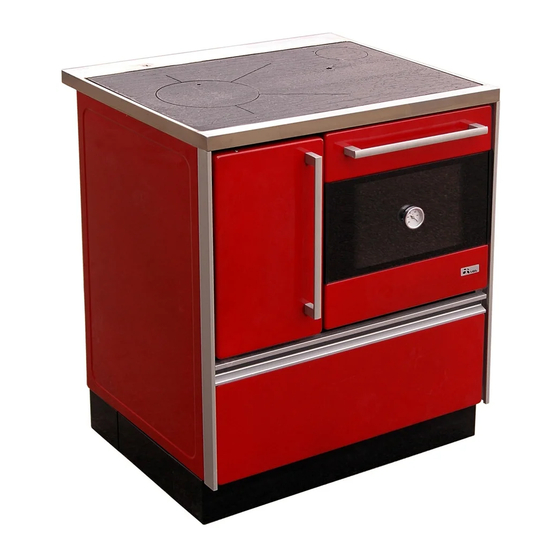

- Page 1 Royal 720 PLUS ECO Royal 900 INSTRUCTIONS MANUAL Solid fuel cooker - Royal 720 PLUS ECO/ Royal 900 PLUS...
- Page 2 DEAR CUSTOMER, We appreciate your trust dedicated to us and your determination to buy our product. You made a good choice, since this oven has technical characteristics which place it into top class, and you will be assured of it during exploitation. Please, carefully read this manual before you start to use his oven, since you will find tips and tricks for proper handling.
-
Page 3: Table Of Contents
CONTENTS Warning before use....................3 Description......…................4 Installation......................6 Managing operation of the cooker.................9 Operating mode....................10 Cleaning and maintenance...................10 General notes.......................13 Advices for environmental protection..............13... -
Page 4: Warning Before Use
WARNING BEFORE USE To obtain proper operation of your cooker, it is important to read this manual and strictly observe directions for use and handling. For combustion, use solid fuels like woods, briquettes and low-caloric coal. It is forbidden to put explosive devices and materials into the firebox or on the plate. -
Page 5: Description
COOKER DESCRIPTION Solid fuel cooker ROYAL 720 PLUS ECO / ROYAL 900 are produced and tested according to the European standard EN 12815. ROYAL 720 PLUS ECO / ROYAL 900 are intended for preparation of food (cooking and baking) and heating of rooms. Constructive working table of the cooker is consisted of nickel frame, steel plates and rounded inlets (fig. - Page 6 Fig. 2 – Positions of smoke exhaust connection TECHNICAL DATA Technical characteristics Product name ROYAL 720 PLUS ECO Product purpose Solid fuel cooker Nominal power (wood / coal) 8 kW Efficiency - wood - coal Dimensions of cooker (HxWxD) 850 x 720 x 600 mm...
-
Page 7: Installation
Technical characteristics Product name ROYAL 900 Product purpose Solud fuel cooker Nominal power (wood / coal) 9 kW Efficiency - wood 60 % - coal 62 % Dimensions of cooker (HxWxD) 850 x 900 x 600 mm Dimensions of firebox (HxWxD) 175 x 250 x 400 mm Dimensions of oven (HxWxD) 270 x 500 x 470 mm... - Page 8 Cooker is to be connected with chimney through shuttles and via connection on the back side of cooker, in order to provide adequate sealing and smoke flow from cooker to the chimney. Shuttle may not be installed too deeply into the chimney to avoid reduction of cross-section of the surface thus impairing air flow in chimney.
- Page 9 Fig. 3 Defaults of the chimney may be (fig. 3): 1. Chimney is lower then top of the roof, small cross section of the exit 2. Too large slope 3. Abrupt alteration of the direction of smoke channel, 4. Cooker or other device connected to the same smoke channel, 5.
-
Page 10: Managing Operation Of The Cooker
MANAGING OPERATION OF THE COOKER Start firing up with moderate fire in terms of avoiding thermal shocks. Following quantity of woods is to be inserted only when previous quantity gets burned. Do not allow clogging of the grid with ashes and unburned fuel. Clean the grid. Open the door slowly and carefully, not abruptly, enabling equalization of pressures in the burner and room, otherwise, it may cause occurrence of smoke in the room. -
Page 11: Operating Mode
OPERATING MODES ROYAL 720 / 900 cooker have four modes which are regulated using buttons for selection of operating mode and air flow regulation in the cooker. COMBINED – for simultaneous cooking, baking and heating. Put selection button into position „Z“... - Page 12 Fig. 10 Cleaning of the oven interior from the tar (fig. 11) is to be done after previously described disassemble, as follows: • remove tar from protective sheet of the oven using cleaning tools, clean and put it on the bottom by pressing in the vertical part of the channel for flow of the combustion gas products.
- Page 13 Cleaning of glass surfaces – firebox glass gets dirty during operation. For cleaning, use soft detergents. Do not use abrasive agents since glass surface may get damaged. Clean glass when it’s cold. Cleaning and maintenance of the chimney- cleaning and control of the chimney is recommended at least once a year as well as after longer inactivity.
-
Page 14: General Notes
- It is forbidden to burn inorganic and organic waste (plastic, cardboard, textile, oiled wood etc.), since within combustion it discharges cancerous and other harmful materials. A.D. “Milan Blagojević” Smederevo Đure Strugara 20 11300 Smederevo tel: 026 633 600 026 633 601 Fax: 026 226 926 E-mail: servis@mbs.rs www.mbs.rs...
