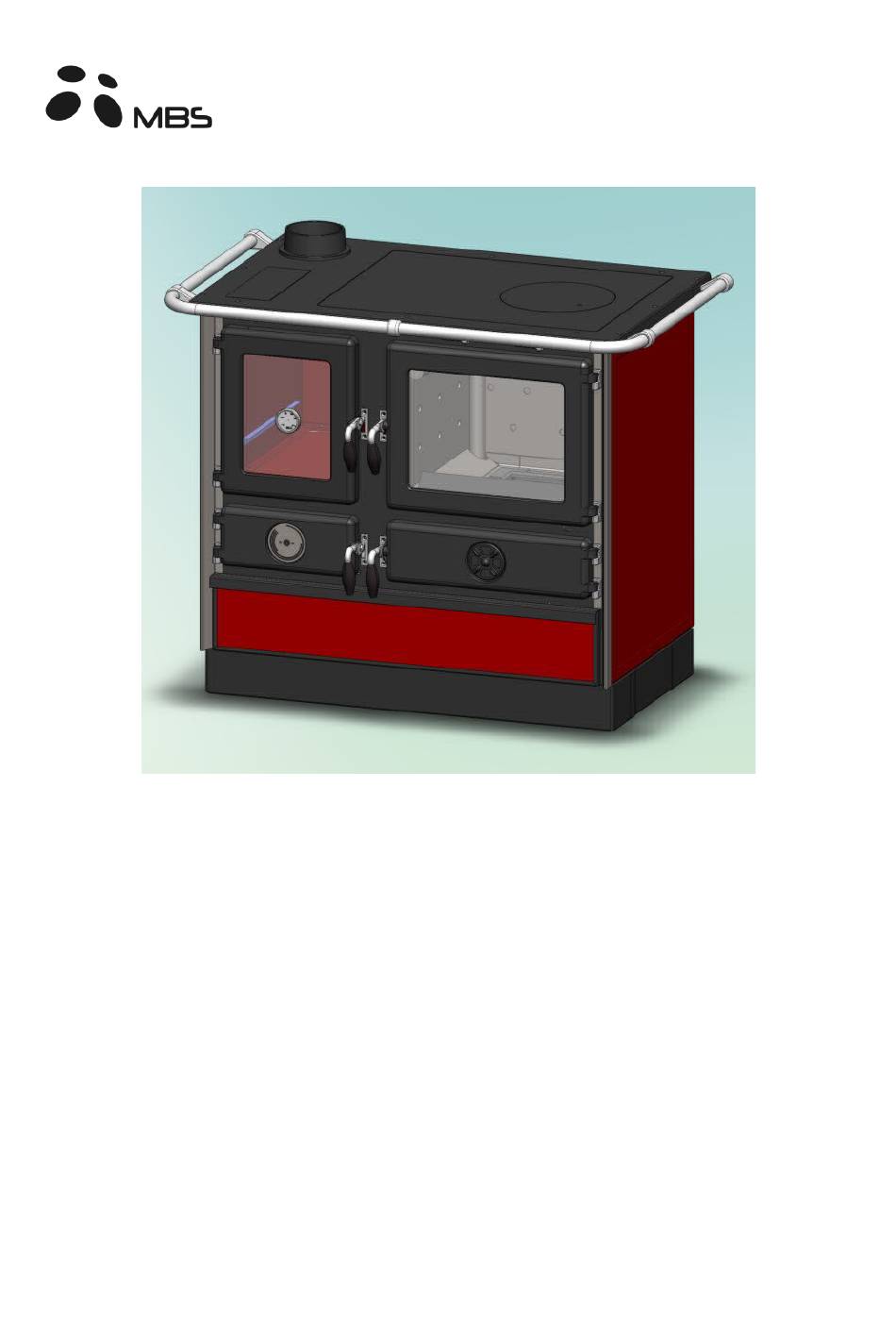

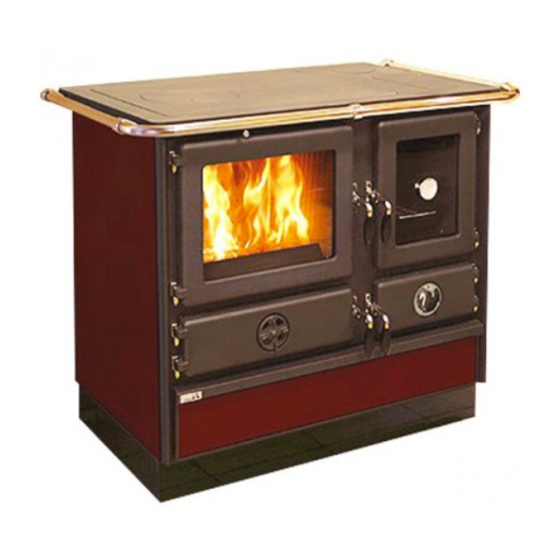

  • Page 1 MANUAL INSTRUCTION Solid fuel cooker for central heating - SUPER-THERMO MAGNUM...
  • Page 2 DEAR CUSTOMER, We appreciate your trust dedicated to us and your determination to buy our product. You made a good choice, since this oven has technical characteristics which place it into top class, and you will be assured of it during exploitation. Please, carefully read this manual before you start to use this cooker, since you will find tips and tricks for proper handling.

  • Page 3: Table Of Contents

    CONTENTS Warning before use……………............1 Description..................2 Installation...................4 Installing cooker into the system of water heating ......6 Managing operation of the cooker..……..…………………..10 Firing and ignition....……....…………………..…..…11 Cleaning and maintenance..............12 General notes………… ..............13 Advices for environmental protection..........13...

  • Page 4: Warning Before Use

    WARNING BEFORE USE To obtain proper operation of your cooker, it is important to read this manual and strictly observe directions for use and handling. For combustion, use solid fuels like woods, briquettes and low-caloric coal. It is forbidden to put explosive devices and materials into the firebox or on the plate. It is forbidden to keep combustible materials in direct vicinity of the cooker.

  • Page 5: Description

    COOKER DESCRIPTION Central heating cooker Super Thermo Magnum is produced and tested according to the European standard EN 13240. Layout of the cooker with its components crucial for operation is given on the picture 1. Central heating cooker Super Thermo Magnum has boiler of 19 liters capacity made of boiler metal sheets, with thicknesses anticipated by the standards.

  • Page 6: Installation

    against eventual overheating. We recommend safety thermal valve Caleffi 544 1/2 shown on fig. 2. Comment: Safety thermal valve is not part of the product and will not be delivered with cooker. Guarantee for the boiler is valid exclusively with built-in thermal valve. Fig.
  • Page 7 Do not put the cooker in direct vicinity of wooden elements, cooling devices, plastic parts of the furniture and other combustible materials, since it creates high working temperature which is distributed at the exterior of the cooker (at the combustion of fuel).
  • Page 8 If draft in the chimney is weak (Fig. 2a), check accuracy of chimney. Chimney should be located within interior of an object, and if it’s on external walls of an object, it is recommended to insulate the chimney. Fig. 3 Defaults of the chimney may be (fig.

  • Page 9: Installing Cooker Into The System Of Water Heating

    INSTALLING COOKER INTO THE SYSTEM OF WATER HEATING -for intake and output of water into the system of central heating, connections of of 1" on boiler are anticipated. - cooker may be mounted on closed or open system of central heating. Mounting to closed system of central heating One of the way of proper installation is shown on the picture 5.
  • Page 10 One of the aspects of installation is shown on fig. 6. At this system, starting guide is to be installed with safety distribution guide of expansion vessel and valve of boiler, and on starting guide valve of boiler is to be installed, as well as pump and valve.
  • Page 11 Fig. 6 Diagram of open system of central heating FIRING UP AND IGNITION Prior to the first ignition, wipe all enameled surfaces of the cooker with dry mop to avoid combustion of dirt on the cooker and creation of unpleasant scents. Firing up in the firebox should be carried out as follows: •...
  • Page 12 • after creation of basic cinder, put into the firebox some bigger pieces of woods or coal and close firebox door. If briquettes are used, you must wait all quantity of fuel to get ignited then to reduce air flow to half. •...

  • Page 13: Managing Operation Of The Cooker

    MANAGING OPERATION OF THE COOKER Start firing up with moderate fire in terms of avoiding thermal shocks. Following quantity of woods is to be inserted only when previous quantity gets burned. Do not allow clogging of the grid with ashes and unburned fuel. Clean the grid. Open the door slowly and carefully, not abruptly, enabling equalization of pressures in the firebox and room, otherwise, it may cause occurrence of smoke in the room.

  • Page 14: Cleaning And Maintenance

    Fig. 7 During firing up, turn regulator button into position of maximally open flap in the direction depicted on fig. 8. During operation, depending on temperature, regulator flap will open and close automatically. If lower temperature then set is desired, turn regulator button in desired position of minimal open flap, then regulator flap is closed.

  • Page 15: General Notes

    IRREGULARITIES IN OPERATION AND TROUBLESHOOTING In the following table, there are most frequent operating irregularities and troubleshooting. Table: Display of the most frequent irregularities, possible causes and troubleshooting. Problem Possible cause Remedy  Carefully read and observe manual  Cooker weakly heats Irregular handling ...

  • Page 16: Advices For Environmental Protection

    A.D. “Milan Blagojević” Smederevo Đure Strugara 20 11300 Smederevo tel: 026 633 600 026 633 601 fax: 026 226 926 Servis: 026 633 670 026 231 597 e-mail: servis@mbs.rs www.mbs.rs...
