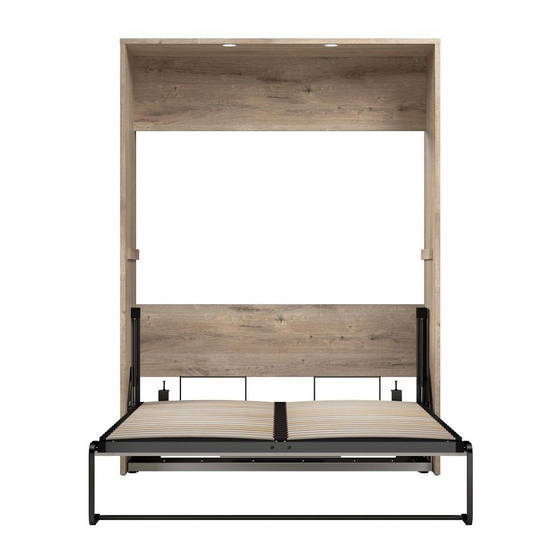

Bestar 80183-2 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Bestar Manuals
  4. Indoor Furnishing
  5. 80183-2
  6. Assembly instructions manual

Bestar 80183-2 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Important information to read
before starting the assembly.
Keep this information for future reference.
IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall,
it can suddenly fall, resulting in serious injury or death.
• For wood, metal, or masonry wall structure, a qualified person must install the bed to the wall.
• For all other types, a construction professional must install the bed to the wall in compliance
with the codes and regulations in the province, state, or country where installed.
• The choice of wall attachment screw depends on wall type. Use wall attachment screws
suitable for your wall material.
• Verify structural integrity of floor and wall prior to installation.
• Do not open or use the bed if the bed cabinet moves while opening, or if you notice any other
signs of loose or detaching screws.
• Never remove wall attachment screws without first disassembling and removing the mattress
frame and lift cylinders.
• Qualified person must have the skills and tools necessary to locate wall studs, identify type
of wall structure (wood, metal, masonry or other) and install screws correctly to wall structure.
Skills and tools include electronic stud finder, drill motor and bits, screwdriver, and ability
to correctly use these tools.
• Bed frame maximum supporting weight: 1000 lb (455 kg).
• Maximum mattress thickness: 10 in (25.5 cm).
• Mattress weight must be between: 60 lb (27 kg) and 90 lb (41 kg).
• Minimum ceiling height: 85 in (2.16 m).
• Minimum holding force required for each fastener: 142 lb (630 N).
• Not for use with folding mattress.
FOR ANY PROBLEM OR INFORMATION
1-888 8BESTAR (1-888 823-7827)
WARNING
NOTICE
http://bestar.ca
http://bestar.com
MODEL
80183-2
COLOR
WO

Advertisement

loading
Need help?

Need help?

Do you have a question about the 80183-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bestar 80183-2

Summary of Contents for Bestar 80183-2

  • Page 1 MODEL 80183-2 COLOR Important information to read before starting the assembly. Keep this information for future reference. WARNING IMPACT OR CRUSHING HAZARD: If bed is not properly attached to the wall, it can suddenly fall, resulting in serious injury or death.

  • Page 2: Warranty Information

    Bestar reserves the right to request a proof of purchase to document a warranty claim. In no event shall BESTAR be liable for incidental or consequent damages resulting from the misuse of the product.

  • Page 3: Customer Service

    Customer Service www.bestar.com/support If there are parts missing from your order or if your product was damaged during shipping, PLEASE CONTACT US DIRECTLY. Need help? If you have any questions or concerns, please visit our website: www.bestar.com/support or call our toll-free number:...
  • Page 4 Activate your Warranty www.bestar.com/activate-my-warranty Activate your warranty now: www.bestar.com/activate-my-warranty Information required to make a warranty claim A copy of your receipt. Pictures of the damaged parts. You must know the name of the product, the item number and the name of the store where the item was purchased.

  • Page 5: Maintenance Tips

    Maintenance Tips www.bestar.com/maintenance Never leave damp clothes, liquids or damp cloths on the furniture. If a liquid has spilled on the furniture, clean the liquid up immediately. Clean the furniture with a damp cloth, then wipe dry. To avoid damaging the finish, do not use cleaning products on the furniture.
  • Page 6 At Bestar, we take pride in manufacturing stylish and functional furniture for your home and workspace. We go beyond manufacturing furniture: we offer solutions to optimize and customize your home and workspace. That’s why customer satisfaction is our number one priority! Satisfaction Survey www.bestar.com/satisfaction...
  • Page 7 Parts & Hardwares Parts Code Code Code Code MO-7493 Part number on the top or on edge 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 8 • Minimum ceiling height: 91.5 in (2.32 m). • Minimum holding force required for each fastener: 142 lb (630 N). • Not for use with folding mattress. FOR ANY PROBLEM OR INFORMATION PRODUCTION 0000 1-888 8BESTAR (1-888 823-7827) PRODUCTION 0000 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 9 VR-462 1 3/4 in (44 mm) 1 1/2 in (38 mm) VC-204 3500-400350 2 in (50 mm) 1/2 in (13 mm) KI-993-O 2 3/4 in (70 mm) VR-1125 3 1/2 in (89 mm) 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 10 CA-100 CA-77 3/32 in this model. 3/8 in 2,5 mm 10 mm H-03 Unused holes VC-204 When you have completed the assembly of your new furniture, install self-adhesive caps on unused holes. CA-1014 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 11 • N’utilisez JAMAIS de chevilles pour cloison sèche. • ALWAYS use 12 screws for floor and wall • SIEMPRE utilice 12 tornillos para la fijación al suelo • Utilisez TOUJOURS 12 vis de fixation murale. attachment. y a la pared. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 12 • N’utilisez JAMAIS de chevilles pour cloison sèche. • ALWAYS use 12 screws for floor and wall • SIEMPRE utilice 12 tornillos para la fijación al suelo • Utilisez TOUJOURS 12 vis de fixation murale. attachment. y a la pared. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 13 Hardware installation Murphy bed GO-796 KI-932-H PA-844 Code KI-932-H PA-844 H-03 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 14 Make sure to properly tighten each cam to ensure furniture solidity. VF-1013 Otherwise, parts could be damaged or the user could be injured. RO-994 H-03 KI-993-M RO-994 VF-1013 KI-993-Q NOTICE Remove this label. KI-993-C VF-1013 H206029 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 15 Hardware installation & assembly Murphy bed TWO people are required for this step. GO-796 VC-204 Code Sequence 30 70 40 31 VC-204 GO-796 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 16 Hardware installation & assembly Murphy bed TWO people are required for this step. H-36 Code H-36 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 17 Assembly Murphy bed TWO people are required for this step. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 18 • NEVER attach wall bed directly to drywall, sheetrock, gypsum, or other wall board. • ALWAYS attach wall bed to wood stud, steel stud or masonry wall structure. • ALWAYS use twelve (12) screws for floor and wall attachment. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 19 • N’utilisez JAMAIS de chevilles pour cloison sèche. • ALWAYS use 12 screws for floor and wall • SIEMPRE utilice 12 tornillos para la fijación al suelo • Utilisez TOUJOURS 12 vis de fixation murale. attachment. y a la pared. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)

  • Page 20: Hardware Included

    THE CHOICE OF ANCHOR SCREWS AND SELECT, IF REQUIRED, MORE APPROPRIATE ANCHORING DEVICES. HARDWARE INCLUDED VR-1125 BT-1048 H206515 Wood drill bit 1/8 in (3 mm) Diameter Robertson (square-tip) bit included 6 screws No #10, 3 1/2 in (89 mm) REQUIRED TOOLS Stud finder 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 21 #87 with 2 pilot holes of 1/8 in (3 mm) diameter per stud, 2 in (50 mm) apart vertically (6 holes in total). DO NOT DRILL HOLES INTO THE WOOD STUDS. 1/8 in 1/8 in (3 mm) (3 mm) 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 22 The screw must be at least 2 in (50 mm) deep in the wooden stud. USE AN ELECTRIC SCREWDRIVER WITH AN ADJUSTABLE TENSION CLUTCH THAT HELPS PREVENT OVER-TIGHTENING AND STRIPPING. 2 in (50 mm) Drywall Minimum Wood stud VR-1125 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 23 “CONCRETE SCREWS 3/16 in (5 mm) diameter X APPROPRIATE LENGTH” H206515 Wood drill bit 1/8 in (3 mm) Diameter NOT included Included REQUIRED TOOLS Masonry drill bit 5/32 in (4 mm) Hammer drill Diameter 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 24 With the bed in position, mark the position of the 6 holes on the masonry wall. Locate and mark the positioning of the 6 anchor points. 1/8 in (3 mm) 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 25 Screw must be at least 1 1/4 in (32 mm) deep into masonry. USE AN ELECTRIC SCREWDRIVER WITH AN ADJUSTABLE TENSION CLUTCH THAT HELPS PREVENT Masonry Drywall OVER-TIGHTENING AND STRIPPING. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 26 *Patented under one or more of the following U.S. Patent Nos. : 5,938,385; 6,161,999; 7,144,212; 7,320,569; and foreign counterparts thereof. Others patents pending. TOGGLER and typeface, symbol, TA, TB, TC, TH, SP, ALLIGATOR, ALLIGATOR design, SNAPTOGGLE, SnapSkru, and High-Performance Anchors are worldwide registered trademarks of Mechanical Plastics Corp. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 27 #87 with 2 pilot holes of 3/16 in (5 mm) diameter per stud, 2 in (50 mm) apart vertically (6 holes in total). With the bed in position, mark the positioning of the 6 holes on the drywall. 3/16 in 3/16 in (5 mm) (5 mm) 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 28 Put the bed back in its place. Insert the screw (10-24) X APPROPRIATE LENGTH Metal into the hole of part #87 and tighten the fastener studs until the bed is snug against the wall. Drywall 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 29 Code Adhere the RU-420 into the groove and glue the wires of the switch on it. AC-1009-D AC-1009-A AC-1009-C The installation of switch can be on left side or AC-1009-B on right side. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 30 Hardware installation & assembly Murphy bed SU-1007 VR-212 Code SU-1007 VR-212 MO-7493 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 31 Hardware installation & assembly Murphy bed TWO people are required for this step. VC-204 Code NOTICE Do not attach to floor in this step. VC-204 80183-2 AN SERVICE/SERVICIO: 1-888 8BESTAR (1-888 823-7827)
  • Page 32 Hardware installation & assembly Murphy bed KI-993-A KI-993-B KI-993-F KI-993-N KI-993-O Code TWO people are required for this step. KI-993-N KI-993-N KI-993-O KI-993-F KI-993-N KI-993-B KI-993-A KI-993-F KI-993-B KI-993-F 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 33 NOTICE Fully tighten 2 nuts per cylinder. Nylon side of the nut must face outwards. Thread should extend past end of nut when tightened. KI-993-J KI-993-J KI-993-J MUST BE COMPLETELY TIGHTENED 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)

  • Page 34: Front View

    2. Position the bearing support in such a way as to lock. (Image 1) 3. Firmly tighten the bearing support screws. KI-993-E BOLTS KI-993-L KI-993-P KI-993-L KI-993-A KI-993-B KI-993-A IMAGE 1 FRONT VIEW KI-993-B KI-993-P 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 35 THE PISTON AT THIS STEP are required for this step. Close the metal frame Distance between metal frame and wood gable must be the same each side Move the base to adjust the distance on top 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 36 Assembly Murphy bed Open the metal frame. TWO people Be careful to prevent are required the base from shifting. for this step. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 37 • ALWAYS install 6 floor attachment screws: 4 to floor, 2 to sill plate. Use 2 floor screws (H206517) or one wall screw (H206518) or both on each floor bracket. Fix the bottom. Use the floor metal bracket. H206517 H206518 Supplied bit for screws (H206514) 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 38 Follow the steps until the end, after mattress and front panels are installed, the bed will open without effort. Close the metal frame INSERT CYLINDER ON ITS SUPPORT ROD KI-993-J must be completely tightened KI-993-J KI-993-J KI-993-C KI-993-D 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 39 Assembly Murphy bed NOTICE Use one of the cardboard corner pieces from packaging or similar object to keep the bed in semi-closed position for the following steps. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 40 Hardware installation & assembly Murphy bed TWO people are required for this step. GO-796 VR-462 Code GO-796 VR-462 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 41 Hardware installation & assembly Murphy bed TWO people are required for this step. KI-993-G KI-993-H KI-993-I Code KI-993-H KI-993-I KI-993-H KI-993-H KI-993-H KI-993-I KI-993-I KI-993-I Front view Washer 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 42 Hardware installation & assembly Murphy bed Do not use 3500-400350 KI-993-K PO-1011 VM-601 Code x 36 x 18 3500-400350 KI-993-K PO-1011 VM-601 NOTICE Do not use the screws provided with: 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 43 Assembly Murphy bed TWO people are required for this step. NOTICE Rotate the leg toward the interior. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 44 TWO people are required Use one of the cardboard corner pieces for this step. from packaging or similar object to keep the bed in semi-closed position for the installation of the facades. KI-993-A 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 45 Hardware installation & assembly Murphy bed TWO people are required for this step. VR-213 Code x 12 NOTICE Please flip down the leg before completely lowering the bed. VR-213 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 46 10 NOTICE • Please flip down the leg before completely lowering the bed. • Adjust and centre facades before screwing them to the metal bed frame. KI-993-S KI-993-R VR-215 VR-215 VR-215 VR-215 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)

  • Page 47: Important Notice

    Maintain the bed closed when not used. It is recommended not to leave pillows and\or ornamental pillows in place when the bed is closed to preserve the mechanism. NOTICE Don’t apply pressure on facades. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)

  • Page 48: Risk Of Injury

    1-888-823-7827 to get the instructions and the parts required for the repair (if possible). Do not continue to use a damaged bed and don’t try to fix it yourself without instructions from Bestar. A damaged bed may malfunction resulting in unexpected opening, closing, or collapse of bed.
  • Page 49 NOTICE • By removing the mattress, the bed frame will rise quickly. • Have a helper hold the frame down while removing the mattress. Remove the slats. Unscrew the facades (screws VR-215). VR-215 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 50 Use an object of about 2 in (50 mm) thick to keep the bed in a semi-closed position, then lift and pull to remove the facades. Take off the stop molding by removing the 5 screws on top. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 51 DISASSEMBLY Let the bed frame sink back into the cabinet and remove the lift cylinders. UNSCREW THE FASTENER AND REMOVE THE END OF THE CYLINDER FROM THE “L” BRACKET. 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
  • Page 52 Unscrew and remove the bearing supports. KI-993-P KI-993-P IMAGE 1 FRONT VIEW Lift the metal bed frame from the brackets. Now you can unscrew the bed from the wall and continue the disassembly. 310322 V4 80183-2 AN SERVICE: 1-888 8BESTAR (1-888 823-7827)
