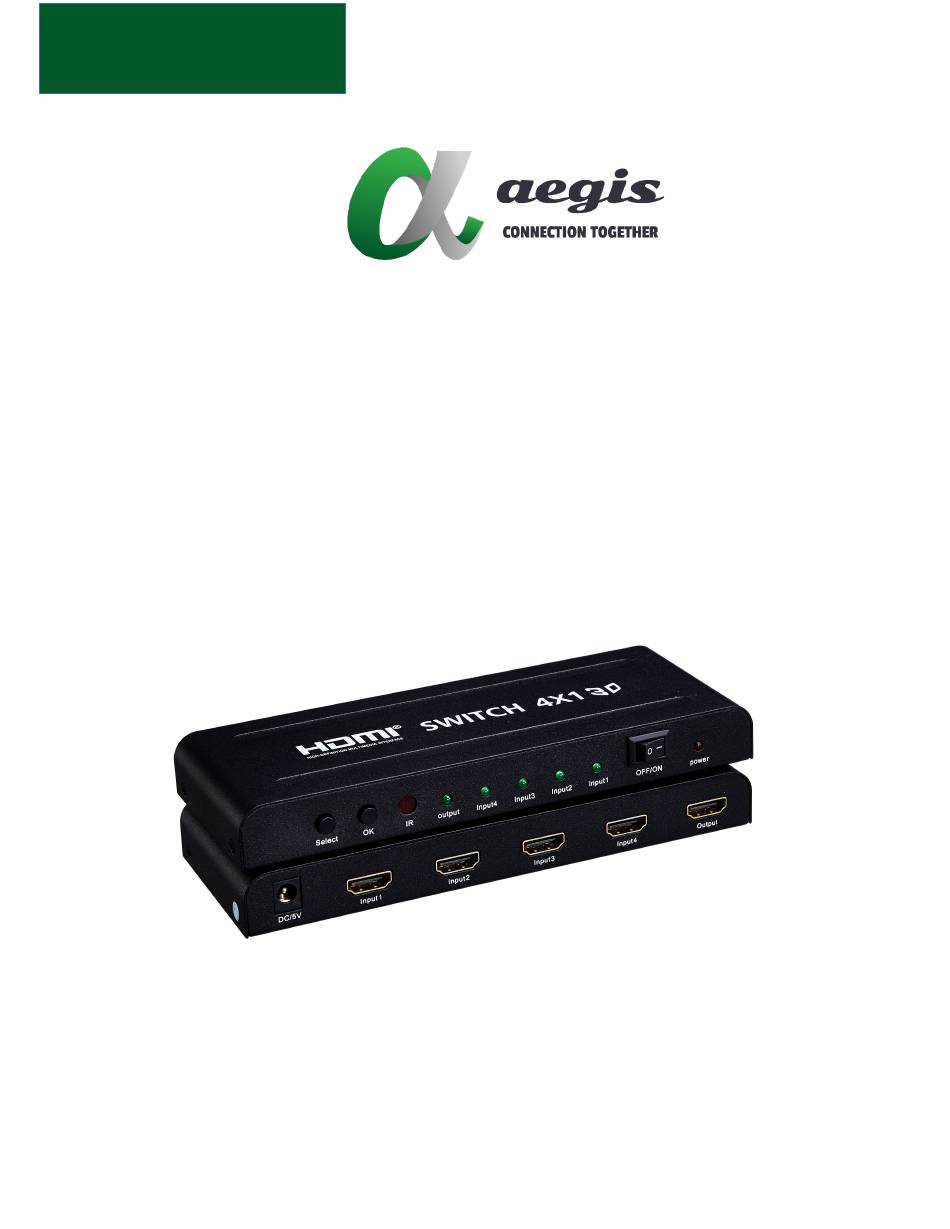

- Page 1 User Manual SWT-HDMI-1000 HDMI 4x1 Switch 4Kx2K (with Picture-in-Picture (PiP ) Function) All Rights Reserved Version: SWT-HDMI-1000_2022 V.1.1...
- Page 2 SWT-HDMI-1000 OVERVIEW aegis’s SWT-HDMI-1000 HDMI switch makes the user gets live picture-in-picture (PiP ) video preview of each connected device, which makes it simple and intuitive to switch among the cable box, the disc player, the game console, any other HDMI connected sources. It supports all HD formats including 720p，...
- Page 3 SWT-HDMI-1000 PANEL INTRODUATION CONNECTION DIAGRAM 1. Connect the HDMI cable between signal source and input port of Switch. 2. Connect the HDMI cable between output port of Switch and HDTV. 3. Connect switch and power adapter. 4. Open the signal source and the power of HDTV, then it works.
- Page 4 SWT-HDMI-1000 Installation and Precautions To avoid electric shock, product damage and to protect your safety, please notice the following: 1. Please slowly plug or unplug signal cables and do not often plug, unplug or shake them. 2. The equipment should not be placed under the sun, rain and damp or unventilated environment.
