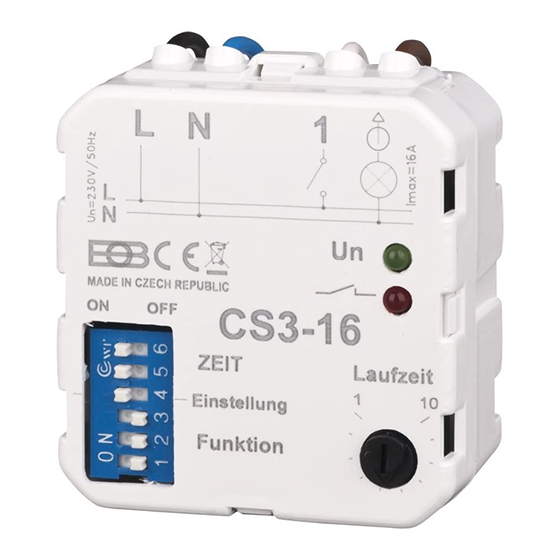

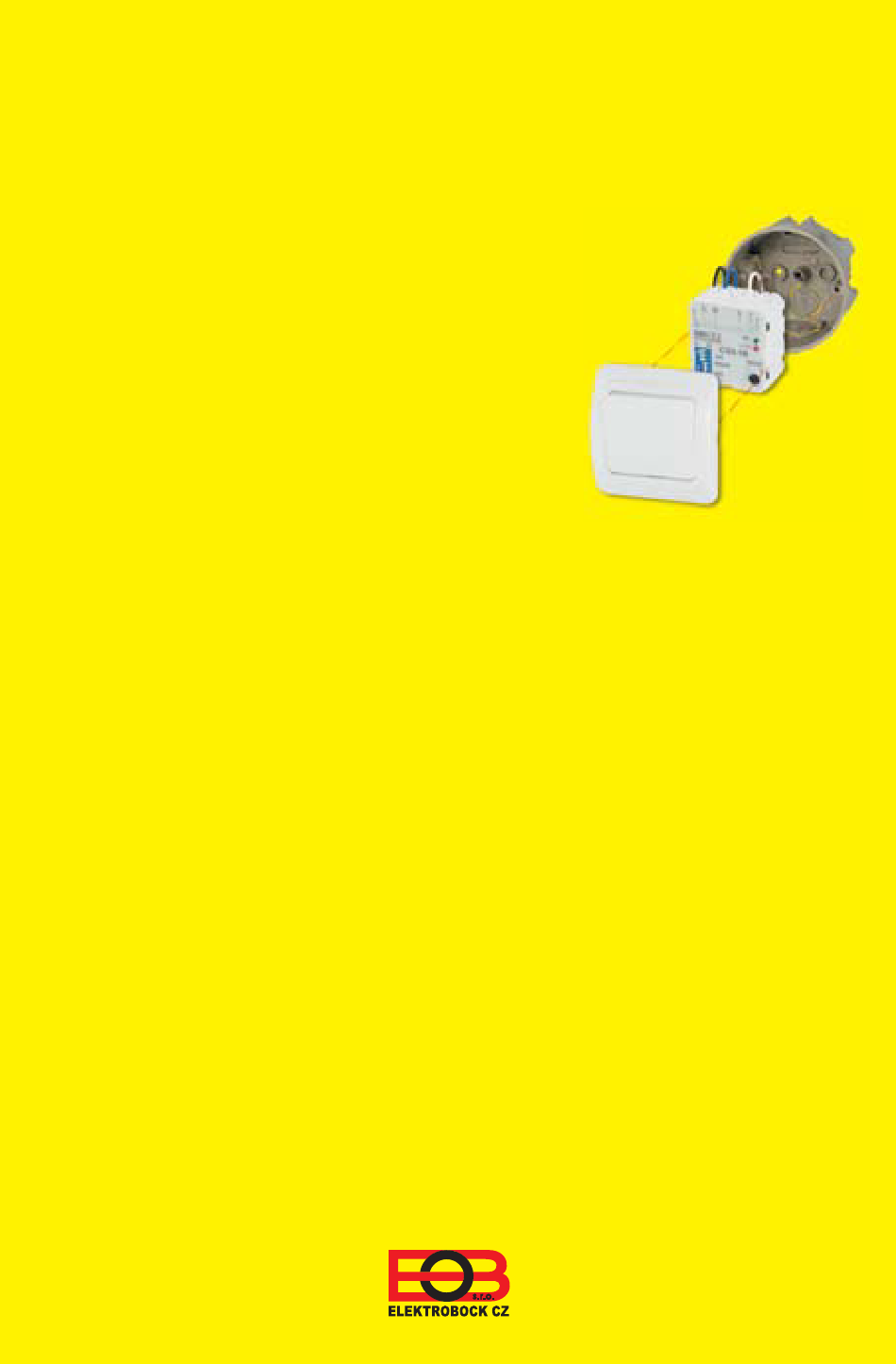

- Page 1 CS3-16 CS3-16 TIMING SWITCH MULTIFUNCTIONAL FOR HIGHER LOADS • 8 functions in one connection, period of time in the range from 0.5 s to 20 hours • switching element is power relay • mounting under the control element MADE IN CZECH REPUBLIC...
- Page 2 DESCRIPTION CS3-16 timing switch is a multifunctional relay with possibility to set eight functions. Switching element is relay 16 A for control bigger loads (see table Specifi cations). TIME SETTING is linear, possible in the range from 0.5 s to 20 hours. The coarse setting is made ON OFF by miniature switch according to table and fi...
- Page 3 ON OFF ts = interval of switching on tc = the time set on CS3-16 tcx = interrupt (tcx< tc) Position of switch E.g.: staircase time-switch 2, Delayed switching off the load is activated at the moment of button discon- nection, after timing the load is deactivated (similar to CS3-1).
- Page 4 ON OFF ts = interval of switching on tx = interrupt (ts=3s) tc = the time set on CS3-16 tcx = n x tc (n<5) Position of switch E.g.: staircase time-switch 4, Delayed switching off without blocking the load is activated on immediately after pushing the button, but the timing starts after button is disconnection (similat to CS3-4).
- Page 5 (delay), afterwards activates the load that is activated up to button disconnecting. ON OFF ts = interval of switching on tx = the delay set on CS3-16 tcs = interval of appliance running Position of switch E.g.: bathrooms, toilets...
- Page 6 ON OFF ts = interval of switching on tx = the delay set on CS3-16 tcs = interval of appliance running Position of switch E.g.: bathrooms, toilets 8, Flasher when the button is switched on permanently, it activates the load in time intervals set 1:1.
- Page 7 SPECIFICATIONS Power supply 230 V/ 50 Hz Switching element relay, 16 A Lamp 2000 W Fluorescent lamp 750 W (max.5 PCS) Economy lamp max. 5 PCS Squirrel cage motor 450 VA Max. cross sect. area 0,5 mm of inst. Cu cond. Protection IP20 and higher according to the mounting...
- Page 8 Flasher - when the button is switched on permanently, it activates the load in time intervals set 1:1 (illuminated advertisements etc.). ELEKTROBOCK CZ s.r.o. Blanenská 1763 Kuřim 664 34 Tel./fax: +420 541 230 216 MADE IN CZECH REPUBLIC www.elbock.cz...
