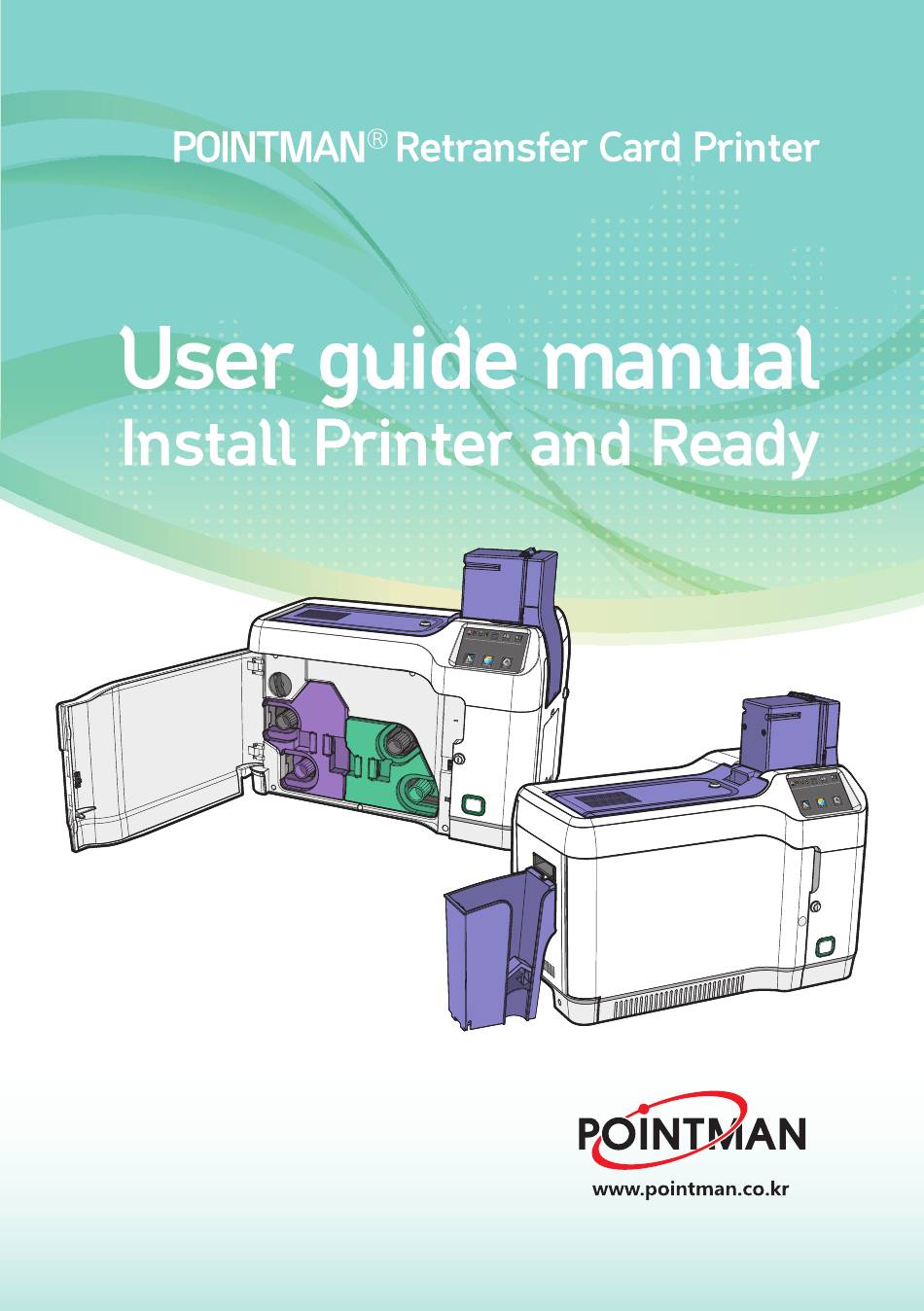

- Page 1 Copyright 2020. POINTMAN All Pictures Cannot Be Copied Wihour Permission. Copyright ⓒ 2020, TIT ENG Co.,Ltd Series...
-
Page 2: Table Of Contents
Contents Safety Precautions Product Introduction Information Component Names of Parts NR300 (300DPI) NR600 (600DPI) Install Cleaning Roller Load Cards Remove the card static electricity Inserting cards with Input Hopper detached Inserting cards with Input Hopper loaded Load Film into Film Cartridge Load Ribbon into Ribbon Cartridge Close the front cover How to attach and detach the Stacker... - Page 3 Solve the problem Major Error Warning Other errors Check Ribbon & Film Specifications Color Ribbon specification Mono Ribbon specification Film specification Check the printer specifications Product Features Product Standard Specification Option Specification Printer Specification Regulatory POINTMAN NR Serise User Guide Manual...
-
Page 4: Safety Precautions
Safety Precautions -Explanation of symbols used in this manual Before using this product, please make sure that you have read the safety precautions described below. The safety precautions noted on this page are categorized as Warning, Caution, Attention, Prohibition and Note. We are not responsible for any injuries or damage when the product is not used in compliance with these precautions. - Page 5 If there is dirt or water on the power plug, remove it completely and dry it sufficiently for at least 20 minutes before use. Be sure to clean after unplugging the power plug, and do not spray water directly or wipe with benzene or thinner. POINTMAN NR Serise User Guide Manual...
- Page 6 Installation/storage Do not install in humid, dusty places, or places exposed to water (rainwater). Do not place candles, cigarette light, etc. on the product or install it near a hot air balloon. Keep the product away from flammable liquids, gases and aerosols.
-
Page 7: Product Introduction

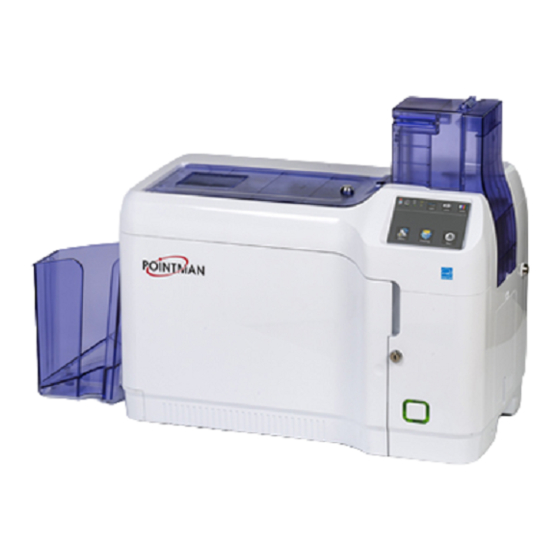

Product Introduction -Information First of all, thank you for choosing our NR series. This product is a retransfer card printer that prints images and texts worked on a computer on the surface of a film and then heats them with the pre-printed film on a PVC card. -
Page 8: Names Of Parts
Name of Part -NR300 (300DPI) Name Description Card Hopper Used to load and issue cards. (up to 200 cards) Open card Use to open the cover by hand pressing the card on the card Display 4-inch Touch Display the status of the printer and set the printer through Touch. - Page 9 Card reject box Cover When you want to remove a card from the card reject box, open and close it. Carrying handle Prevents slipping when transporting the printer and helps convenient transport POINTMAN NR Serise User Guide Manual...
-
Page 10: Nr600 (600Dpi)
-NR600 (600DPI) Name Description Card Hopper Used to load and issue cards. (up to 200 cards) Open card Use to open the cover by hand pressing the card on the card Display 4-inch Touch Display the status of the printer and set the printer through Touch. - Page 11 Card reject box Cover When you want to remove a card from the card reject box, open and close it. Carrying handle Prevents slipping when transporting the printer and helps convenient transport POINTMAN NR Serise User Guide Manual...
-
Page 12: Install Cleaning Roller
Install Cleaning Roller 1. Hold the card Hopper and pull it in the direction of the arrow to remove it. 2. Remove the existing cleaning roller by pulling it in the direction of the arrow. Caution -When replacing the ribbon, it is recommended to replace the cleaning roller as well. - Page 13 3. Remove the cleaning roller installation guide as shown in the image below and discard the contaminated cleaning roller. Installation Guide Cleaning roller Installation Guide 4. Install the new cleaning roller with installation guide as shown in the image below. POINTMAN NR Serise User Guide Manual...
- Page 14 5. Remove protective tape to prevent fingerprint marks or contamination. 6. Align the cleaning roller with the ‘U-shaped holder’ on the mounting area’ and push it in the forward direction Caution -When installing the cleaning roller, be careful not to remove the mounting guide and install it on the printer 7.
-
Page 15: Load Cards
2. Align cards and load cards inside the input hopper as shown in the image below. -Inserting cards with Input Hopper detached 3. Slightly press the side of the input hopper and lift it up. POINTMAN NR Serise User Guide Manual... - Page 16 4. Lift the CARD WEIGHT PRESS and fix it until it clicks Caution - When the CARD WEIGHT PRESS is properly fixed, it is fixed on the top of the card hopper as shown in the image below. ©2020 TIT ENG Co., Ltd. All rights reserved...
- Page 17 -Make sure that the IC chip is facing the outside. - If IC Cards are not placed correctly, then an error will occur. 6. Close the cover, and place the Input Hopper in the tray. POINTMAN NR Serise User Guide Manual...
-
Page 18: Inserting Cards With Input Hopper Loaded
Note Load the cards in the card hopper in the same way as in the image. The hinge located in the input card hopper to prevent card separation. When the input card hopper is installed, the card is transferred to the printer with the ‘Hinge’ open. And when the input card hopper is removed, the ‘Hinge’... - Page 19 2. Lift the CARD WEIGHT PRESS and fix it until it clicks - When the CARD WEIGHT PRESS is properly fixed, it is fixed on the Caution top of the card supply tray as shown in the below image. POINTMAN NR Serise User Guide Manual...
- Page 20 3. Load the cards in the Input Hopper in the same way as in the image below. -Make sure that the IC chip Caution is facing the outside. 4. Close the card input hopper cover and when it is closed, the Card Weight Press automatically moves to the card loading position.
