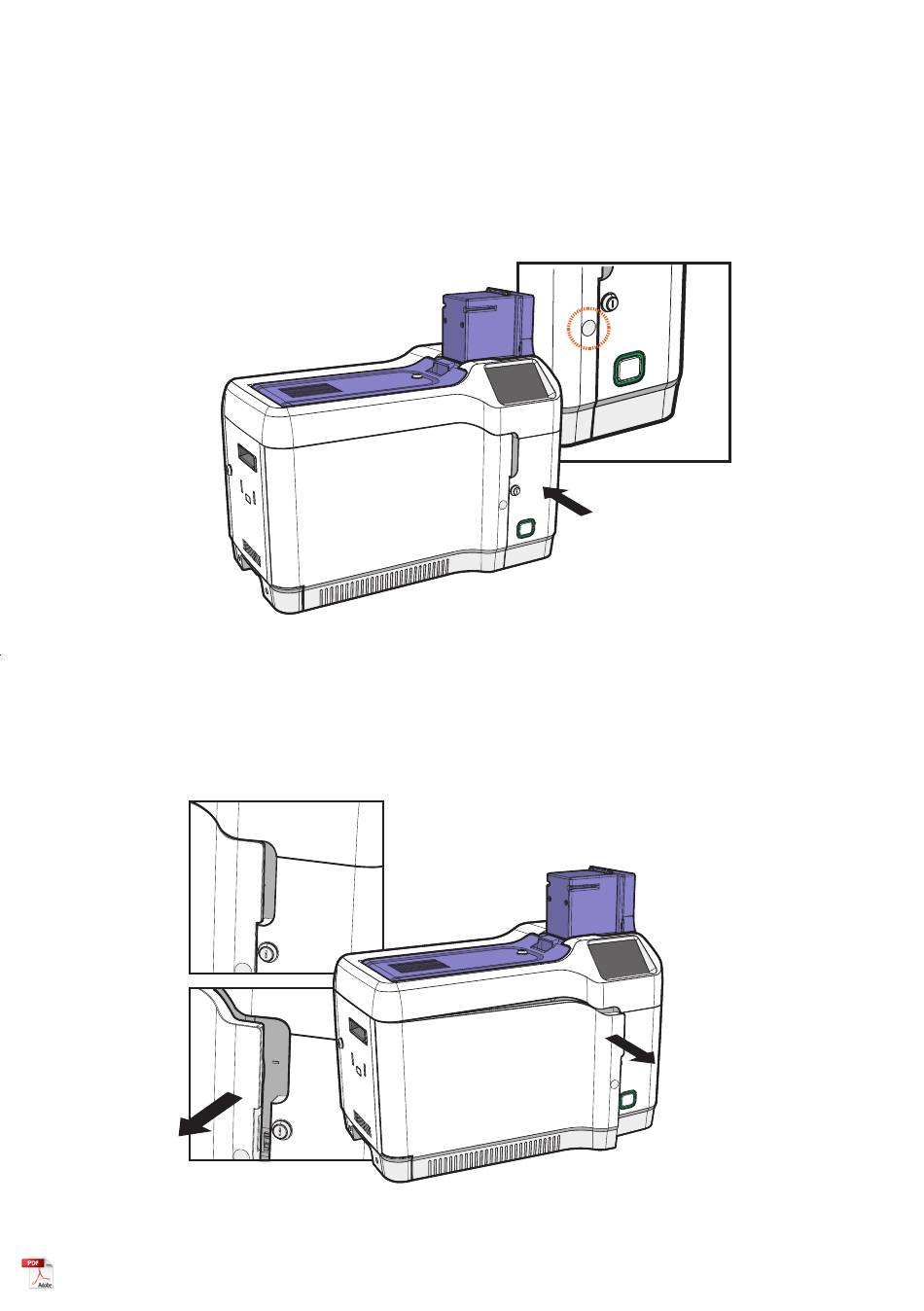

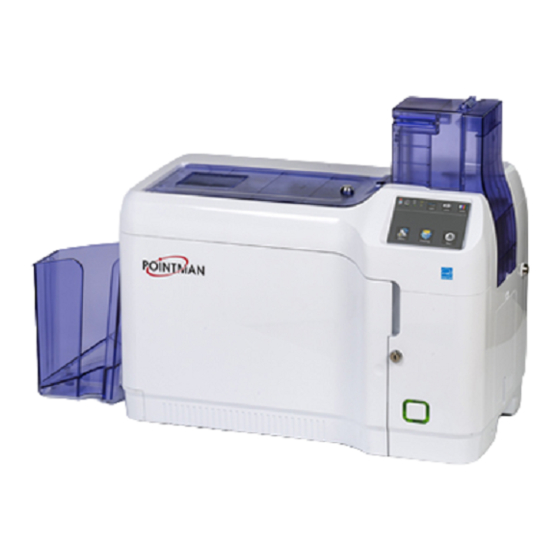

- Page 1 Load Films into Film Cartridge 1. Press the Front Cover Button. 2. Once the cover opens slightly pull the cover by the handle to open it completely. POINTMAN NR Serise User Guide Manual...
- Page 2 3. Pull the cartridge out while pressing the Cartridge Load/Eject Button to remove it from the Retransfer. 4. Load the film core by pushing it vertically from top to bottom as shown. ©2020 TIT ENG Co., Ltd. All rights reserved...
- Page 3 5. After standing up the film cartridge as below the image, turn the black film core clockwise and pass it under the cartridge. RFID Tag RFID Tag POINTMAN NR Serise User Guide Manual...
- Page 4 6. Lay the cartridge again, then load the black film core by pushing it vertically from top to bottom as shown in the image below. 7. Turn the edge of the film core clockwise to tighten the film as shown in the image below. Caution -If the film is loose before inserting the cartridge into the body, it will be caught...
- Page 5 8. Check the position of the Film Cartridge and push the cartridge in until it clicks. Click POINTMAN NR Serise User Guide Manual...
- Page 6 Load Ribbon into Ribbon Cartridge 1. Pull the cartridge out while pressing the Cartridge Load/Eject Button to remove it from the Retransfer as shown in the image below. 2. Load the ribbon core by pushing it vertically from top to bottom as shown in the image below.
- Page 7 3. Put on the ribbon cartridge as below image, and then turn the recovery ribbon core counterclockwise and pass it under the cartridge. POINTMAN NR Serise User Guide Manual...
- Page 8 4. Lay the cartridge again as image below, and then insert the recovery ribbon core by pushing it in the direction of 45 degrees. ©2020 TIT ENG Co., Ltd. All rights reserved...
- Page 9 6. Check the position of the ribbon cartridge as image below and push in the cartridge in the direction of the arrow until it clicks. POINTMAN NR Serise User Guide Manual...
- Page 10 Click Close the front cover 1. Close the front cover by pushing it forward until it ‘clicks’. Caution - Do not use force to close the front cover without properly installing the cartridge. It may cause damage to the product -If the front cover of the printer is not closed properly, it may cause poor printing quality.
-
Page 11: Connecting Power And Communication Cable
(Up to 150 cards can be stacked.) Connecting power and communication cable Connect the power and USB communication cable to the backside of the printer as below image. USB Cable Power Cable Power Adaptor POINTMAN NR Serise User Guide Manual... - Page 12 Supply power to the printer Turn on the printer by pressing the power switch. Setting after installing the Film/Ribbon When the initial screen is displayed after booting, proceed to film and ribbon setting. ©2020 TIT ENG Co., Ltd. All rights reserved...
- Page 13 Film Status Film Type Number of Film Sets Clear Transfer Flim Film Lot Number 66200XXX Home Film sync Press the button to enter the ribbon settings menu. 100% 154℃ 100% 100% Menu Cleaning Eject POINTMAN NR Serise User Guide Manual...
- Page 14 4. After checking the basic information on the film, press the Ribbon sync button to adjust the position of the ribbon When the printer is in Home position of the ribbon, press the button to move to the standby screen Ribbon Status Ribbon Type Number of Ribbon Sets...
- Page 15 1. Hold the side of the stacker and pull it in the direction of the ‘ㄱ’ as below image to detach the stacker. 2. Hold the side of the stacker and lift the card as image below to remove it. POINTMAN NR Serise User Guide Manual...
