- Page 1 Maintenance Kit Manual 800-216-5505 | www.solmetex.com...

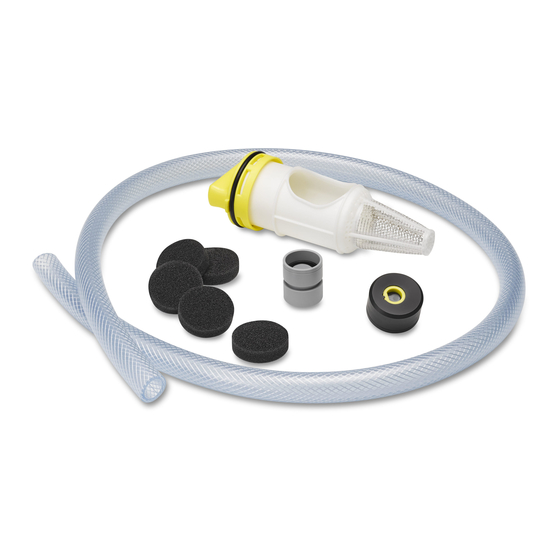

- Page 2 Maintenance Kit Components The Solmetex NXT DryVac Dental Vacuum System Maintenance Kit provides replacement components needed to perform annual service for continuous safe, efficient, and reliable operation of the vacuum pump. Components Provided with Maintenance Kit (Part No: DRYVC-NXT-MKT) A – Vacuum Inlet Filter B –...
- Page 3 Vacuum Inlet Filter Turn Filter Turn Filter Counterclockwise Remove and Clockwise to Release Replace Filter to Secure STEP 2: Remove and Replace Noise Reducing Foam Set Remove and Remove Noise Replace six (6) Replace Noise Reducer Foam Disks Reducer www.solmetex.com...
- Page 4 STEP 3: Remove and Replace Water Outlet Hose and Connector Loosen Outlet Remove Lift Up on Hose Clamp Outlet Hose Retainer Clip Remove Two (2) Remove Remove Outlet Retainer Clips Hose Adapter Connector Note Location Install New Re-Install of Black Ring Outlet Connector Hose Adapter Black ring...
- Page 5 STEP 3: Remove and Replace Water Outlet Hose and Connector (Continued from Page 4) Push Clip Down Align Rear Align Front to Attach Retainer Clip Retainer Clip Push Clip Down Install New Hose Tighten Hose to Attach with Clamp Clamp www.solmetex.com...
- Page 6 STEP 4: Remove and Replace Water Return Valve Locate Water Hold Valve Firmly, Detach Collector Valve Pull Off Tube Both Tubes Align New Valve Hold Valve Firmly, Attach Both with Tubes and Push On Tube Tubes NXT DryVac™ Tankless Dry Vacuum — Maintenance Kit Manual...
- Page 7 Components Using PWS Amalgam Waste Bucket Provided Read Recycle Discard Used Seal & Recycle Instructions Components per Instructions For questions regarding NXT DryVac™ Tankless Dry Vacuum installation/operation or Maintenance Kit procedures, please contact Solmetex LLC Customer Service at: 800-216-5505 or www.solmetex.com www.solmetex.com...
