Electronics Line EL-4607 Quick Start Manual

2-Way Vibration Detector

The EL-4607 is a 2-Way wireless vibration detector for use with the iConnect 2-Way security system.

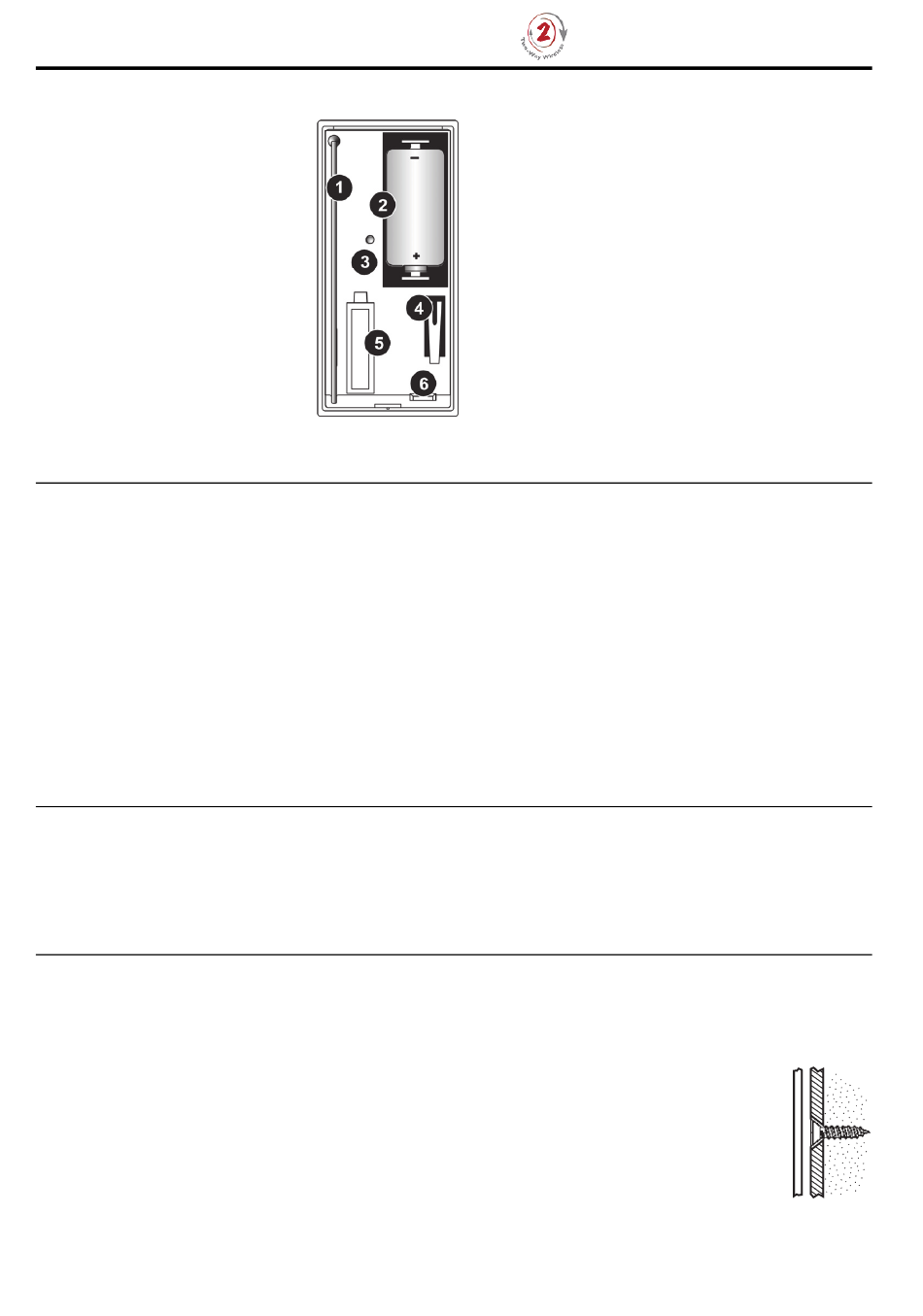

1.Antenna
2.Battery Holder
3.LED Indicator
4.Tamper Switch
5.Piezo Electric Sensor
6.PCB Release Tab

Registration

The EL-4607 must identify itself to the iConnect 2-Way receiver as follows:
1. Set the system to registration mode.
a. Go to the main menu and select [9]>[1]>[1] (Programming > Devices > Zones)
b. Select a zone and press '√'.
2. Open the detector housing.
3. Remove the divider separating the battery from the contacts on the battery holder. The detector will
send a transmission. If the transmission is successfully received by the system it will play a
confirmation sound. If no confirmation sound is heard send another transmission by pressing and
releasing the tamper switch of the device.
Note: Due to the occurrence of voltage delay in lithium batteries that have been in storage,
the batteries may initially appear to be dead. In this case, leave the unit in Test mode for a few
minutes until the battery voltage level is stabilized.
4. As soon as 'Save?' appears press '√'.

Parameters Setting by the iConnect

As a 2-Way detector, the EL-4607 parameters can be modified only from the iConnect 2 Way.
The parameter settings can be defined as follows:
1. Go to the main menu and select [9]>[1]>[1]>[11] (Programming > Devices > Zones>Sensor Par.)
2. Select Sensitivity and define the parameter accordingly (1 – 100), 1 being the lowest, 100 the
highest.

Wall Mounting

After the detector has been registered mount the detector as follows:
Note: Before permanently mounting the unit, test the transmitter from the exact mounting
position. If necessary, improve the position of the transmitter.
1. Open the detector housing.
2. Remove the PCB by pressing the PCB release tab.
Note: When handling the PCB, do not apply pressure on the antenna
3. Mount the back cover using two screws and replace the PCB. Use ISO 7050 (ST3.5 x
22) or similar countersunk screws so that the screw head will not touch the PCB – see
Figure 2. Note: The upper screw is also used for back tamper. When the detector
is removed from the wall, the screw causes the tamper release to break away
from the back cover and the rear tamper switch is released.
4. Test the detector, making certain that the LED is lit during transmission.
EL-4607
PCB
FIGURE 2
