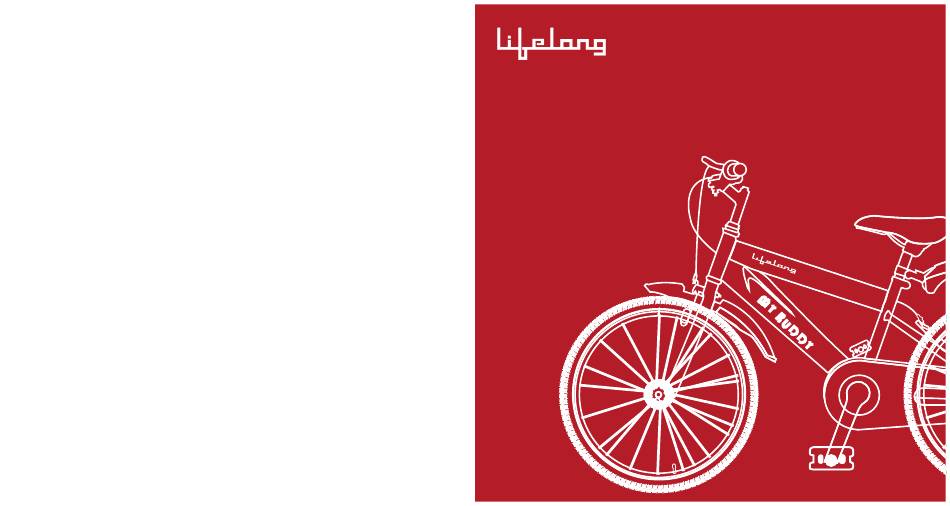

- Page 1 6 M O N T H S W A R R A N T Y Buddy 16T Manufactured for & Marketed by : Lifelong Online Retail Private Limited For queries and complaints: please contact: customercare@lifelongindia.com www.lifelongindiaonline.com...
- Page 2 We strive to enrich the lives of the modern consumer every day. Keeping that in mind, we have offered all our products at a fair and honest price. We hope that this My Buddy 16T Cycle serves you and your family’s needs without any hassles.
- Page 3 SAFE CYCLING AND SAFETY TIPS: Every six months (more frequently if high mileage or subject to heavy use) your bicycle should be professionally checked to ensure that it is in correct and safe Before you ride your bicycle at any time make sure it is in a safe operating condition. working order.
- Page 4 SECURITY PRECAUTIONS AND WARNING: CAUTION: NIGHT RIDING: • Carefully and thoroughly read this manual and follow the instructions. If you intend to ride on public roads, especially in the dark hours you should ensure that • Any major service or adjustments on your bicycle should be carried out by a your cycle is equipped with any legally required parts such as reflectors and lights.
- Page 5 Do not dispose of the carton and packaging until you complete the assembly of the Name Units Qty Lifelong My Buddy 16T bicycle. This can prevent accidentally discarding parts of the bicycle. Assembly Kit (85% Pre - Assembled) Assembly Kit List...
- Page 6 TOOLS REQUIRED: QUILL STYLE STEM: 1. Insert the Stem (1) into the fork and point the Stem (1) towards the front of the bike. 2. Tighten the Stem Bolt (C) just enough to hold it in position. 9 mm Align the stem (1) with the fork and tighten the stem bolt (C) securely. 12 mm 15 mm WARNING: Do not over tighten the stem bolt.
- Page 7 ASSEMBLE THE FRONT WHEEL TO THE FORK: Loosen the Front Brakes: 1. Squeeze the two Brake arms together (A). Lift out the Brake Cable Guide (B) from the Guide Bracket (C). Install the Front Wheel: 2. Set the Front Wheel (3) into the front fork (4) (fig 03). Install wheel retainers (5) making sure the tabs are in the Fork Retainer Holes (C).
- Page 8 SEAT INSTALLATION: TESTING STEM AND HANDLEBAR TIGHTNESS: Attach Seat to Seat Post: To test the tightness of the stem: 1. Loosen nuts on seat clamp (A) and rotate Seat (8) into riding position. Put the seat • Straddle the front wheel between your legs. Try to turn the front wheel by post (9) fully through the seat clamp (A).
- Page 9 TIGHTEN THE QUICK RELEASE LEVER: • Put the seat in the correct position and tighten the Seat Clamp tighter than before. 3. Open and close the Quick Release Lever with one hand while you turn the • Do this test again, until the seat does not move in the Seat Clamp. Adjusting Nut (F) with the other hand (fig 08).
- Page 10 ROUTINE INSTRUCTIONS AND MAINTENANCE : • Make sure the threads of each pedal are fully into the crank arm. Make sure pedals are fully tightened with wrench. 1. Any modification made to the frame, fork, or any other parts can be very unsafe. NOTE: The recommended torque (tightness) for each pedal is 30 ft.-lbs.
- Page 11 GENERAL MAINTENANCE: a. Jump your bicycle. b. Ride over sticks, debris, or other obstacles. WARNING: As with all mechanical components, the bicycle is subjected to wear c. Do bicycle stunts. and high stresses. Different materials and components may react to wear or stress d.
- Page 12 At Lifelong, we believe in fitness for a particular purpose) are excluded to the C. Damages are caused by lightning, abnormal fullest extent permitted by the lass.
