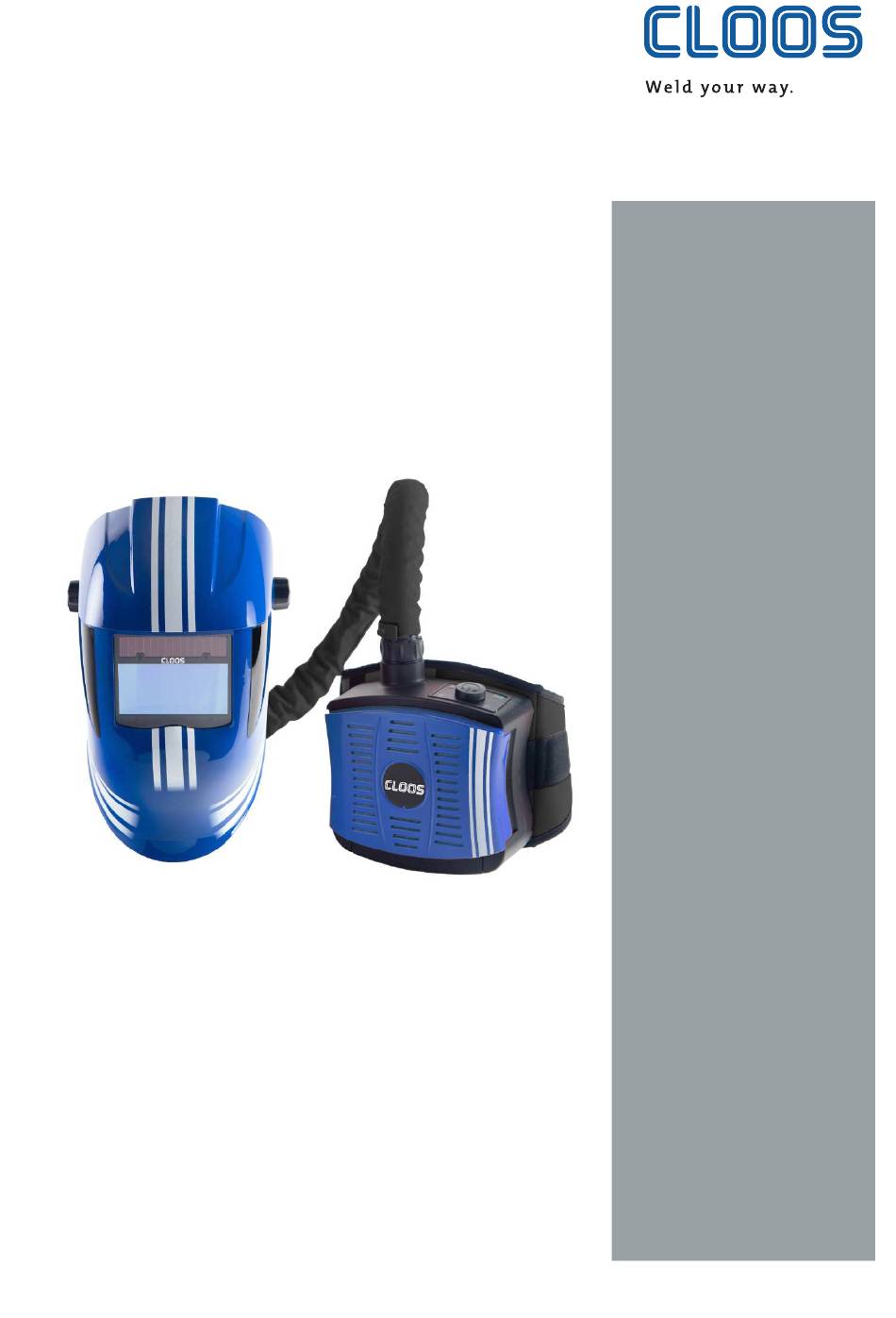

- Page 1 Operating instructions spare parts list Welding accessories CLOOS Arc Flash 4 evo Air Rev.0 Original instructions...
- Page 2 CLOOS ArcFlash4air has been designed and manufactured to comply with EN12941: 1998 as a TH2P R SL device. 8S4275 (Guide to implementing an effective respiratory protective device program), which the user is advised to read, defines an EN12941 TH2P R SL device as offering an Assigned Protection Factor of 20.
-
Page 3: Table Of Contents
Inhalt General information .................4 Operating instructions ..................4 Explanation of symbols ..................4 Limitation of liability ....................5 Copyright ........................5 Safety ......................6 Proper use ........................6 Reasonably foreseeable misuse .................6 Personnel requirements ..................6 Hazards .........................6 Warranty clause ......................7 Warranty ........................8 Technical Data ....................9 Storage and Transportation ................9 Unpacking / Assembly ................10 Unpacking ........................10 Assembly ........................10... -
Page 4: General Information
1. General information 1.1 Operating instructions These operating instructions contain important information for the safe, efficient handling of the device. Compliance with all of the safety instruc- tions and operating instructions contained herein is a pre-condition for safe working with the device. Illustrations in these instructions are intended to provide a basic under- standing, and may differ from the actual design of the device. -
Page 5: Limitation Of Liability
1.3 Limitation of liability All information and notes in this manual were compiled taking into con- sideration the applicable standards and regulations and the state of the art, as well as our many years of knowledge and experience . The manufacturer assumes no liability for damages caused by: • Non-observance of the manual • Improper use • Use of untrained and non-instructed personnel... -
Page 6: Safety
2. Safety 2.1 Proper use The device is only to be used for the following purpose: The device affords reliable protection against particulates and aerosols Risk from improper use! WARNING! Any use of the device other than the intended purpose can lead to hazard- ous situations. -
Page 7: Warranty Clause
Choking hazard WARNING! The user is advised to leave the contaminated area immediately if: • The Manufacturer‘s Minimum Design Flow (MMDF) warning Alarm sounds. • breathing becomes difficult, • dizziness or distress occurs, • any part of the system becomes damaged, • airflow into the Head-Unit decreases or stops, • contaminant can be smelt or tasted inside the Head-Unit, • Materials that may come into contact with the users skin are not known to cause allergie reactions to the majority of individuals but in the unlikely event of a reaction, the user should immediately leave the contaminated area, remove the unit and seek medical advice. 2.5 Warranty clause If any of these conditions are not kept or followed, the warranty is automa- tically invalid. -
Page 8: Warranty
2.6 Warranty The blower unit is guaranteed for a period of 12 months from date of purchase against mechanical or electrical defects. The battery is guaranteed for a period of 6 months from the date of purchase. This guarantee is subject to: • The blower unit has been used solely for the purpose for which it is intended. -
Page 9: Technical Data
3. Technical Data Air flow 180…220 Litres/min Minimum 170 Litres/min Weight with filter 920 g Head size 535…600 mm Type of filter P R S L Type of battery Replaceable and rechargeable Li-Ion 7.4 V/5200 mAh Charging cycles >350 Visual, audible alarm for low battery voltage Visual, audible alarms for insufficient flow rate (below 170Umin) Actual Protection Factor (APF) 20 Noise level... -
Page 10: Unpacking / Assembly
4.2.2 Particulate Filter Use only filters and Pre-Filters as supplied by CLOOS. It should first be ascertained by consulting an occupational hygienist or by calling the ma- nufacturers technical help line as to whether or not the CLOOS Filter will offer suitable protection from the hazard. -
Page 11: Removing The Filter
4.2.3 Removing the Filter Opening the filter cover: Grip the blower and pull up the cover from the right side to the blower. ATTENTION ! lt is strictly forbidden to use any tools to open the filter cover. To remove the filter, pull it off the filter seal while rotating it. Clean the unit from dust. -
Page 12: Before Use
5. Before use 5.1 Inspection before use Each time before starting work check that: • All components are in good condition with no visible damage (Iike holes, tears etc.). Replace any damaged or worn parts. Carefully examine the air hose, seals and the face piece. • There is a good connection between the air hose and the headpiece as well as the blower unit. -
Page 13: Battery Charging
5.3.1 Battery charging 1. Check that the voltage of the electrical power supply is correct. 2. Plug the charger into the socket. 3. Connect the battery to the charger. The socket of the battery is positio- ned on the back side. 4. -
Page 14: Usage
Usage 6. Usage Switch on the unit by pressing the ON/OFF button on the control panel. The airflow can be adjusted by two arrow-buttons from 180 I/min up to 220 I/min. The unit ensures a constant supply of air. The microprocessor inside the unit automatically regulates the motor speed to compensate the filter clogging and the battery state. -
Page 15: Maintenance / Cleaning
7. Maintenance / Cleaning The Blower unit, filter housing and head units must all be regularly clea- ned to keep them in good working order. For single users, the units can all be cleaned with a cloth moistened with lukewarm water and soap. For multiple users, the units should be disinfected when passed from one user to another. -
Page 16: Fault Finding
Fault finding 8. Fault finding If there is a sudden change in air supply while using the blower unit, it is necessary to check the following: • that all parts of the air-supply system are assembled properly, • the battery and its connector, • whether the charger is not faulty or malfunctioning (if so, diodes do not work), • Filters and their clogging,... -
Page 17: List Of Parts
9. List of parts Welding Helmet Arc Flash 4 air 0875006250 Arc Flash 4 air helmet only 0875006251 Arc Flash 4 air Headgear cpl. 0875006252 Arc Flash 4 air face seal 0875006253 Arc Flash 4 air filter complete 0875006254 Arc Flash 4 air hose cover 0875006255 Arc Flash 4 air hose 0875006256... - Page 18 List of parts Arc Flash 4 air belt with lumbar support 0875006262 Arc Flash 4 air ventilation grill 0875006263 Arc Flash 4 air storage bag 0875006264...
- Page 20 Carl Cloos Schweißtechnik GmbH Industriestraße D-35708 Haiger Germany Telefon +49 (0)2773 85-0 Telefax +49 (0)2773 85-275 E-Mail info@cloos.de www.cloos.de www.qineo.de...
