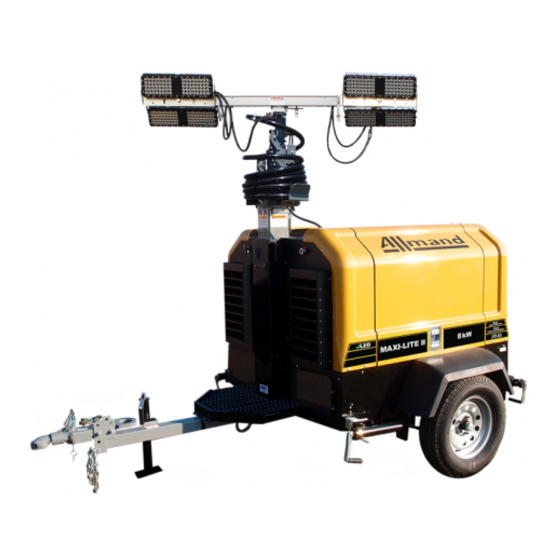

SERIAL NUMBER 10-000001 & 11-000001
Note: ​ S LS is made to save the capacitors and generator. The program ensures the 120
volts are present before the lights are turned on. Primary job is to save the relays.
Kubota 1005 & 1105 Parts:
● Auto Shutdown Module- (102577)
● Hot/Cool Sensor Kubota 905,1005,1105- (340302)
● Hot/Cool Sensor Kubota DeepSea 1 wire- (101069)
● Oil Sensor Kubota 905,1005,1105- (340301)
● Oil Sensor Kubota Deep Sea 1 wire -(101070)
● Fuel Shut Off Solenoid- (920751)
● Electric. Fuel Pump- (103331)
● Radiator Kit (JB)- 102910
● 15 Amp switch (lights)- 106781
● SLS Module- 108053
● Filter Kit ( Air, fuel & Oil)- 108692
Cat 1.1 Parts:
● Auto Shutdown Module- ( 650302)
● Voltage Regulator- (650446)
● 15 Amp switch (lights)- 106781
● SLS Module- 108053
● Filter Kit (Air, Fuel & Oil )-108961
● Temp Sensor- ​ C ontact nearest Cat Dealer
● Oil Pressure Sensor- ​ C ontact nearest Cat
