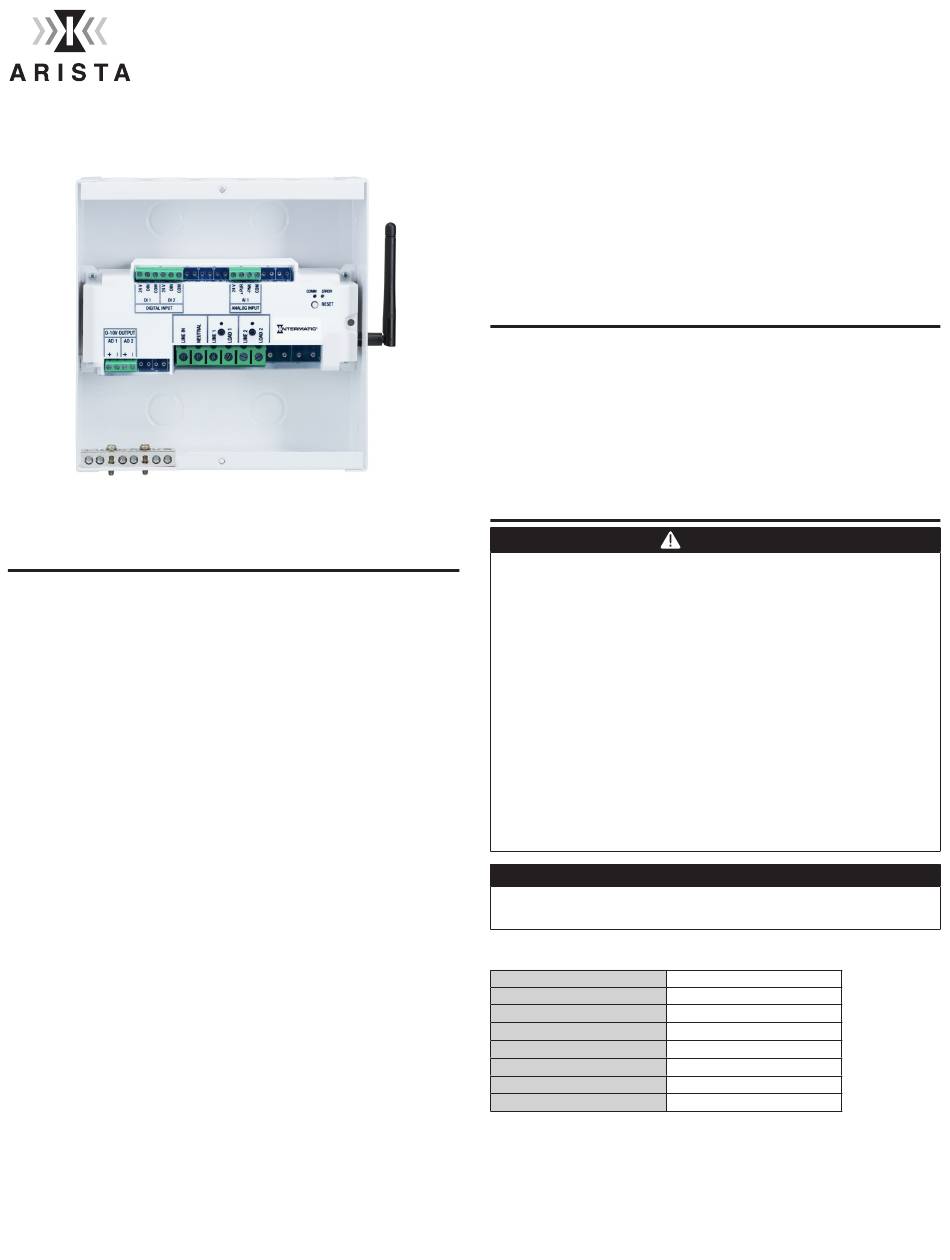

Arista ALC2-R Instructions Manual

ALC2-R
2-Channel 0-10 V Lighting/
Plug Load Controller
COMPLIANCE
This device complies with part 15 of the FCC. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important note: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted.
Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user 's authority to
operate the device.
This Class B digital apparatus complies with ICES-005 of Canada.
OVERVIEW

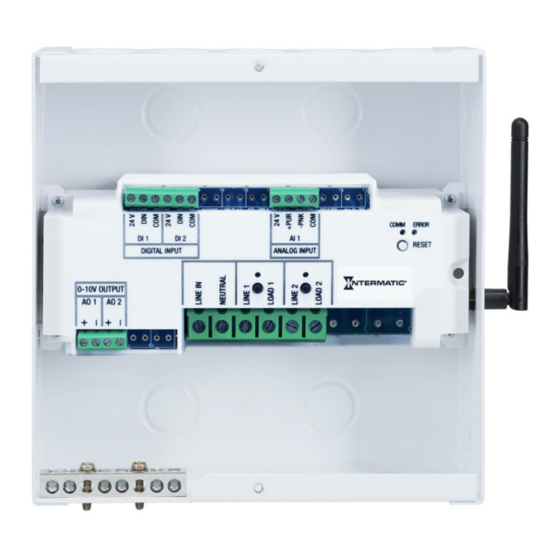

The ALC2-R 2-Channel controller allows for each channel to be
independently controlled via schedule, sensor, or combination of the
technologies to provide even greater energy savings. Each channel can
be configured to work as either 0-10 VDC for dimming applications, or
as ON/OFF for plug load or other non-dimming application needs. These
settings will be available via the ARISTA app.
WARNINGS/SAFETY
Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect
switch(es) before installing or servicing.
• Installation and/or wiring must be in accordance with national
and local electrical code requirements.
• Only use copper conductors rated 105°C minimum
• Battery is not user replaceable.
• Do NOT use timer to control devices that could have dangerous
consequences due to inaccurate timing such as sun lamps,
sauna, heaters and slow cookers.
• Class 1 connections shall be torqued to a minimum of 10.6 lb-in.
• Class 2 connections shall be torqued to 4.5 lb-in.
• Cover should be installed at all times when not servicing.
Dispose of product per local regulations on the disposal of lithium
batteries.
Ratings
1
Operating Voltage
E-Ballast/ Magnetic Ballast
Resistive
General Purpose
Tungsten
Motor
Ambient Operating Temperature
Dimensions
For indoor use only
The ALC2-R is suitable for plenum use.
1
^1 Type 1 action, operating control, PD2 pollution
degree, Impulse voltage 4000V.
Class 1:0-10VDC output = 50mA per channel
Class 2: 24 VDC = 290mA Total
WARNING
NOTICE
120-277 VAC
16 A, 120-277 VAC
20 A, 120-277 VAC
20 A, 120-277 VAC
12.5 A, 277 VAC
1/2 HP, 120 VAC; 1 HP, 240 VAC
0° to 55° C (32° to 131° F)
8.2" H x 8.2" W x 2.8" D
