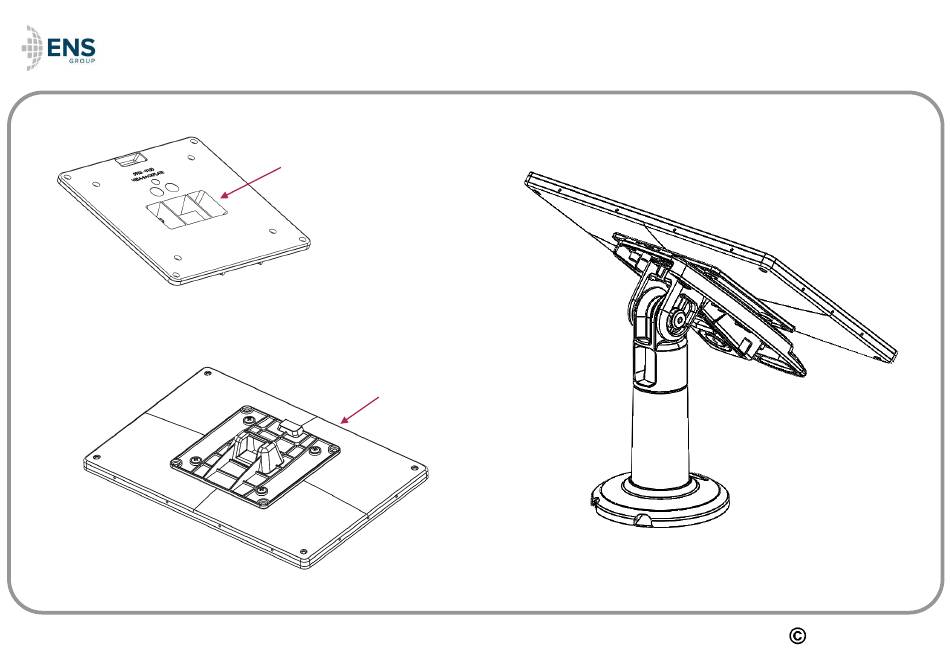

- Page 1 VESA Backplate Quick Installation Guide VESA Backplate (screw or adhesive mounting options) Compatible Device 2021 ENS Group...
- Page 2 VESA Backplate Quick Installation Guide TOOLS PARTS 1 x VESA Backplate (with VHB adhesive Step 1 pad) Align holes of VESA backplate with corresponding mounting holes of device. 4 x M4x8mm Or fix to device at desired orientation with VHB pad...
- Page 3 FlexiPole Compact Quick Installation Guide DRILL TEMPLATE CABLES 0.7 cm 7.5 cm CUSTOMER © 2019 Tailwind Solutions Ltd...
- Page 4 FlexiPole Compact Quick Installation Guide TOOLS PARTS OPTION A Countertop Mount NOTE If using drill template must use qualified personnel CUSTOMER SIDE 5 min OPTION B OPTION A NOTE For wall mount – use drill template Wall Mount supplied. Extra tools will be required. Countertop Mount Use qualified personnel.
