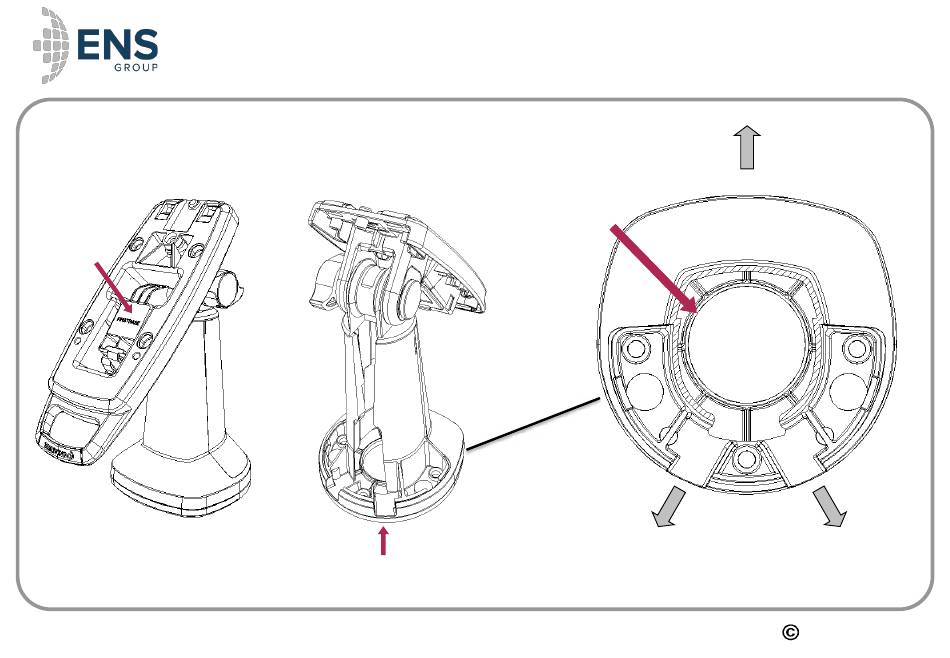

- Page 1 FlexiPole Plus (Quick Release) Tablet Mount Quick Installation Guide - TAB20121 + TAB40121 CUSTOMER CENTER CABLE ROUTING BACKPLATE RELEASE REAR CABLE ROUTING SHOWN WITHOUT ACCESS COVER Revision A 2021 ENS Group...
- Page 2 FlexiPole Plus (Quick Release) Tablet Mount Quick Installation Guide - TAB20121 + TAB40121 TOOLS PARTS Note For screw mount – use stand as a Drill hole to route Phillips screwdriver template. Drill/screwdriver will be Cable thru counter required. Use qualified personnel.
- Page 3 FlexiPole Plus (Quick Release) Tablet Mount Quick Installation Guide - TAB20121 + TAB40121 VESA Backplate (screw or adhesive mounting options) Compatible Device 2021 ENS Group...
- Page 4 FlexiPole Plus (Quick Release) Tablet Mount Quick Installation Guide - TAB20121 + TAB40121 TOOLS PARTS 1 x VESA Backplate (with VHB adhesive Step 1 pad) Align holes of VESA backplate with corresponding mounting holes of device. 4 x M4x8mm Or fix to device at desired orientation with VHB pad screws 2 min...
