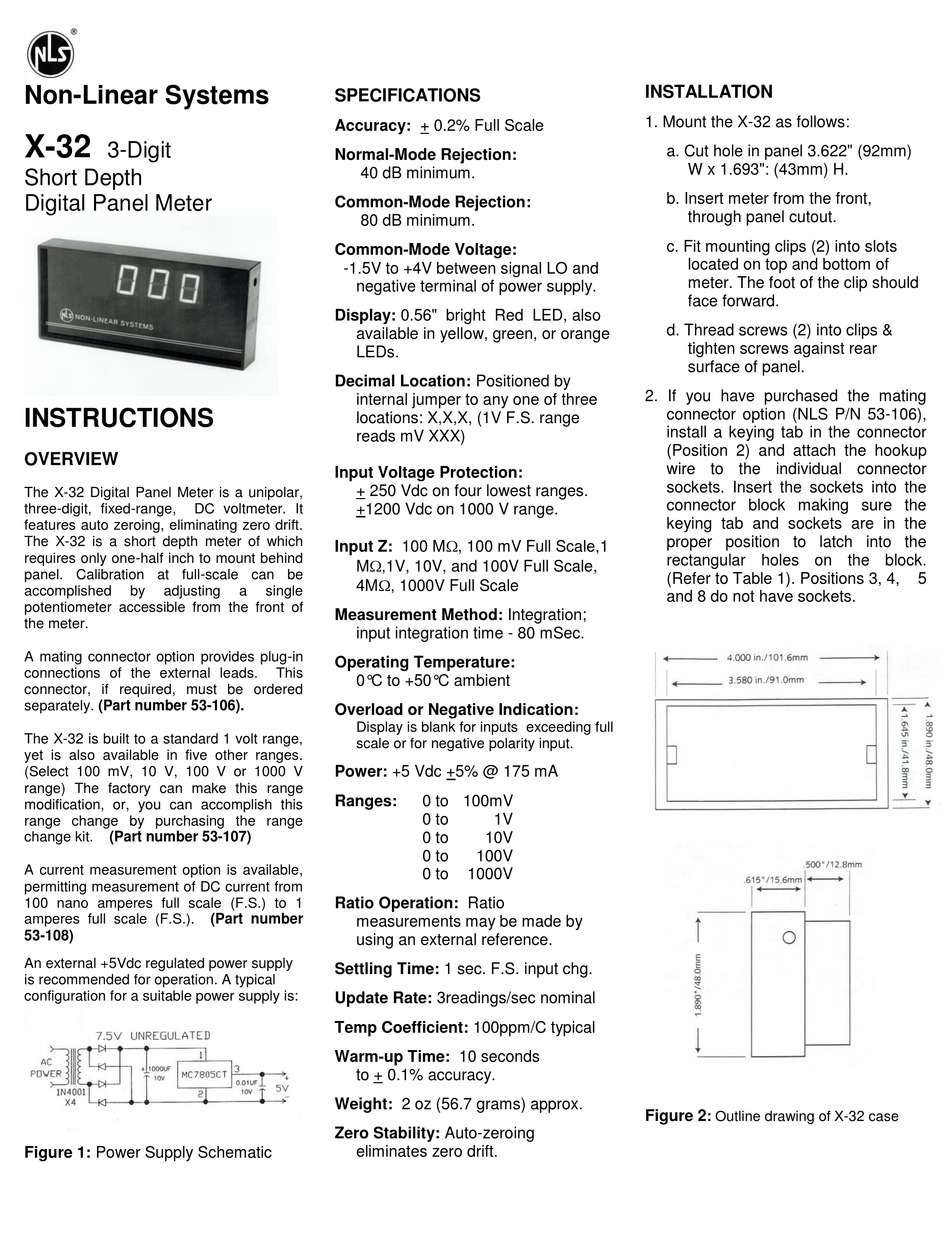

NLS X-32 Instructions

Non-Linear Systems
X-32
3-Digit
Short Depth
Digital Panel Meter
INSTRUCTIONS
OVERVIEW

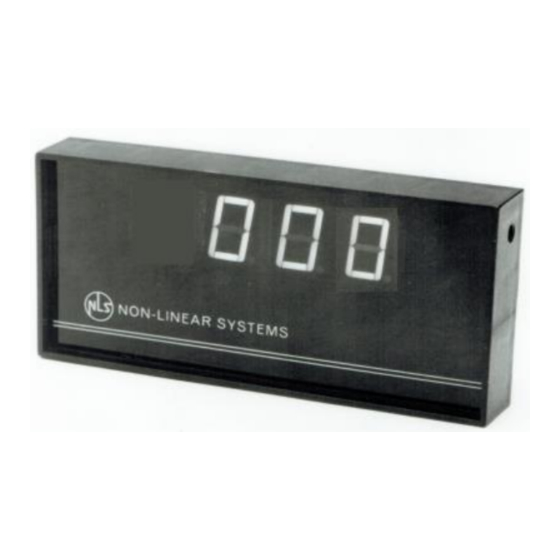

The X-32 Digital Panel Meter is a unipolar,
three-digit, fixed-range, DC voltmeter. It
features auto zeroing, eliminating zero drift.
The X-32 is a short depth meter of which
requires only one-half inch to mount behind
panel. Calibration at full-scale can be
accomplished by adjusting
potentiometer accessible from the front of
the meter.
A mating connector option provides plug-in
connections of the external leads.
connector, if required, must be ordered
separately. (Part number 53-106).
The X-32 is built to a standard 1 volt range,
yet is also available in five other ranges.
(Select 100 mV, 10 V, 100 V or 1000 V
range) The factory can make this range
modification, or, you can accomplish this
range change by purchasing the range
change kit. (Part number 53-107)
A current measurement option is available,
permitting measurement of DC current from
100 nano amperes full scale (F.S.) to 1
amperes full scale (F.S.).
53-108)
An external +5Vdc regulated power supply
is recommended for operation. A typical
configuration for a suitable power supply is:
Figure 1: Power Supply Schematic
SPECIFICATIONS
Accuracy: + 0.2% Full Scale
Normal-Mode Rejection:
40 dB minimum.
Common-Mode Rejection:
80 dB minimum.
Common-Mode Voltage:
-1.5V to +4V between signal LO and
negative terminal of power supply.
Display: 0.56" bright Red LED, also
available in yellow, green, or orange
LEDs.
Decimal Location: Positioned by
internal jumper to any one of three
locations: X,X,X, (1V F.S. range
reads mV XXX)
Input Voltage Protection:
+ 250 Vdc on four lowest ranges.
+1200 Vdc on 1000 V range.
Input Z: 100 M, 100 mV Full Scale,1
M,1V, 10V, and 100V Full Scale,
4M, 1000V Full Scale
a single
Measurement Method: Integration;
input integration time - 80 mSec.
Operating Temperature:
This
0°C to +50°C ambient
Overload or Negative Indication:
Display is blank for inputs exceeding full
scale or for negative polarity input.
Power: +5 Vdc +5% @ 175 mA
Ranges:
Ratio Operation: Ratio
(Part number
measurements may be made by
using an external reference.
Settling Time: 1 sec. F.S. input chg.
Update Rate: 3readings/sec nominal
Temp Coefficient: 100ppm/C typical
Warm-up Time: 10 seconds
to + 0.1% accuracy.
Weight: 2 oz (56.7 grams) approx.
Zero Stability: Auto-zeroing
eliminates zero drift.
0 to 100mV
0 to 1V
0 to 10V
0 to 100V
0 to 1000V
INSTALLATION
1. Mount the X-32 as follows:
a. Cut hole in panel 3.622" (92mm)
W x 1.693": (43mm) H.
b. Insert meter from the front,
through panel cutout.
c. Fit mounting clips (2) into slots
located on top and bottom of
meter. The foot of the clip should
face forward.
d. Thread screws (2) into clips &
tighten screws against rear
surface of panel.
2. If you have purchased the mating
connector option (NLS P/N 53-106),
install a keying tab in the connector
(Position 2) and attach the hookup
wire to the individual connector
sockets. Insert the sockets into the
connector block making sure the
keying tab and sockets are in the
proper position to latch into the
rectangular holes on the block.
(Refer to Table 1). Positions 3, 4,
and 8 do not have sockets.
Figure 2
: Outline drawing of X-32 case
