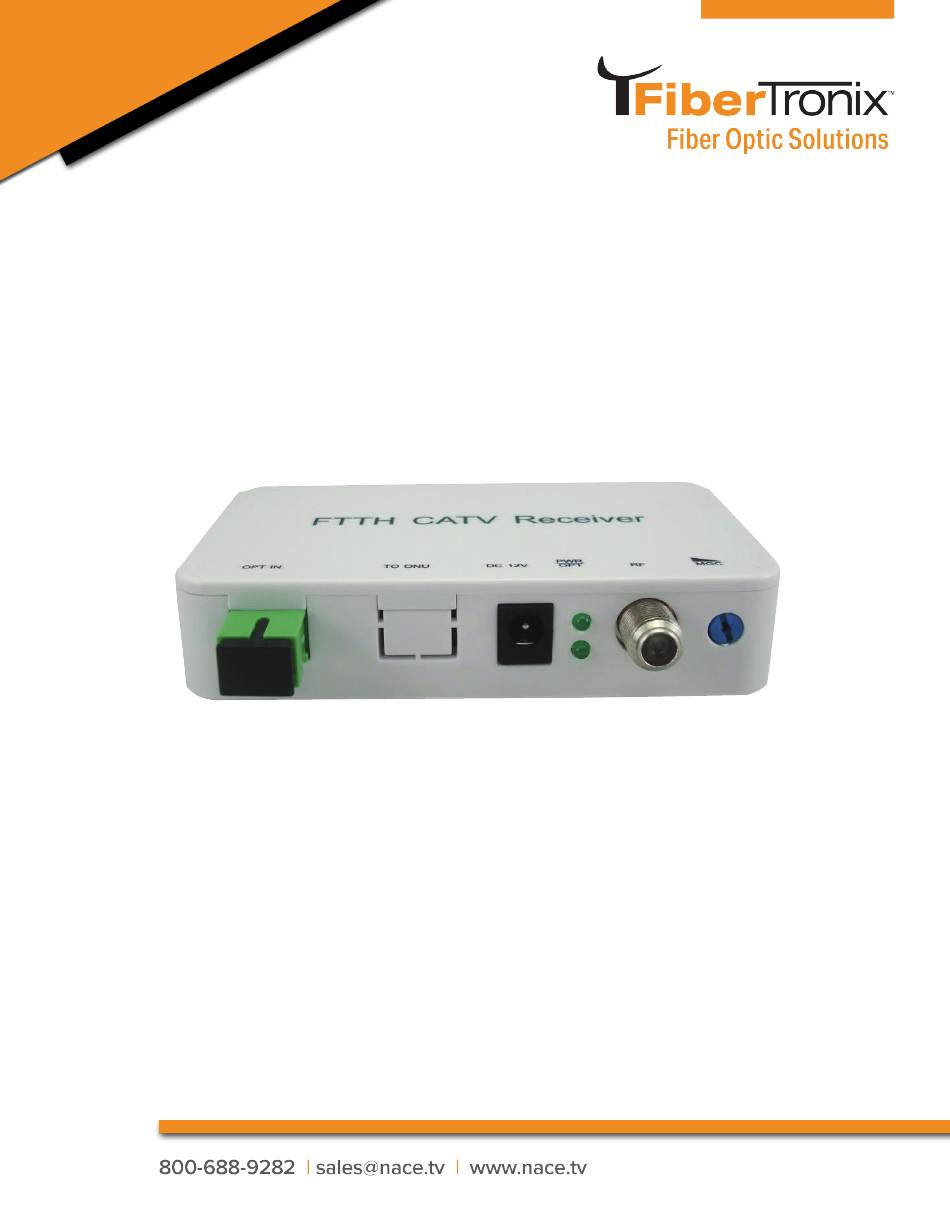

- Page 1 Manual FT-HHRX-1000-SC-MINI-V2 CATV FTTH Receiver User Manual...
-
Page 2: Table Of Contents
FT-HHRX-1000-SC-MINI-V2 Manual Table of Contents Preface ............................3 Chapter 1 Overview ........................3 Chapter 2 Features........................3 Chapter 3 Specifications......................4-5 Chapter 4 Function Guide ......................6 Chapter 5 Installation & Adjustment ................... 6 5.1 Opening the cover ....................6 5.2 Apparatuses & Tools ....................6 5.3 Installation ........................ -
Page 3: Preface
FT-HHRX-1000-SC-MINI-V2 Manual Preface This manual is designed for FT-HHRX-1000-SC-MINI-V2 CATV fiber optic receiver with detailed description of product feature, specification and installation. To install this receiver successfully and use it safely, users must read the manual before installation, and perform the installation and adjustment according to this manual. -
Page 4: Chapter 3 Specifications
FT-HHRX-1000-SC-MINI-V2 Manual Chapter 3 Specifications RF and Optical Characteristics Item Parameter Input CATV Optical Wavelength 1260nm - 1650 nm (1550nm - 1560nm only on Request) Working Optical Power -8dBm - +2dBm (Analog TV RF), -15dBm - +2dBm (DVB-C QAM RF) - Page 5 FT-HHRX-1000-SC-MINI-V2 Manual FT-HHRX-1000-SC-MINI-V2 Optical Receiver Test Results in MER Optical Rx Input Output RF Level MER(dB) +2dBm 79dBμV 38.8 +1dBm 79dBμV 38.8 +0dBm 78dBμV 38.8 -1dBm 78dBμV 38.8 -2dBm 78dBμV 38.7 -3dBm 78dBμV 38.6 -4dBm 78dBμV 38.6 -5dBm 78dBμV 38.5 -6dBm 78dBμV...
-
Page 6: Chapter 4 Function Guide

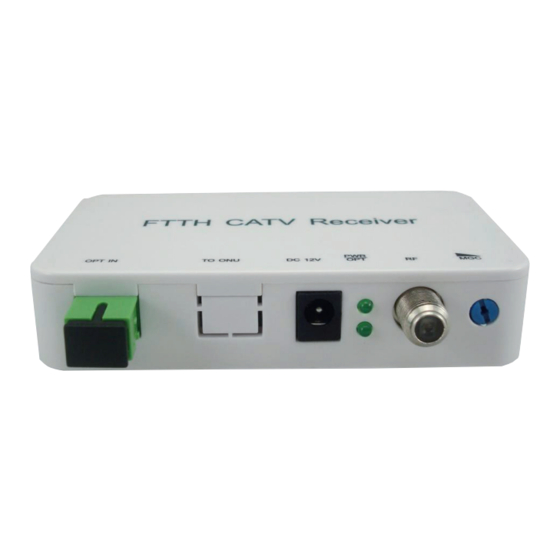

FT-HHRX-1000-SC-MINI-V2 Manual Chapter 4 Function Guide 1. Optical Input SC/APC connector 5. LED for Optical Input 2. Optical connector to ONU (optional) 6. RF Output port 3. DC power adapter 7. MGC Port (optional) 4. LED for Power Supply Function Green LED ON when DC power is ON Green LED ON when optical input power ≥-15dBm... -
Page 7: Installation
5.3.2 Check 12V voltage by digital multimeter in accordance with power requirement. . Then plug in DC power adapter. FT-HHRX-1000-SC-MINI-V2 can be powered by 10-18V DC power adapter. When DC power is ON, the DC power LED shall be Green. -
Page 8: Chapter 6 Cleaning & Maintenance
FT-HHRX-1000-SC-MINI-V2 Manual Chapter 6 Cleaning & Maintenance Each fiber connector may be polluted by dust or dirt in the operation process, which can result in increased optical link loss. If optical receive power and output level of the receiver decline, you should clean and maintain fiber active connector. -
Page 9: Chapter 7 Customer Service/Warranty
FT-HHRX-1000-SC-MINI-V2 Manual Chapter 7 Customer Service In the event that there is a failure with the equipment, please contact North American Cable Equipment. To avoid further damage, repairs should only be done by qualified individuals Notice: Any unauthorized removal of the security seal will void the warranty FIBERTRONIX 1-Year Limited Warranty FIBERTRONIX. - Page 10 FT-HHRX-1000-SC-MINI-V2 Manual The warranties given herein, together with any implied warranties covering the hardware, including any warranties of merchantability or fitness for a particular purpose, are limited in duration to one year from the date of shipment to the Original Purchaser. Jurisdictions vary with regard to the enforceability of warranty limitations, and you should check the laws of your local jurisdiction to find out whether the above limitation applies to you.
