Summary of Contents for DigiTech AR1919

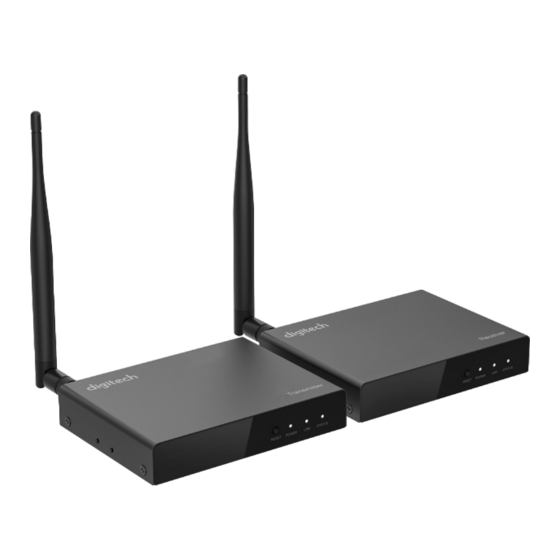

- Page 1 5.8GHz HDMI 1080P Wireless AV Sender Model: AR1919 Quick Start Guide...
-
Page 2: Table Of Contents
Table of Contents Package Contents Ports and Interfaces Connection Diagram First Use LED Status Identification How To Put The Receiver Into Pairing Mode Troubleshooting... -
Page 3: Package Contents
PACKAGE CONTENTS 1x Main Unit Transmitter (TX) 1x IR RX Cable 1x Main Unit Receiver (RX) 1x IR TX Cable 4x Mounting Accessories 1x 3.5mm Male to Male Cable (for pairing and re-pairing units) 2x Antennas (same antenna for transmitter and receiver) 2x Power Adapter (power supplies for transmitter and receiver) 1x Quick Start Guide... -
Page 4: Ports And Interfaces
PORTS AND INTERFACES Transmitter Receiver HDMI In: Connect to Input Sources via HDMI Male Input Port HDMI Out: Connect to Output Devices via HDMI Male Output Port DC 5V: DC 5V In Loop out: HDMI Loop Out Port for Local View Reset: Hold for 10 seconds to reset, short click to match the Transmitter &... -
Page 5: Connection Diagram
CONNECTION DIAGRAM 1 to 1 Transmitter Receiver 1 to 4 Receiver Transmitter... -
Page 6: First Use
FIRST USE 01 Install antennas for Transmitter 02 Connect the Receiver to your & Receiver. output display through the “HDMI OUT” port. 03 Connect the Transmitter to 04 Connect power to Transmitter your media output device and Receiver separately. through the “HDMI IN” port. - Page 7 FIRST USE (continued) 05 After 10 seconds you will see a 06 After 40 seconds you will see a loading screen. screen showing “Searching TX”. 07 Once connected you will see the screen from the output device. (Screen picture for example only)
-
Page 8: Led Status Identification
LED STATUS IDENTIFICATION Paired Lost / No Match (PtMP) Receiver Power & Link LED is solid, Status LED off Transmitter Status LED flash slowly Long press “Reset” for more than 10 seconds will cause the device configuration to be lost and require units to be re-paired. Normal Mode Receiver Power LED is solid, Status LED flash frequency is faster than Link LED... -
Page 9: How To Put The Receiver Into Pairing Mode
HOW TO PUT THE RECEIVER INTO PAIRING MODE After the Receiver is reset or when you have purchased two or more receivers and need to pair them to the transmitter. 01 Make sure the Transmitter and 02 Open 3.5mm male to male cable. Receiver are not powered on. - Page 10 HOW TO PUT THE RECEIVER INTO PAIRING MODE (continued) 05 After 10 seconds you will see a 06 After 40 seconds you will see a loading screen. screen showing “Searching TX”. Receiver Transmitter 07 When the display screen shows 07 Pairing successful. “SearchingTX”, short press the (Screen picture for example only) “Reset”...
-
Page 11: Troubleshooting
TROUBLESHOOTING Problem Cause Solution No picture out Maybe the Please follow the operation steps: after correct Transmitter and 1. Please connect the Transmitter and connection at one receiver have not receiver with the 3.5mm male to male, room yet matched the connect Transmitter with input device, connection. - Page 12 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
