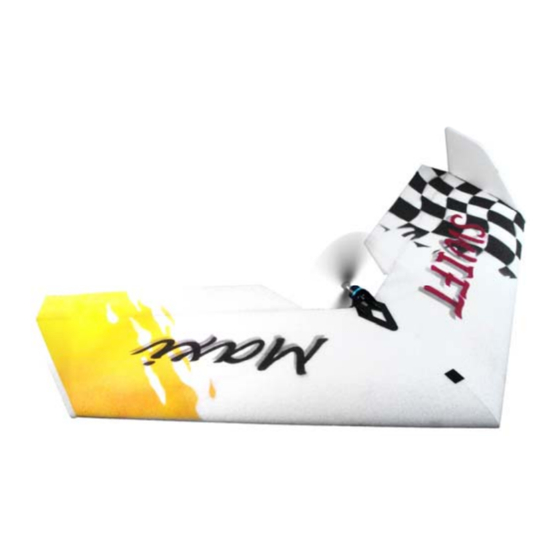

SWIFT MAXI
Stavební návod
Assembly Instructions
Technical data
Wingspan:
Total weight:
Wing surface:
Motor:
Power source:
Controlled functions:
1380 mm
900-1200 g
2
56 dm
EM 400/ EM 540
3S Li-Pol 2400 / 3S2P Li-Pol 2400
Elevator, Aileron, Throttle,
Elevon mix needed
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWIFT MAXI and is the answer not in the manual?

Questions and answers

Related Manuals for MS Composit SWIFT MAXI

Summary of Contents for MS Composit SWIFT MAXI

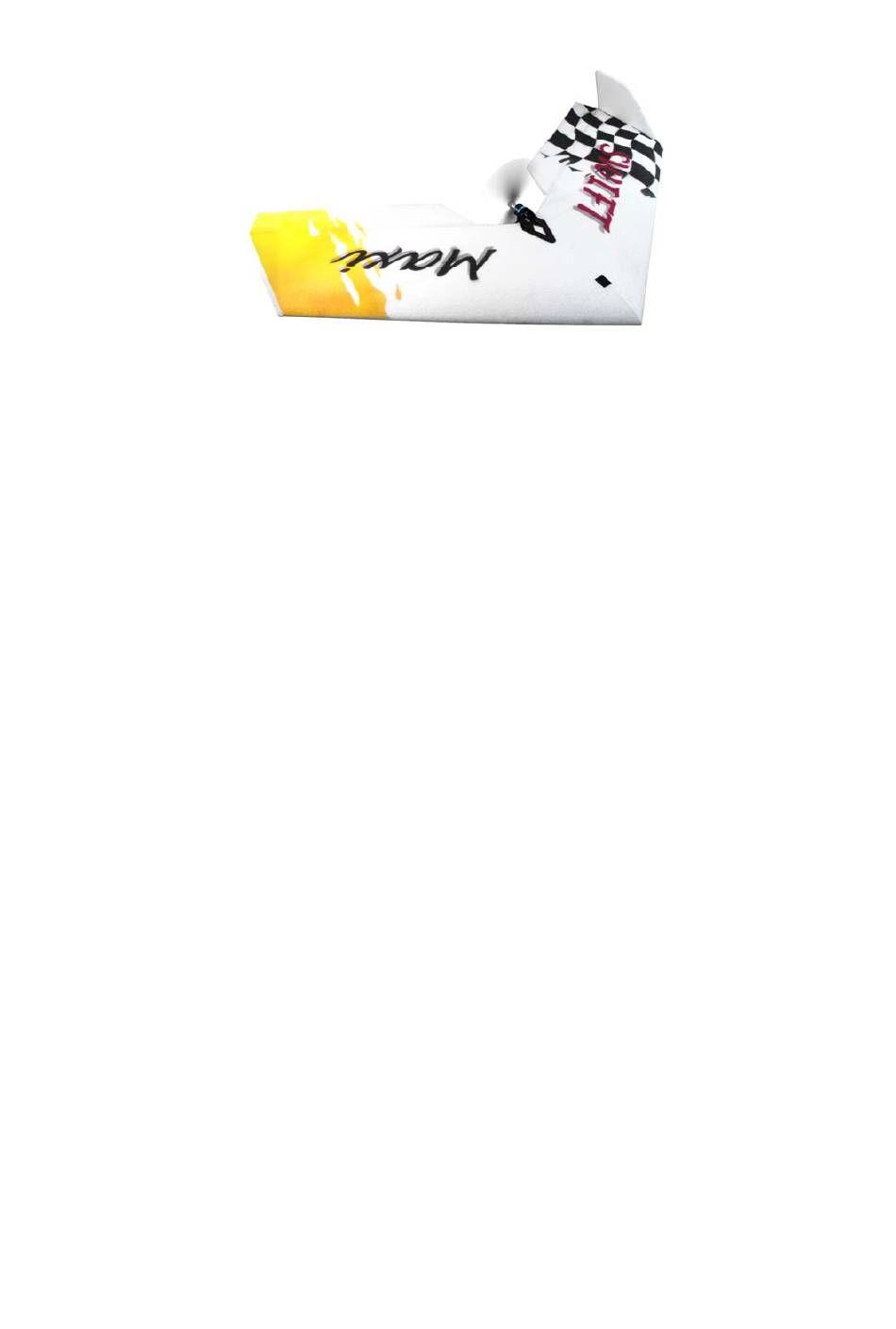

  • Page 1 SWIFT MAXI Stavební návod Assembly Instructions Technical data Wingspan: 1380 mm Total weight: 900-1200 g Wing surface: 56 dm Motor: EM 400/ EM 540 Power source: 3S Li-Pol 2400 / 3S2P Li-Pol 2400 Controlled functions: Elevator, Aileron, Throttle, Elevon mix needed...
  • Page 2 Accessories RC equipment Transmitter – three channels transmitter needed (at least). The transmitter must provide the delta mixing function for elevons. Recommended servo – 15-20 g, for example MS9380, Hitec HS81 Receiver – choose one of the small ones, for example MS-002 or MS-003. Power source –...
  • Page 3 Power unit instalation: Power unit is delivered separately with two follow options: 1. EM 400 – recommended with 3xLi- pol 2400 mAh , propeller 9x4.7, max load current around 17A 2. EM 540 – recomended with 3S2P Li- pol 2400 mAh, propeller 10x4.7, max load current around 28 A Before gluing of the motor bed, check correct placement on the wing by putting the motor in...
  • Page 4 Reducer Assembly: Put the motor on the motor bed, and screw it with two M3 screws – motor is mounted in oposite position. For mount of prop use set for push prop - oposite mount. Pushrods. Use the enclosed string to make the pushrods.
