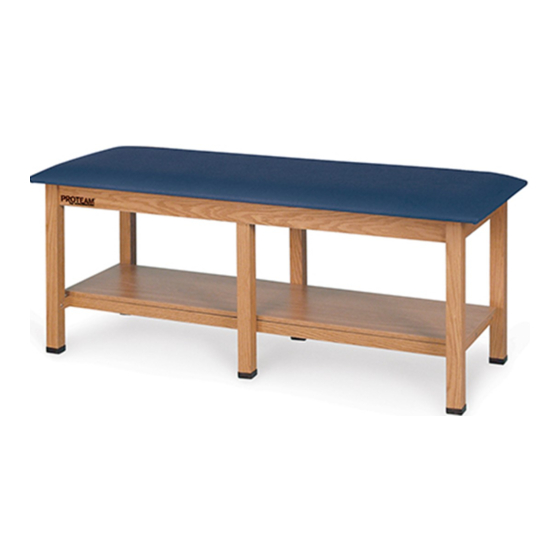

Hausmann PROTEAM A9087 Installation & Operation Instructions

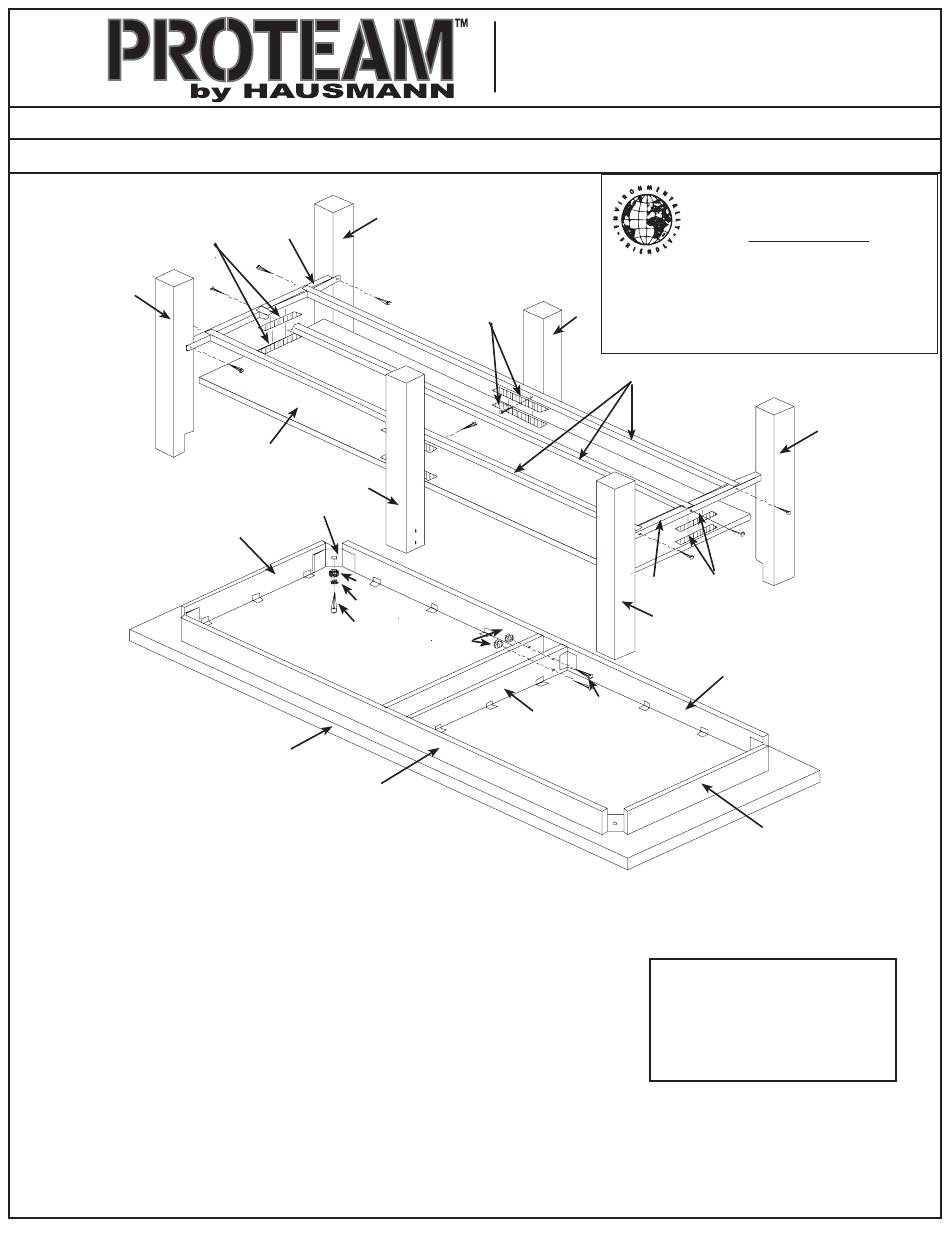

Illustration 1
Velcro
A
PARTS LIST
PART QTY
A 4
B 12
C 3
D 2
E 1
F 2
G 2
H 2
I 4
J 4
K 1
L 4
M 2
N 4
O 4
P 4
rev. 07.23.08 cjr
Installation/Operation Instructions
Model A9087 - Treatment Table
F
B
B
B
E
D
L
M
O
P
N
K
G
PART # DESCRIPTION
A9087-001 Corner Leg (29" high)
A9087-002 Flat Head Allen Head Cap Screw #12 x 2" lg
A9087-003 Long Stretcher
A9087-004 Center Leg (29" high)
A9087-005 Long Shelf
A9087-006 Short Stretcher
A9087-007 Long Apron
A9087-008 Center Apron
A9087-009 1/4 - 20unc x 4 1/2" lg Carriage Bolt
A9087-010 1/4" Kep Nut
A9087-011 Upholstered Table Top (30" x 78")
A9087-012 Leg Plate
A9087-013 Short Apron
A9087-014HB Hex Bolt 4 1/2" lg x 5/16" - 18
A9087-015 5/16" Flat Washer
A9087-016 5/16" Split Washer
