Operation Manual
Electric Cable Winch
61000–61002, 61769

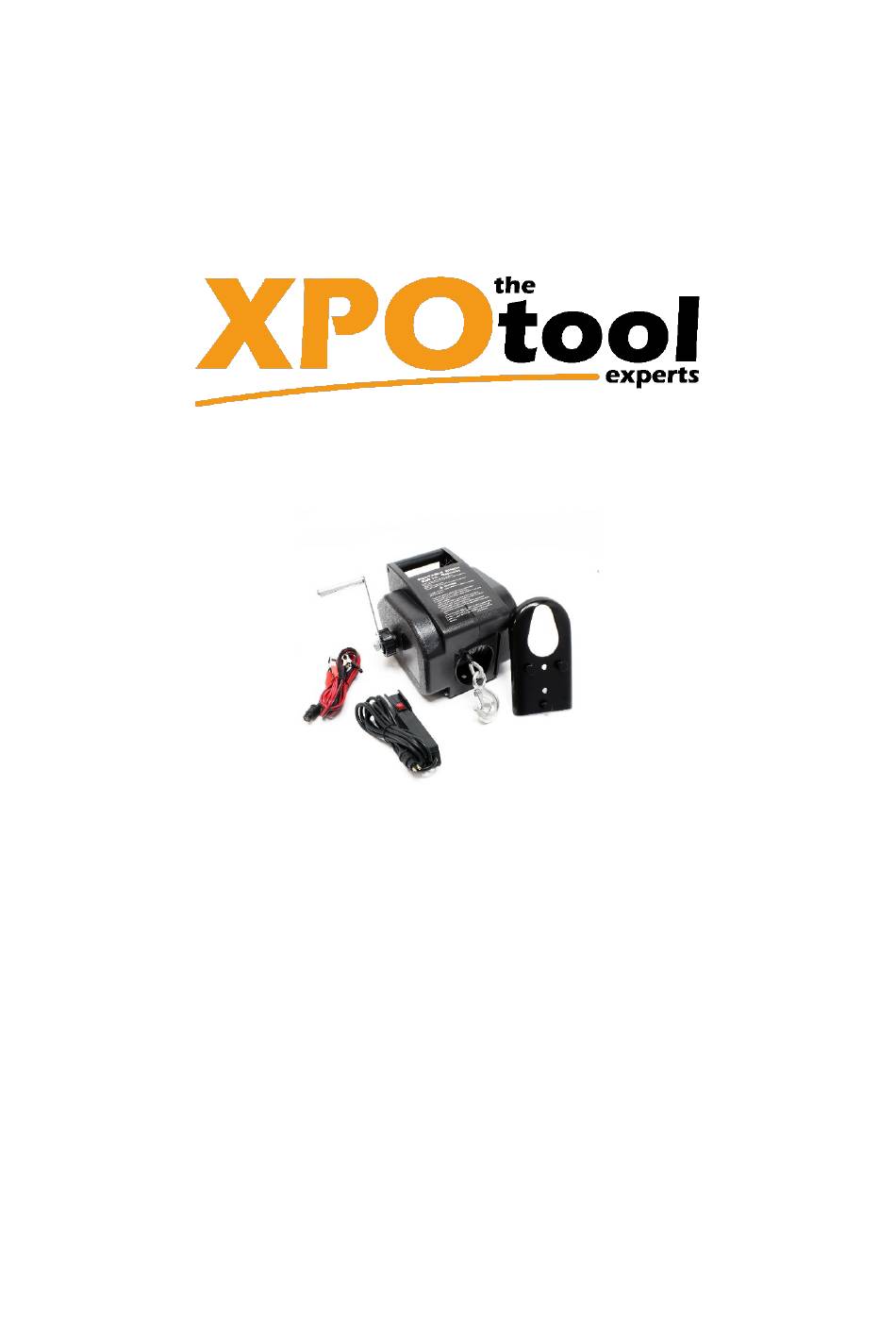

Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for XPOtool 61000
Summary of Contents for XPOtool 61000
- Page 1 Operation Manual Electric Cable Winch 61000–61002, 61769 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany E-mail: service@wiltec.info Phone: +49 2403 55592–0 Fax: (+49 2403 55592–15) https://www.XPOtool.com Item 61000–61002, 61769 Page 2 The Tool Experts 2022-1...
- Page 3 (3500 lbs) and 1570 kg winches (3461 lbs) have a 10.5 m aircraft cable with attached hook. • Mounting bracket for trailer hitch • Emergency crank handle and adjustable clutch https://www.XPOtool.com Item 61000–61002, 61769 Page 3 The Tool Experts 2022-1...
- Page 4 Inspect all moving parts and mounting bolts prior to use. The control handle and power switch must be kept clean, dry, and free from oil and grease at all times. https://www.XPOtool.com Item 61000–61002, 61769 Page 4 The Tool Experts 2022-1...
-
Page 5: Installation
Connect the red clamp handle to the positive (+/red) terminal of the battery. Note: Make sure to use a 12 V car battery or equivalent in good condition. https://www.XPOtool.com Item 61000–61002, 61769 Page 5 The Tool Experts 2022-1... - Page 6 2. Slide the heads of the plate studs into the keyhole slots on the back of the winch. 3. Attach the winch/adapter plate assembly to your trailer hitch by inserting the trailer hitch ball through the shaped hole in the adapter plate. https://www.XPOtool.com Item 61000–61002, 61769 Page 6 The Tool Experts 2022-1...
- Page 7 2722 kg (6000 lbs) is reduced to 499 kg (1100 lbs) on a level ground with the inclination being 45°. Please refer to the following diagrams for estimated pulling capacities (rolling weight) on different inclinations. https://www.XPOtool.com Item 61000–61002, 61769 Page 7 The Tool Experts 2022-1...
- Page 8 Weight (lbs.) Degree of incline Maximum (rolling) weight capacities on an incline (approximately) Weight (lbs.) Degree of incline Figure F https://www.XPOtool.com Item 61000–61002, 61769 Page 8 The Tool Experts 2022-1...
- Page 9 Occasionally lubricate the cable with light oil. 2. Grease the gears every 6 months. To do this, remove the clutch knob and separate the left and right housing. Use any good-quality waterproof grease. https://www.XPOtool.com Item 61000–61002, 61769 Page 9 The Tool Experts 2022-1...
- Page 10 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61000–61002, 61769 Page 10 The Tool Experts 2022-1...
