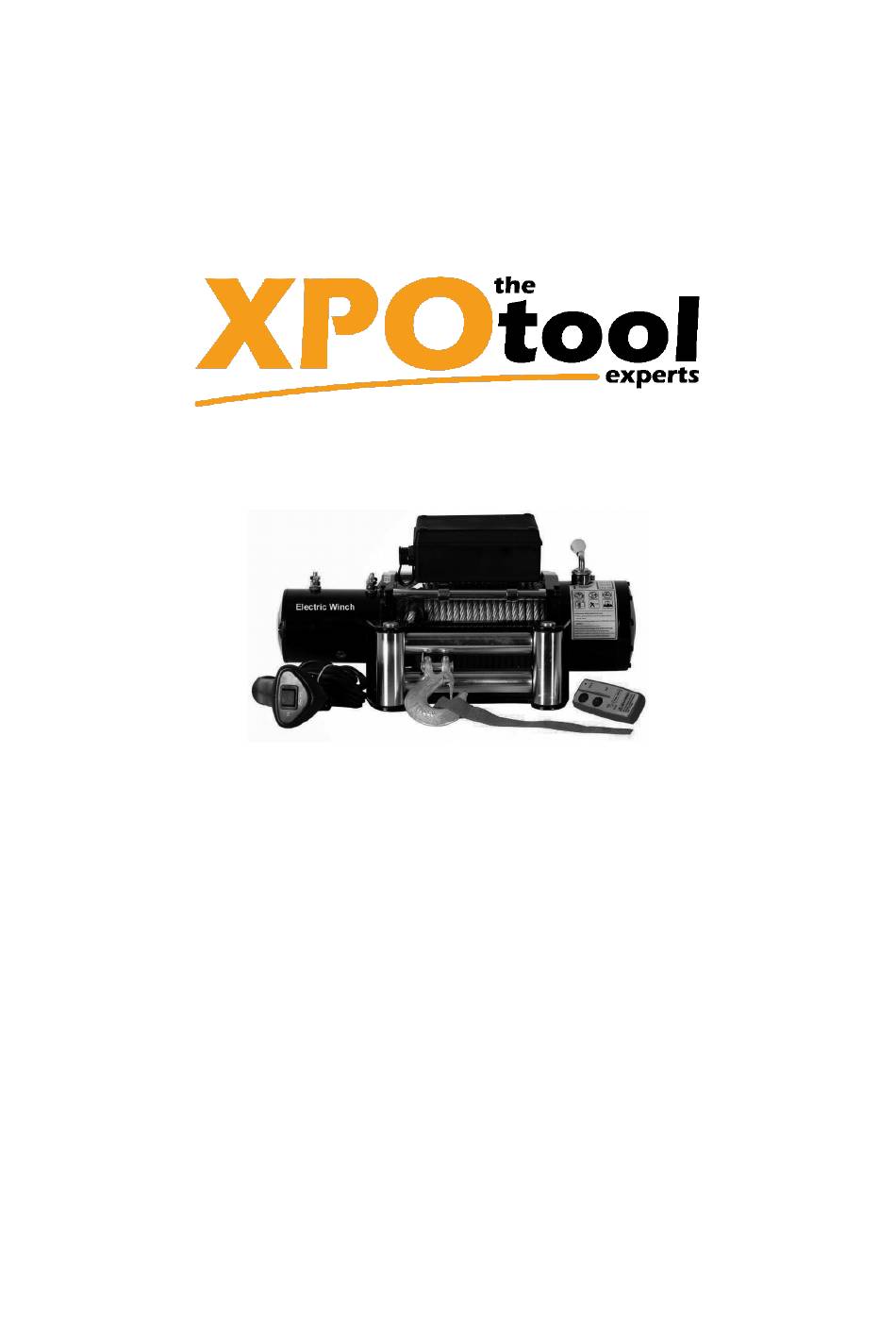

Operation Manual
Electric Winch
62973
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 62973
Summary of Contents for XPOtool 62973
- Page 1 Operation Manual Electric Winch 62973 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignific - antly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our cus - tomer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel:+49 2403 55592-0 Fax: +49 2403 55592-15 https://www.XPOtool.com Item 62973 Page 2 The Tool Experts 2021-1...
- Page 3 Safety while repairing the device Use only identical spare parts when repairing the winch or having it repaired. Otherwise, the user could be seriously injured. https://www.XPOtool.com Item 62973 Page 3 The Tool Experts 2021-1...
- Page 4 230 kg. As a result, the rope is slightly tensioned and stretched, which enables it to be wound neatly on the drum. Otherwise, the rope could be damaged, which is detrimental to its service life. https://www.XPOtool.com Item 62973 Page 4 The Tool Experts 2021-1...
-
Page 5: Installation
Fasten the winch to the mounting plate with the supplied ⅜×1¼” UNC stainless steel bolts and spring washers. The roller fairlead must be attached in such a way that the rope is pulled evenly onto the drum. https://www.XPOtool.com Item 62973 Page 5 The Tool Experts 2021-1... - Page 6 (–) to the negative pole (–) of the bat- tery. 6. Connect the long red positive cable (+) to the positive terminal (+) of the battery. https://www.XPOtool.com Item 62973 Page 6 The Tool Experts 2021-1...
- Page 7 Installing the wireless remote switch https://www.XPOtool.com Item 62973 Page 7 The Tool Experts 2021-1...
- Page 8 5. To begin, start the engine, put it in neutral, and allow the engine to idle. 6. Set the remote control to “IN” or “OUT” until the vehicle is recovered. Check the winch regu - larly to make sure that the rope is rolled up evenly. https://www.XPOtool.com Item 62973 Page 8 The Tool Experts 2021-1...
-
Page 9: Troubleshooting Chart
Insufficient amperage or voltage. Clean, tighten or replace con- nection. Motor is running, yet cable drum Clutch not engaged Set clutch to “IN”; if that does not not. help, call a technician to check and repair it. https://www.XPOtool.com Item 62973 Page 9 The Tool Experts 2021-1... -
Page 10: Technical Specifications
4018 (8840 lbs) 21.0 (71 ft) 3368 (7410 lbs) 26.0 (85 ft) Caution: The winch should be equipped with an additional emergency switch. The winch should be disconnected from the power when not in use. https://www.XPOtool.com Item 62973 Page 10 The Tool Experts 2021-1... - Page 11 12 Link screw M8×25 33 Mounting bolt assembly of roller fairlead 1 13 Motor base 34 Switch assembly 14 Nylon bearing 35 Link screw M4×15 ⌀ 15 Coupling joint 36 Lock washer 4 https://www.XPOtool.com Item 62973 Page 11 The Tool Experts 2021-1...
- Page 12 38 Motor box tube 18 Mounting bolt assembly 39 Lock washer 8 ⌀ 19 Outer spline 40 Transmission shaft 20 Gear carrier assembly output 41 Wireless remote switch 21 Gear carrier assy intermediate https://www.XPOtool.com Item 62973 Page 12 The Tool Experts 2021-1...
- Page 13 D-52249 Eschweiler Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 62973 Page 13 The Tool Experts 2021-1...
